Model # FFRH2522R2E0 Official Frigidaire room air conditioner

Here are the diagrams and repair parts for Official Frigidaire FFRH2522R2E0 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

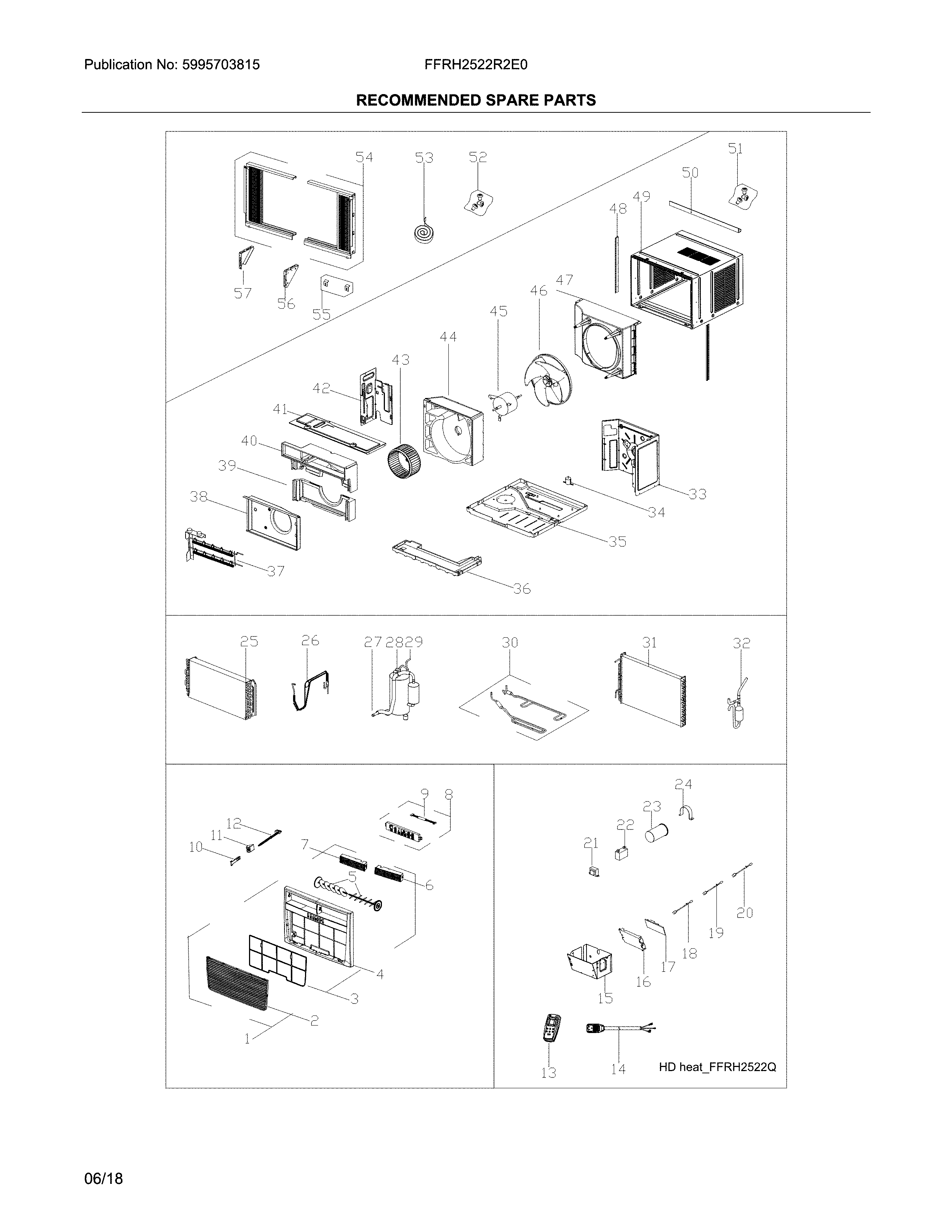

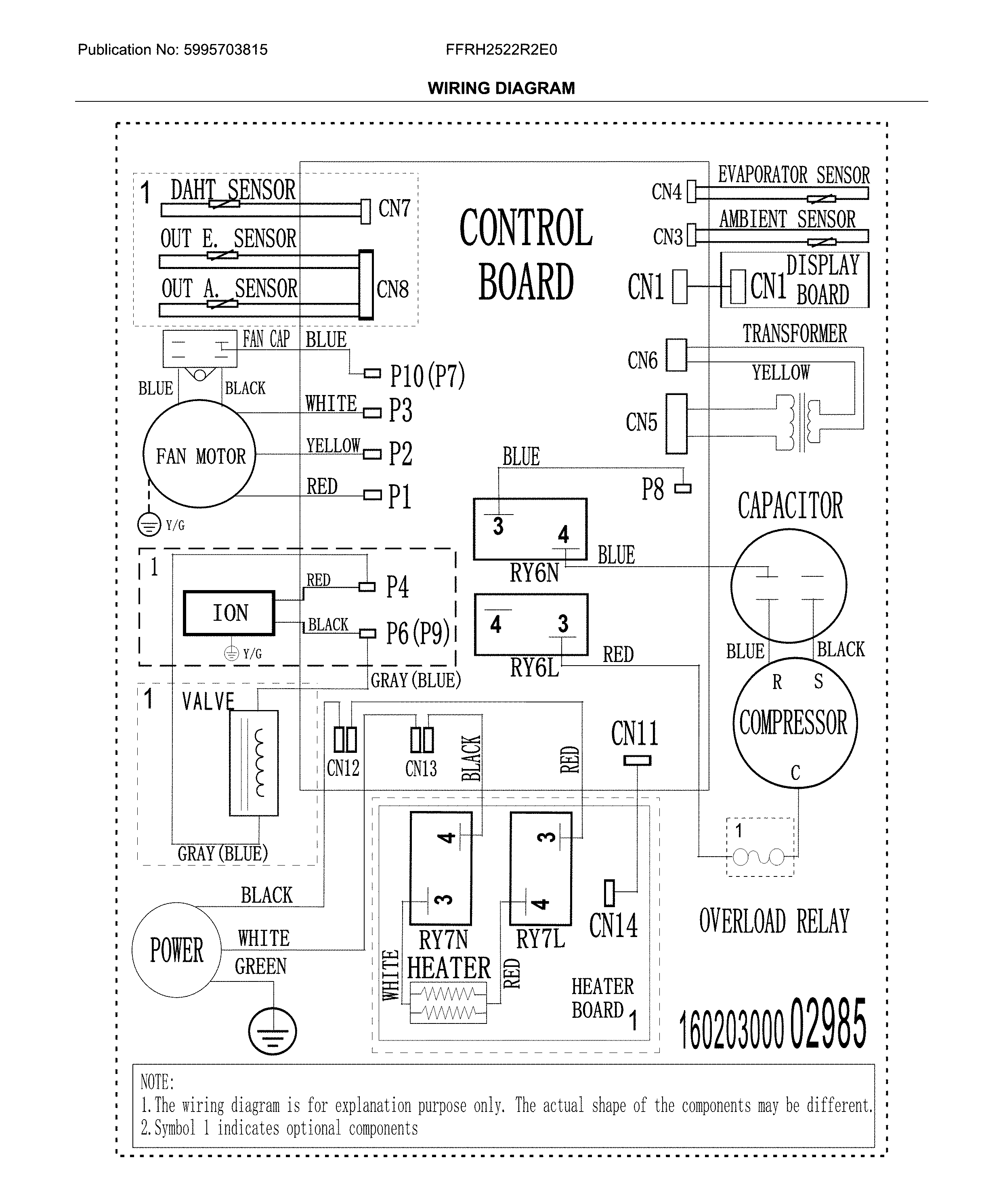

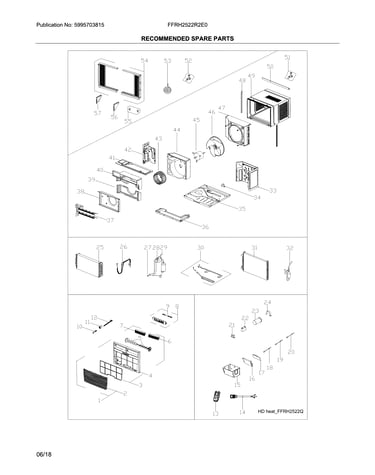

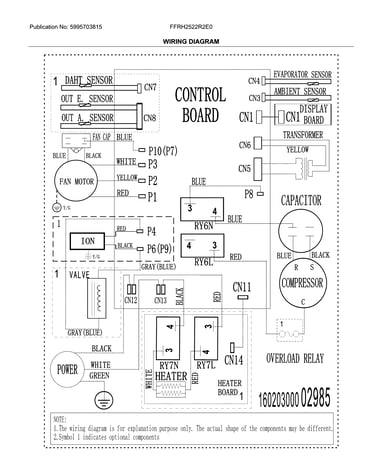

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 58 parts  |

Room Air Conditioner Filter Dryer 5304476257
#32

Unit diagram

Room air conditioner filter dryer

Part #5304476257

In Stock
Room Air Conditioner User Interface Board 5304496261
#8

Unit diagram

Room air conditioner user interface board

Part #5304496261

This item is not returnable
$114.79
9% OFF Phone Price : $126.79
In Stock
Room Air Conditioner Heater Assembly 5304472338
#37

Unit diagram

Room air conditioner heater assembly

Part #5304472338

$354.99
$12.00 OFF Phone Price : $366.99
In Stock
Capillary Tube 5304512403
#26

Unit diagram

Capillary tube

Part #5304512403

In Stock
Bulkhead 5304495039
#42

Unit diagram

Bulkhead

Part #5304495039

In Stock
Control Box 5304512399
#15

Unit diagram

Control box

Part #5304512399

In Stock
Holder,mounting Plate ,control 5304512372
#16

Unit diagram

Holder,mounting plate ,control

Part #5304512372

In Stock
Louver 5304482934
#6

Unit diagram

Louver

Part #5304482934

In Stock
Louver 5304477146
#5

Unit diagram

Louver

Part #5304477146

In Stock
Tray 5304472343
#36

Unit diagram

Tray

Part #5304472343

In Stock
