Model # 917351450 Official Craftsman chainsaw

Here are the diagrams and repair parts for Official Craftsman 917351450 chainsaw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

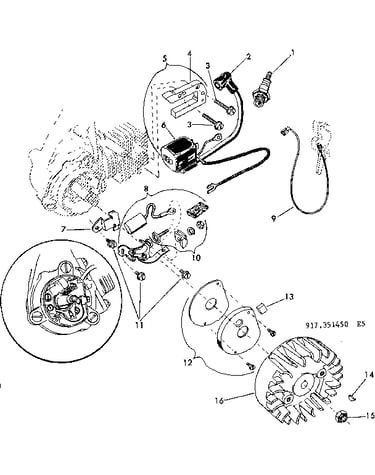

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 147 parts  |
File Holder 1669H
#6

Optional accessories diagram

File holder

Part #1669H

The manufacturer no longer makes this part, and there's no substitute part

Hub W Washer 632A133
#24

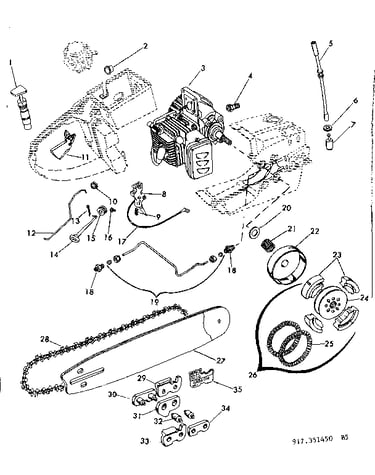

Chain/bar and oil/fuel parts diagram

Hub w washer

Part #632A133

The manufacturer no longer makes this part, and there's no substitute part

Start Pulley 9171H
#6

Replacement parts diagram

Start pulley

Part #9171H

The manufacturer no longer makes this part, and there's no substitute part

Chain 642A41
#28

Chain/bar and oil/fuel parts diagram

Chain

Part #642A41

The manufacturer no longer makes this part, and there's no substitute part

Washer Retainer 9081H
#27

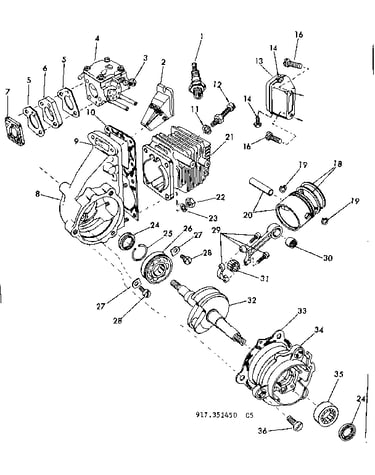

Carburetor diagram

Washer retainer

Part #9081H

The manufacturer no longer makes this part, and there's no substitute part

Heat Barrier 9097H
#6

Carburetor diagram

Heat barrier

Part #9097H

The manufacturer no longer makes this part, and there's no substitute part

File 1668H
#7

Optional accessories diagram

File

Part #1668H

The manufacturer no longer makes this part, and there's no substitute part

Oil Filter 5516H1
#16

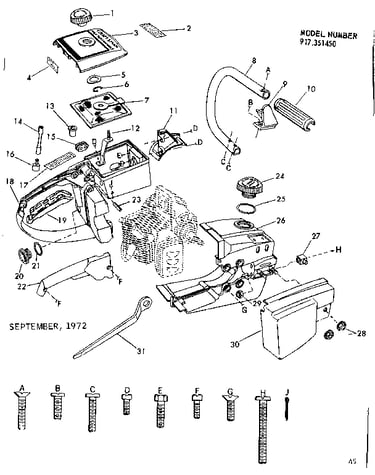

Main frame diagram

Oil filter

Part #5516H1

The manufacturer no longer makes this part, and there's no substitute part

Self-tapping Screw 5530P
#32D

Main frame diagram

Self-tapping screw

Part #5530P

The manufacturer no longer makes this part, and there's no substitute part

Cap O-ring 7713H
#21

Main frame diagram

Cap o-ring

Part #7713H

The manufacturer no longer makes this part, and there's no substitute part
