Model # CRC18T2-P1304401M Official Amana microwave

Here are the diagrams and repair parts for Official Amana CRC18T2-P1304401M microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

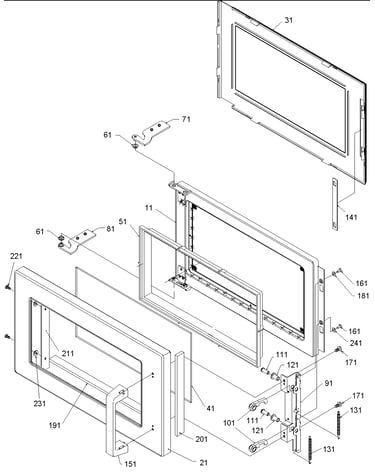

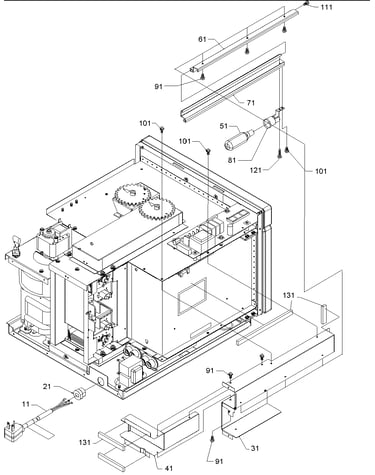

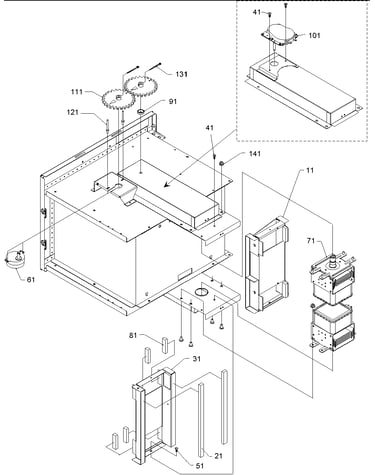

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 91 parts  |
Sealer M0275598
#161

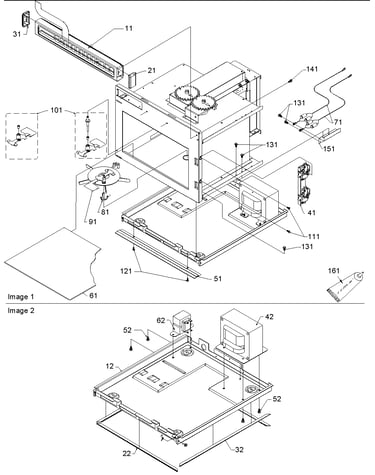

Control/antenna & basepan assembly diagram

Sealer

Part #M0275598

Replaced by #W10841140

?
Manufacturer substitution
This part replaces M0275598. Substitute parts can look different from the original.
BEST SELLER
$14.99 |
12% OFF Phone Price : $16.99
In Stock
Transformer C8901509
#62

Control/antenna & basepan assembly diagram

Transformer

Part #C8901509

Replaced by #C8901509

?
Manufacturer substitution
This part replaces C8901509. Substitute parts can look different from the original.
$47.20
In Stock
Glass Tray R0150144
#61

Control/antenna & basepan assembly diagram

Glass tray

Part #R0150144

Replaced by #R0150144

?
Manufacturer substitution
This part replaces R0150144. Substitute parts can look different from the original.
$41.19 |
13% OFF Phone Price : $47.19
In Stock
Capacitor D8547929
#61

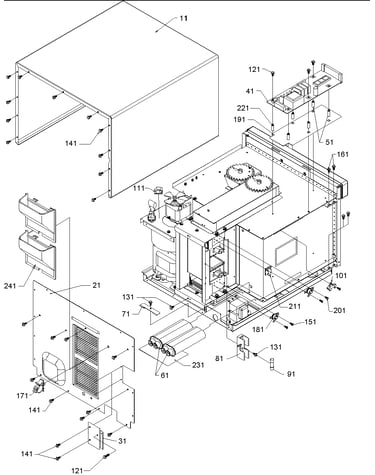

Electrical components diagram

Capacitor

Part #D8547929

Replaced by #59001649

?
Manufacturer substitution
This part replaces D8547929. Substitute parts can look different from the original.
$31.49
In Stock
Clip M0118901
#82

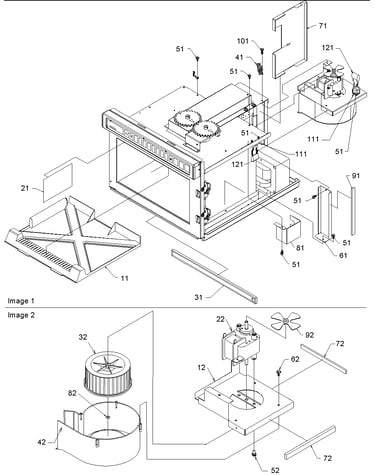

Splash shield/blower diagram

Clip

Part #M0118901

The manufacturer no longer makes this part, and there's no substitute part

Screw M0237906
#111

Control/antenna & basepan assembly diagram

Screw

Part #M0237906

The manufacturer no longer makes this part, and there's no substitute part

Diode Assembly R9800022
#71

Control/antenna & basepan assembly diagram

Diode assembly

Part #R9800022

The manufacturer no longer makes this part, and there's no substitute part

Assy, Touch Pnl R0150145
#11

Control/antenna & basepan assembly diagram

Assy, touch pnl

Part #R0150145

The manufacturer no longer makes this part, and there's no substitute part

Switch Assembly R0150154
#41

Control/antenna & basepan assembly diagram

Switch assembly

Part #R0150154

The manufacturer no longer makes this part, and there's no substitute part

"gasket,basep" 10732509
#32

Control/antenna & basepan assembly diagram

"gasket,basep"

Part #10732509

The manufacturer no longer makes this part, and there's no substitute part
