Kenmore
Garbage Disposal

Model # 17566491 Official Kenmore garbage disposal

Here are the diagrams and repair parts for Official Kenmore 17566491 garbage disposal, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 40 parts  |
Garbage Disposal Tailpipe Gasket 2592
#21

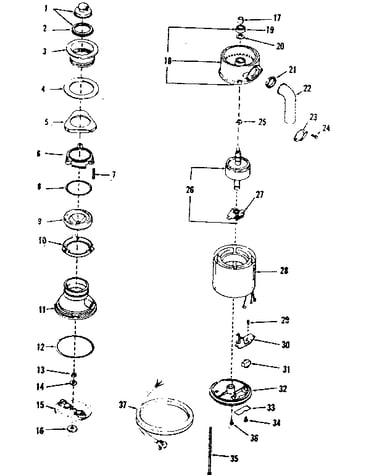

Replacement parts diagram

Garbage disposal tailpipe gasket

Part #2592

The manufacturer no longer makes this part, and there's no substitute part

Insinkerator Garbage Disposal Mounting Ring 5298
#10

Replacement parts diagram

Insinkerator garbage disposal mounting ring

Part #5298

The manufacturer no longer makes this part, and there's no substitute part

Emerson Garbage Disposal Screw 1468
#24

Replacement parts diagram

Emerson garbage disposal screw

Part #1468

The manufacturer no longer makes this part, and there's no substitute part

Insinkerator Bushing 2135

#NI

All parts diagram

Insinkerator bushing

Part #2135

The manufacturer no longer makes this part, and there's no substitute part

Insinkerator Garbage Disposal Support Ring 5166
#8

Replacement parts diagram

Insinkerator garbage disposal support ring

Part #5166

The manufacturer no longer makes this part, and there's no substitute part

Garbage Disposal Drain Stopper Gasket 5029
#2

Replacement parts diagram

Garbage disposal drain stopper gasket

Part #5029

The manufacturer no longer makes this part, and there's no substitute part

Insinkerator Garbage Disposal Sink Flange Gasket 1160
#4

Replacement parts diagram

Insinkerator garbage disposal sink flange gasket

Part #1160

The manufacturer no longer makes this part, and there's no substitute part

Garbage Disposal Power Cord 2272
#37

Replacement parts diagram

Garbage disposal power cord

Part #2272

The manufacturer no longer makes this part, and there's no substitute part

Insinkerator Garbage Disposal Centrifugal Switch 2467
#27

Replacement parts diagram

Insinkerator garbage disposal centrifugal switch

Part #2467

The manufacturer no longer makes this part, and there's no substitute part

Screw 8221
#29

Replacement parts diagram

Screw

Part #8221

The manufacturer no longer makes this part, and there's no substitute part
