Model # ZGG540NBP1SS Official GE gas grill

Here are the diagrams and repair parts for Official GE ZGG540NBP1SS gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 97 parts  |
Gas Grill Main Burner WB16X10034
#72

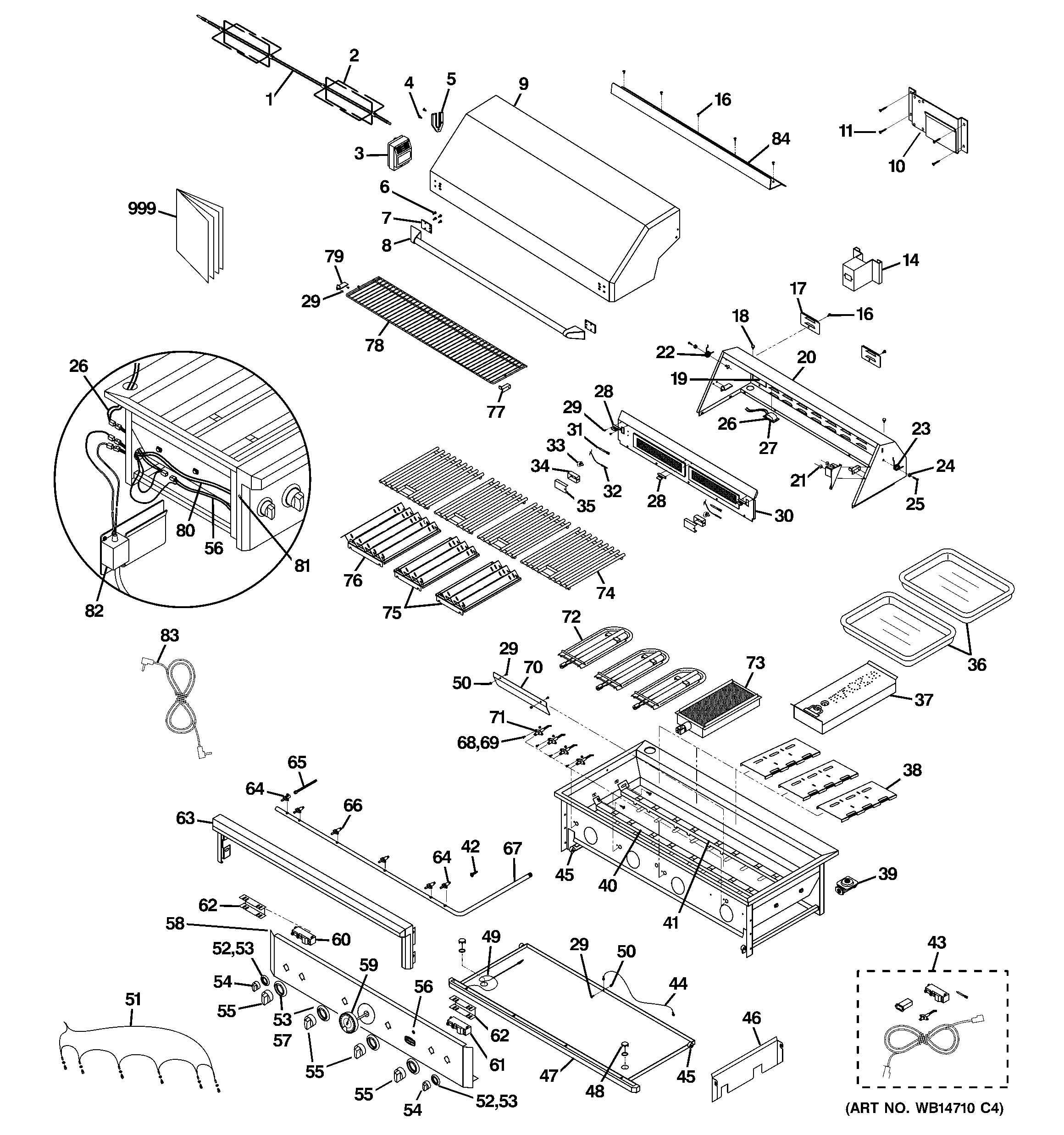

Control panel & cooktop diagram

Gas grill main burner

Part #WB16X10034

$313.36 |
$12.00 OFF Phone Price : $325.36
In Stock
Roller Kit WB10X10076
#45

Control panel & cooktop diagram

Roller kit

Part #WB10X10076

$107.40
In Stock
Screw WB01X10387
#29

Control panel & cooktop diagram

Screw

Part #WB01X10387

This item is not returnable
$5.00
In Stock
Liquid Propane Port Thermostat WB28X10118
#999

Control panel & cooktop diagram

Liquid propane port thermostat

Part #WB28X10118

$560.60
In Stock
Gas Grill Rotisserie Motor Jack WB02X11412
#81

Control panel & cooktop diagram

Gas grill rotisserie motor jack

Part #WB02X11412

$24.73
In Stock
Grate (cente WB31X10012
#74

Control panel & cooktop diagram

Grate (cente

Part #WB31X10012

$317.40
In Stock
Orifice Roti WB13X10023
#42

Control panel & cooktop diagram

Orifice roti

Part #WB13X10023

$21.29
In Stock
Match Holder WB02X11399
#49

Control panel & cooktop diagram

Match holder

Part #WB02X11399

$125.70
In Stock
Pivot Screw WB01X10386
#25

Control panel & cooktop diagram

Pivot screw

Part #WB01X10386

$8.33
In Stock
Electrode WB02X11387
#31

Control panel & cooktop diagram

Electrode

Part #WB02X11387

$87.01 |
6% OFF Phone Price : $93.01
In Stock
