LG
Upright Vacuum

Model # LUV350P Official LG vacuum

Here are the diagrams and repair parts for Official LG LUV350P vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

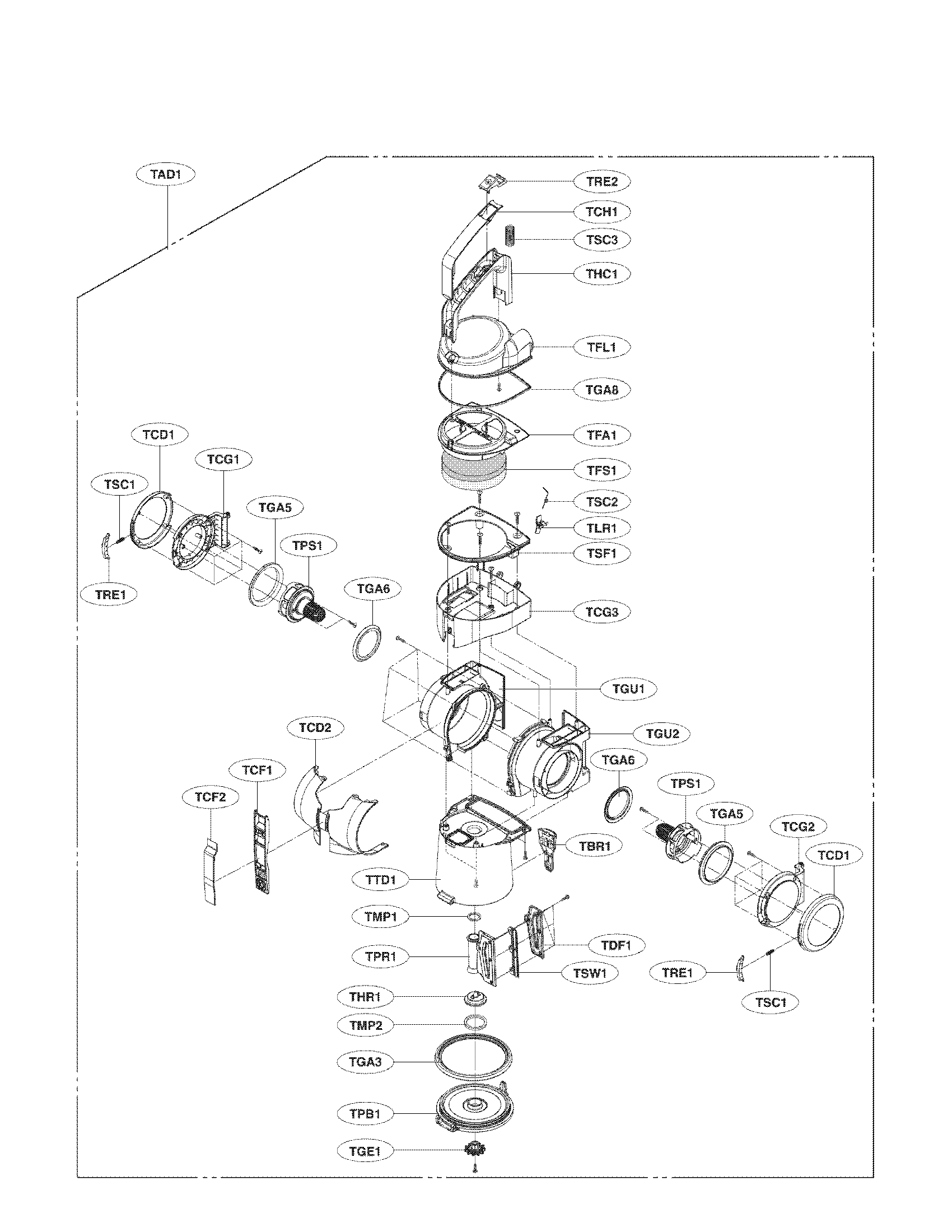

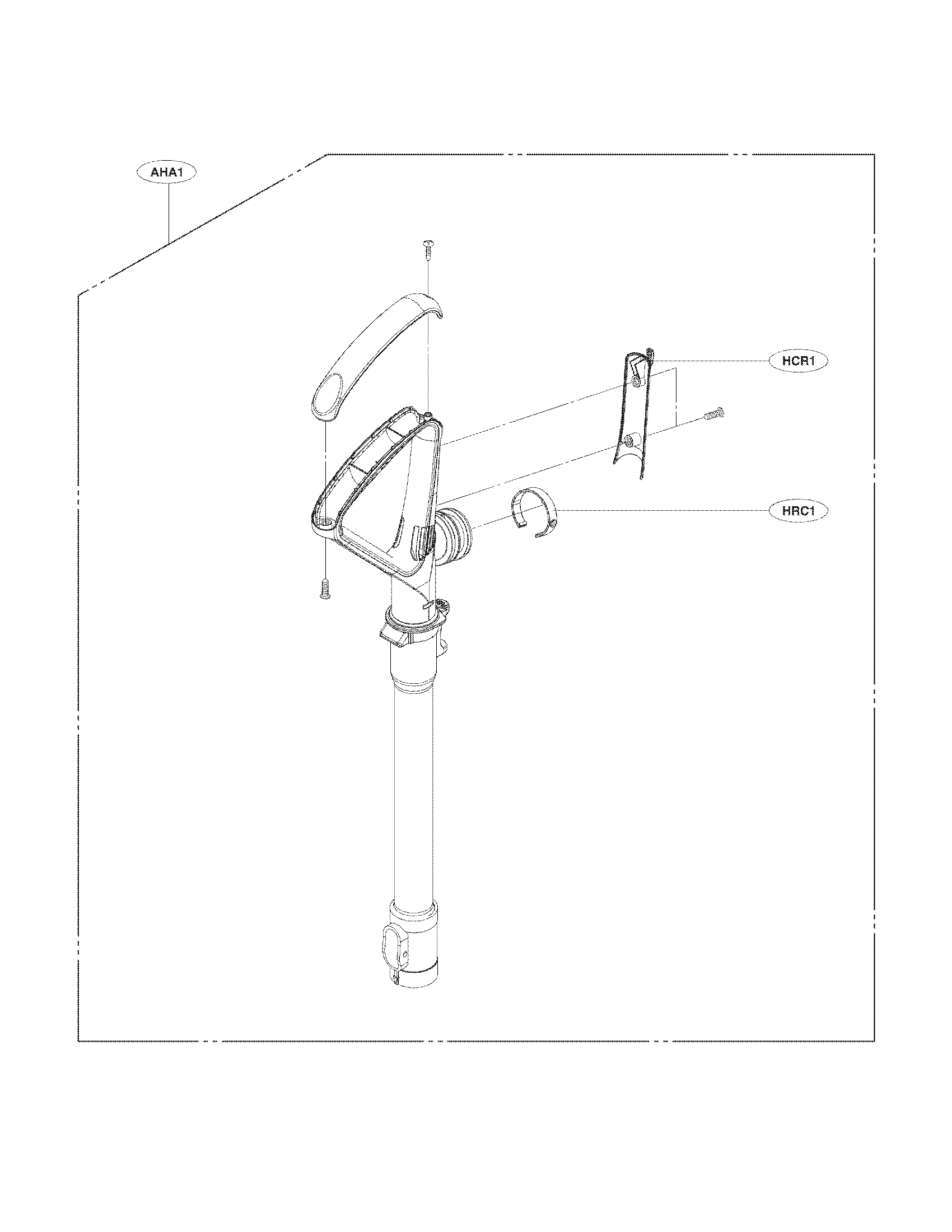

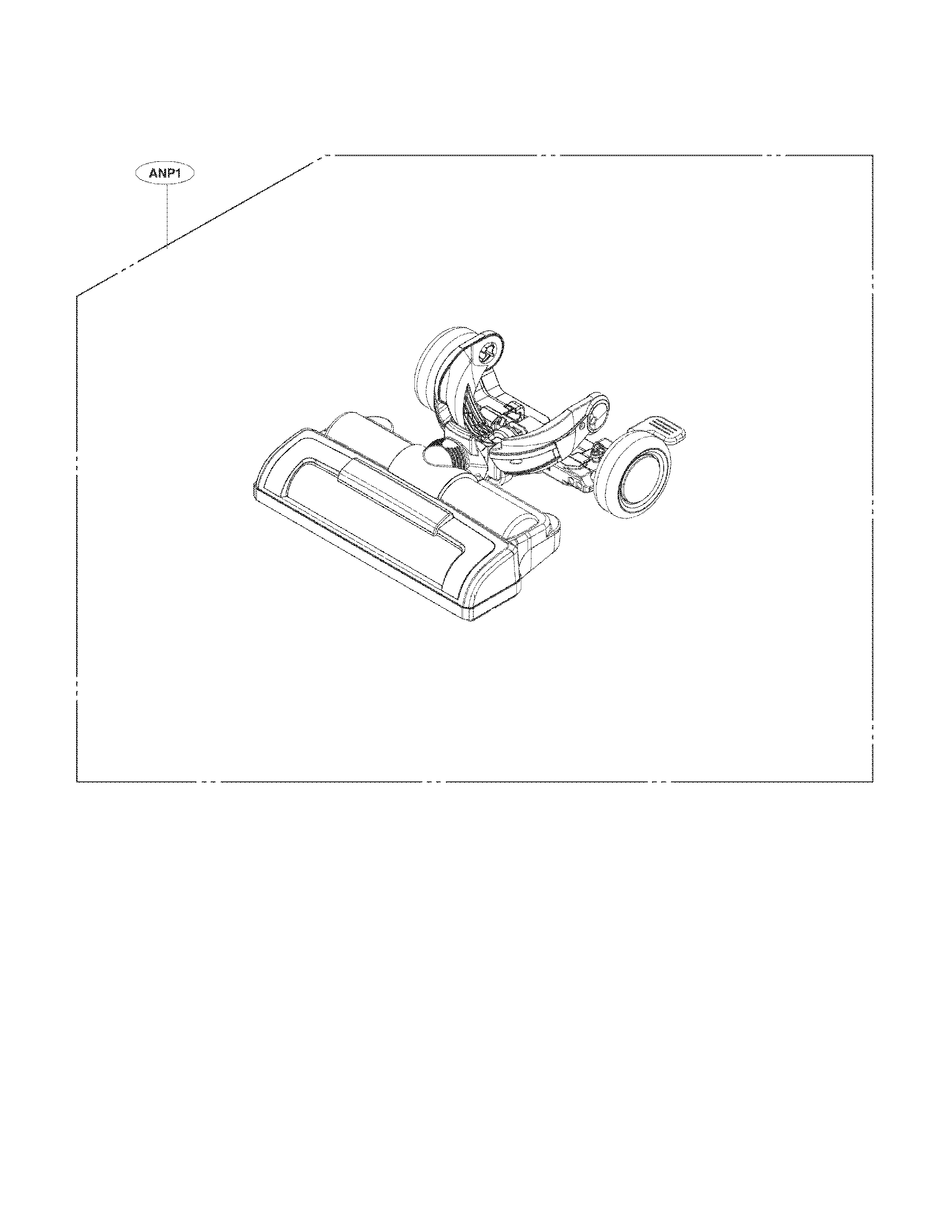

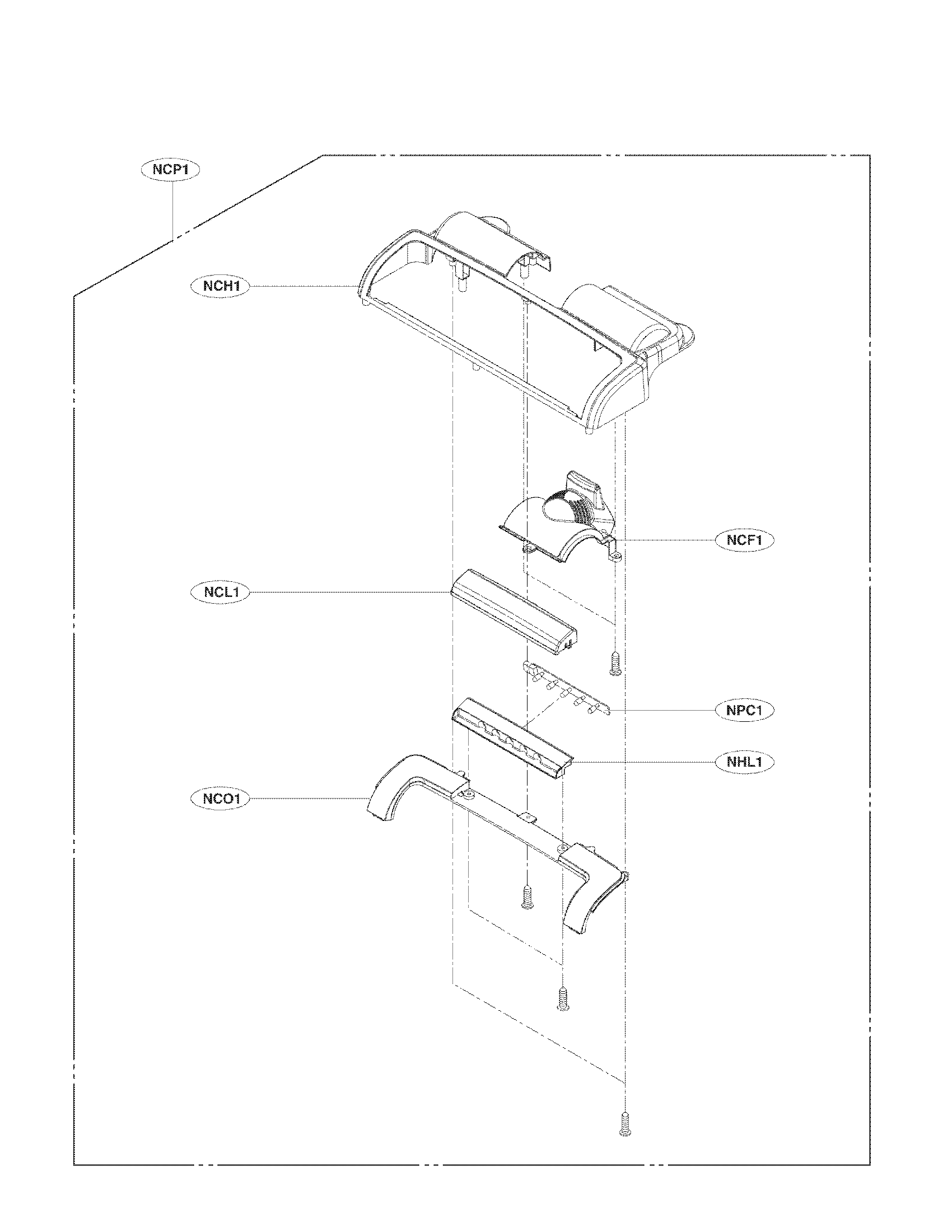

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 188 parts  |
Vacuum Motor EAU60683805
#CMV1

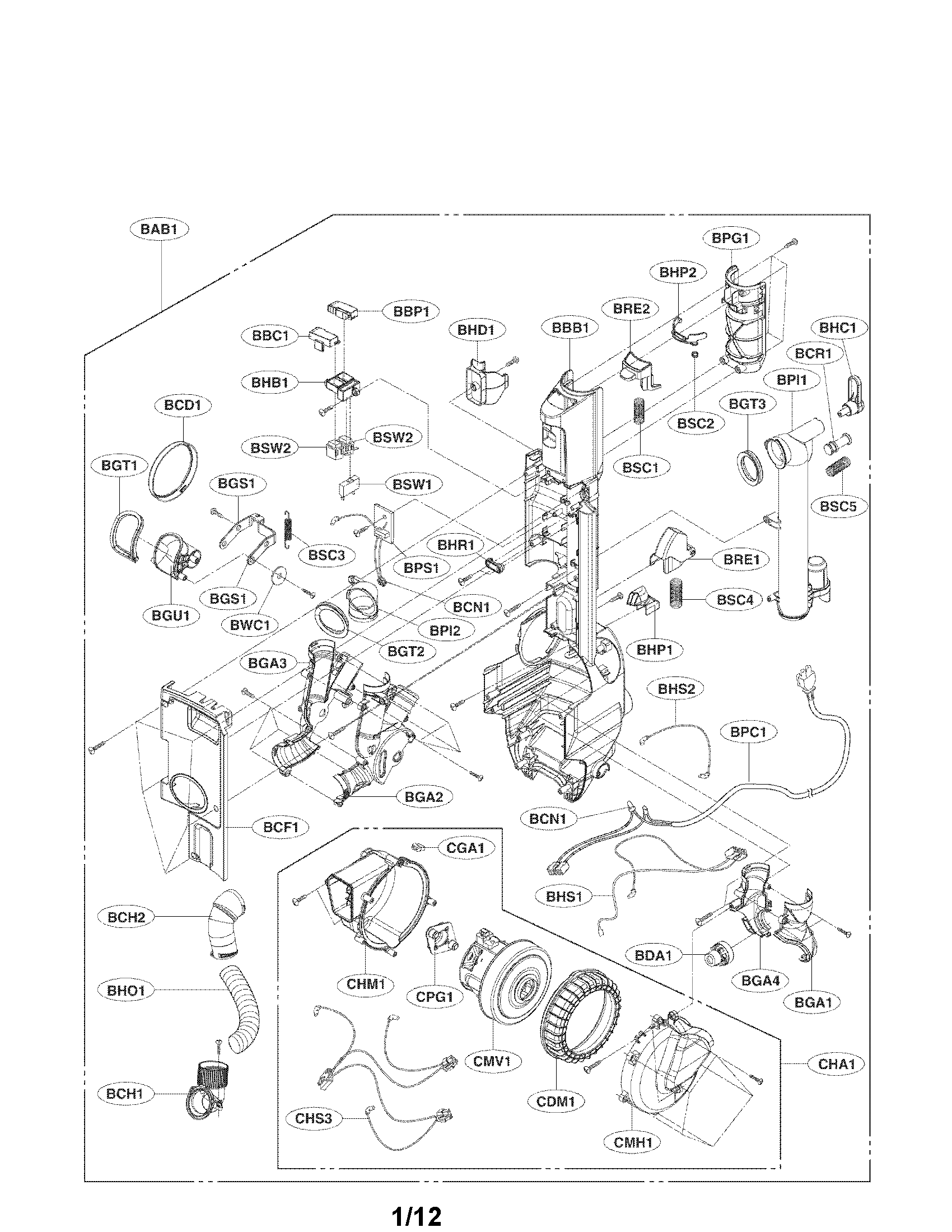

Base assembly parts diagram

Vacuum motor

Part #EAU60683805

$35.33
In Stock
Vacuum Switch Assembly EBF60693501
#NSW1

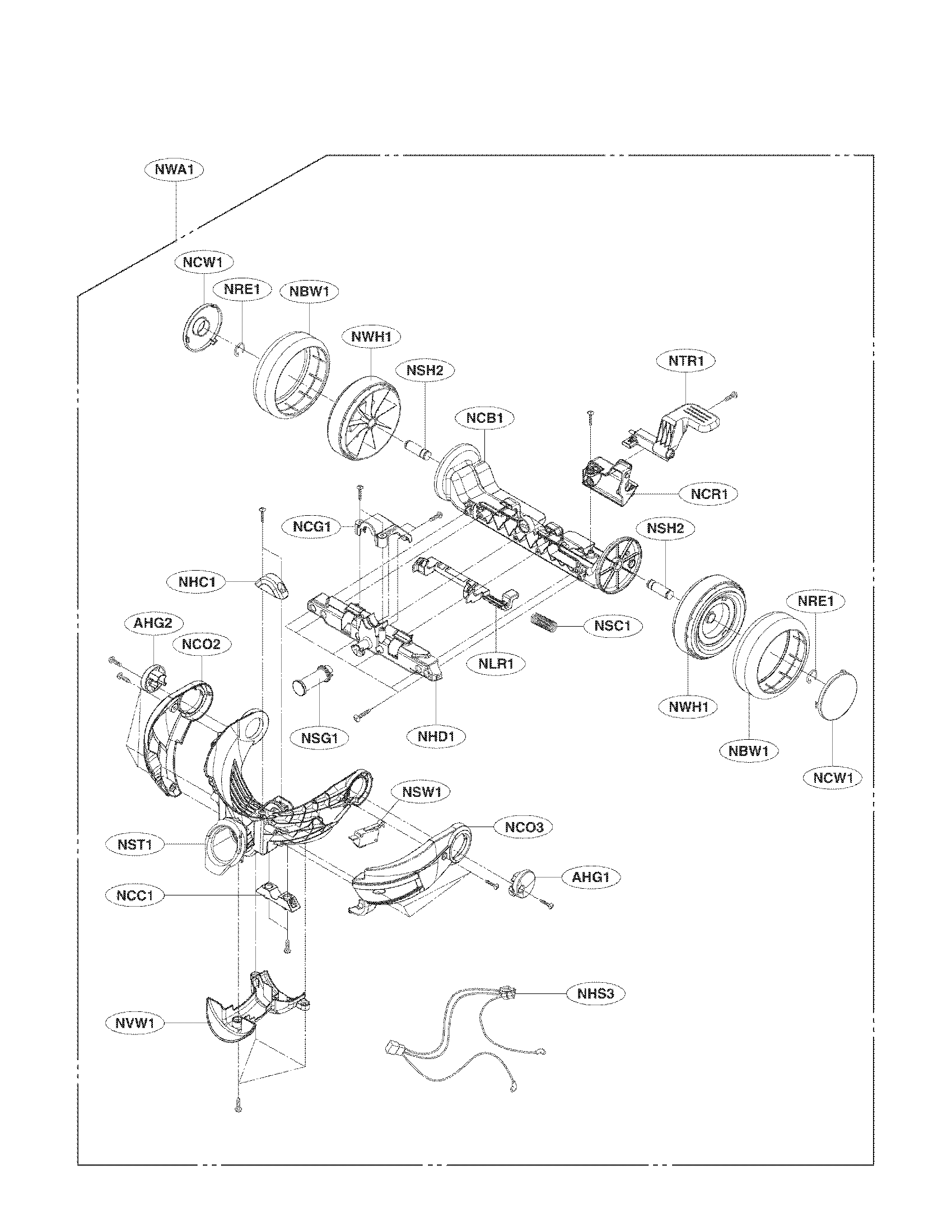

Head wheel parts diagram

Vacuum switch assembly

Part #EBF60693501

This item is not returnable
$2.16
In Stock
Connector,pi MCD61842801
#NAC1

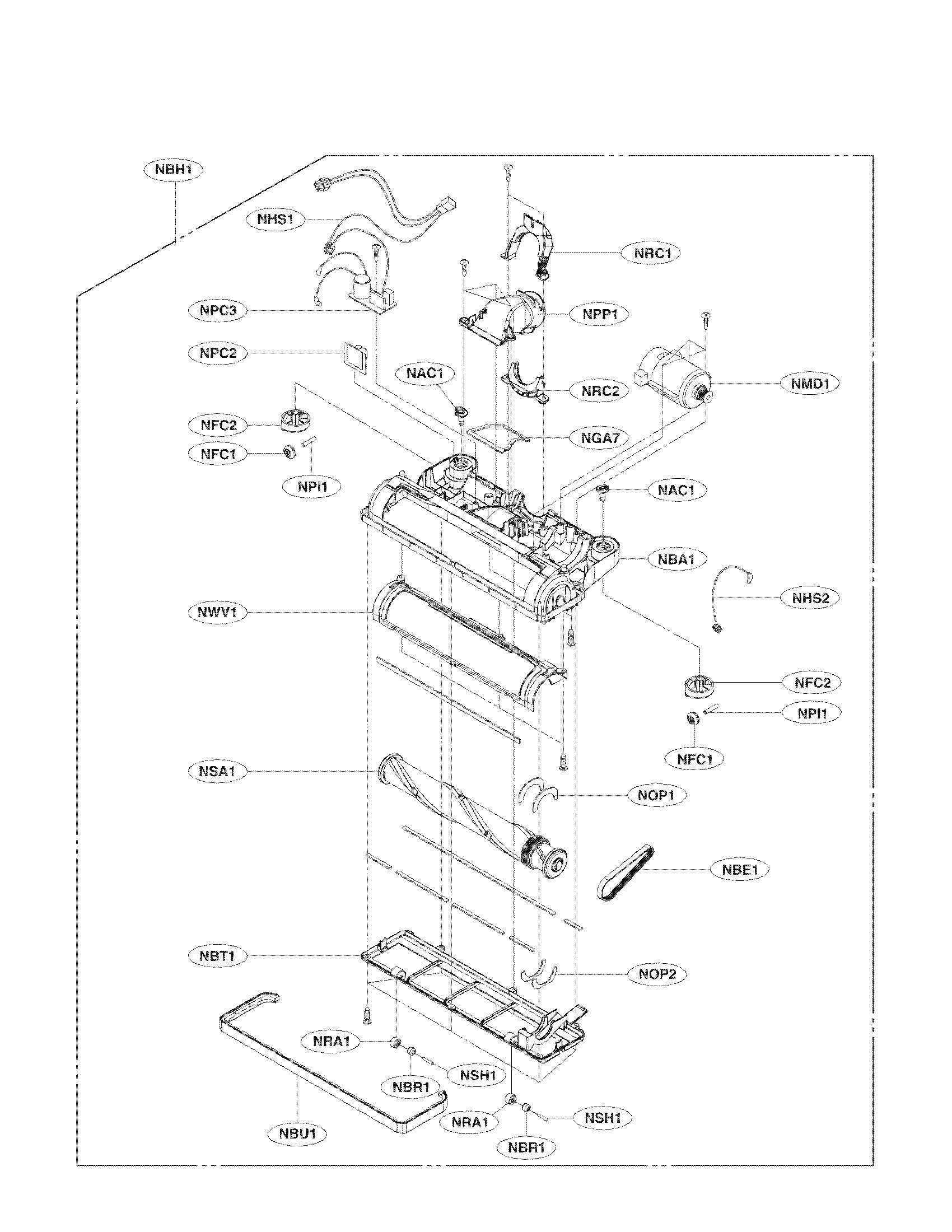

Head base parts diagram

Connector,pi

Part #MCD61842801

This item is not returnable
$2.16
In Stock
Lg Fixing MEG62839701
#AHG1

Head wheel parts diagram

Lg fixing

Part #MEG62839701

This item is not returnable
$2.16
In Stock
Coil Spring MHY61881901
#BSC2

Base assembly parts diagram

Coil spring

Part #MHY61881901

This item is not returnable
$2.33
In Stock
Vacuum Beater Bar Belt Guide, Upper MFQ61841602
#NOP1

Head base parts diagram

Vacuum beater bar belt guide, upper

Part #MFQ61841602

This item is not returnable
$2.16
In Stock
Vacuum Nozzle Assembly AGB72912007
#ANT1

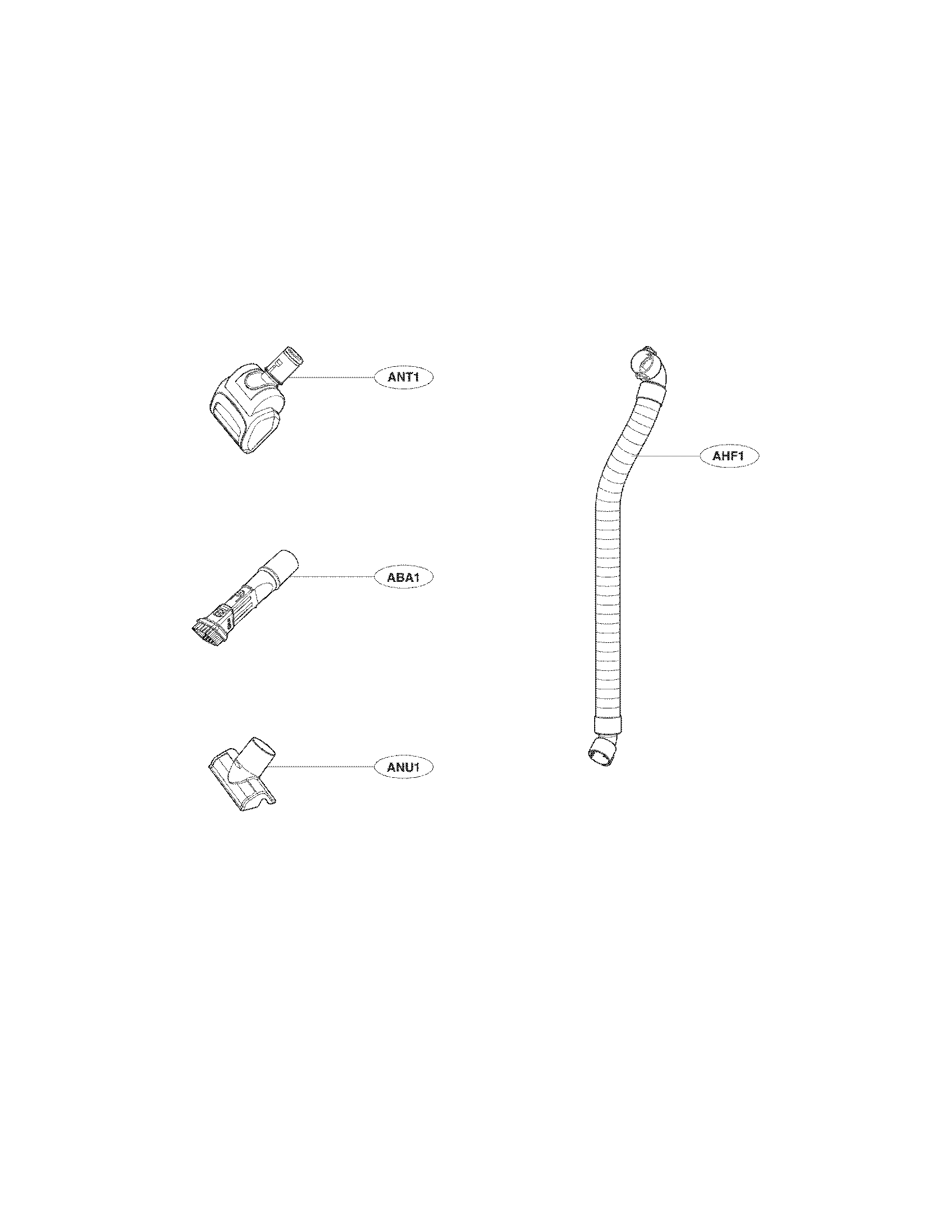

Accessory parts diagram

Vacuum nozzle assembly

Part #AGB72912007

$22.54
In Stock
Pcb Assembly EBR72784401
#NPC3

Head base parts diagram

Pcb assembly

Part #EBR72784401

This item is not returnable
$4.37
In Stock
Gear MDT62287101
#CBG1

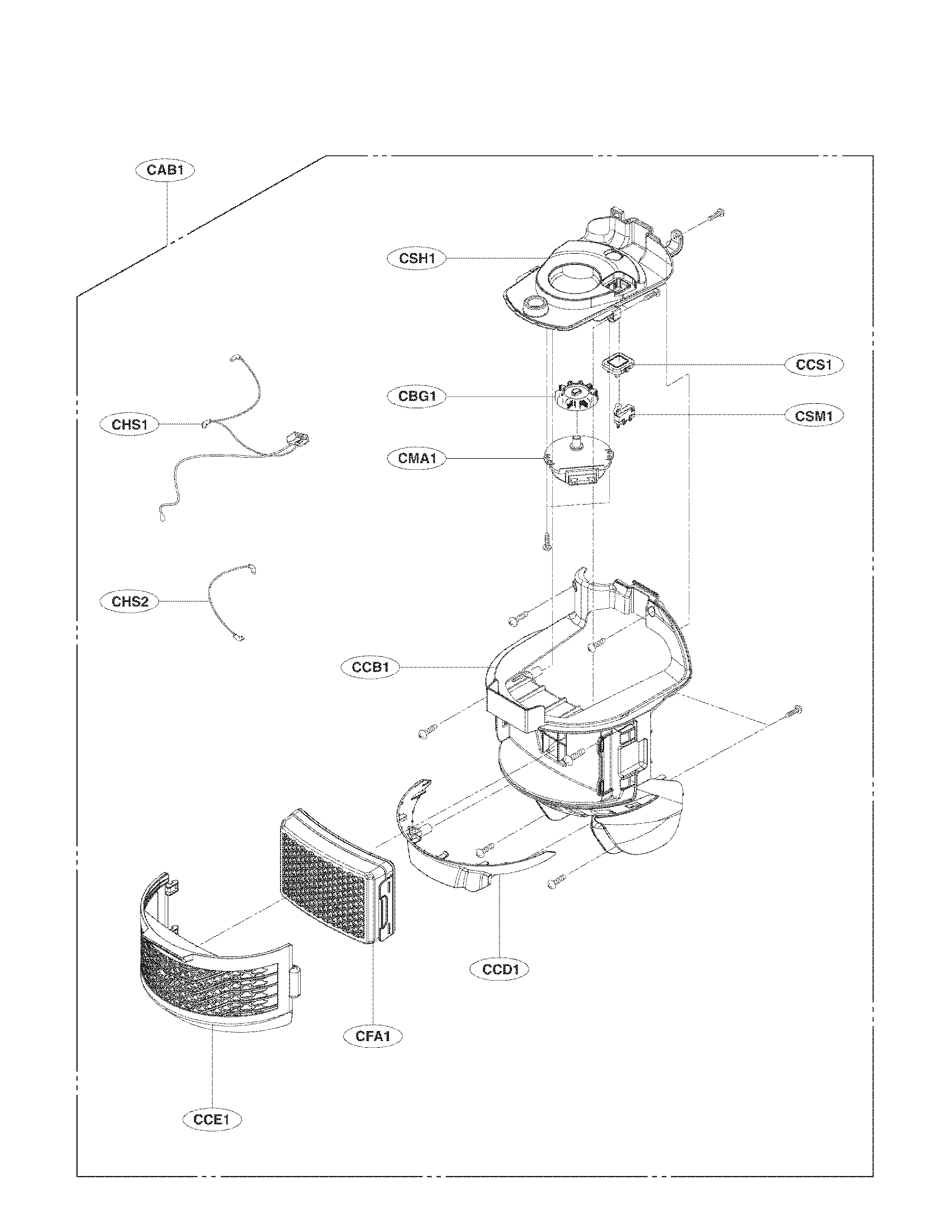

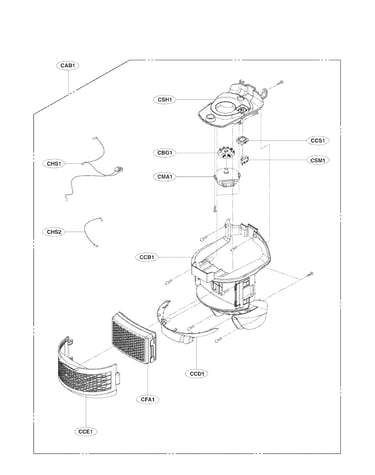

Cover assembly parts diagram

Gear

Part #MDT62287101

The manufacturer no longer makes this part, and there's no substitute part

Shaft Assembly AHR72989702
#NSA1

Head base parts diagram

Shaft assembly

Part #AHR72989702

The manufacturer no longer makes this part, and there's no substitute part
