Model # U5111950 Official Hoover upright vacuum

Here are the diagrams and repair parts for Official Hoover U5111950 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 98 parts  |

Vacuum Spring 34572002
#50

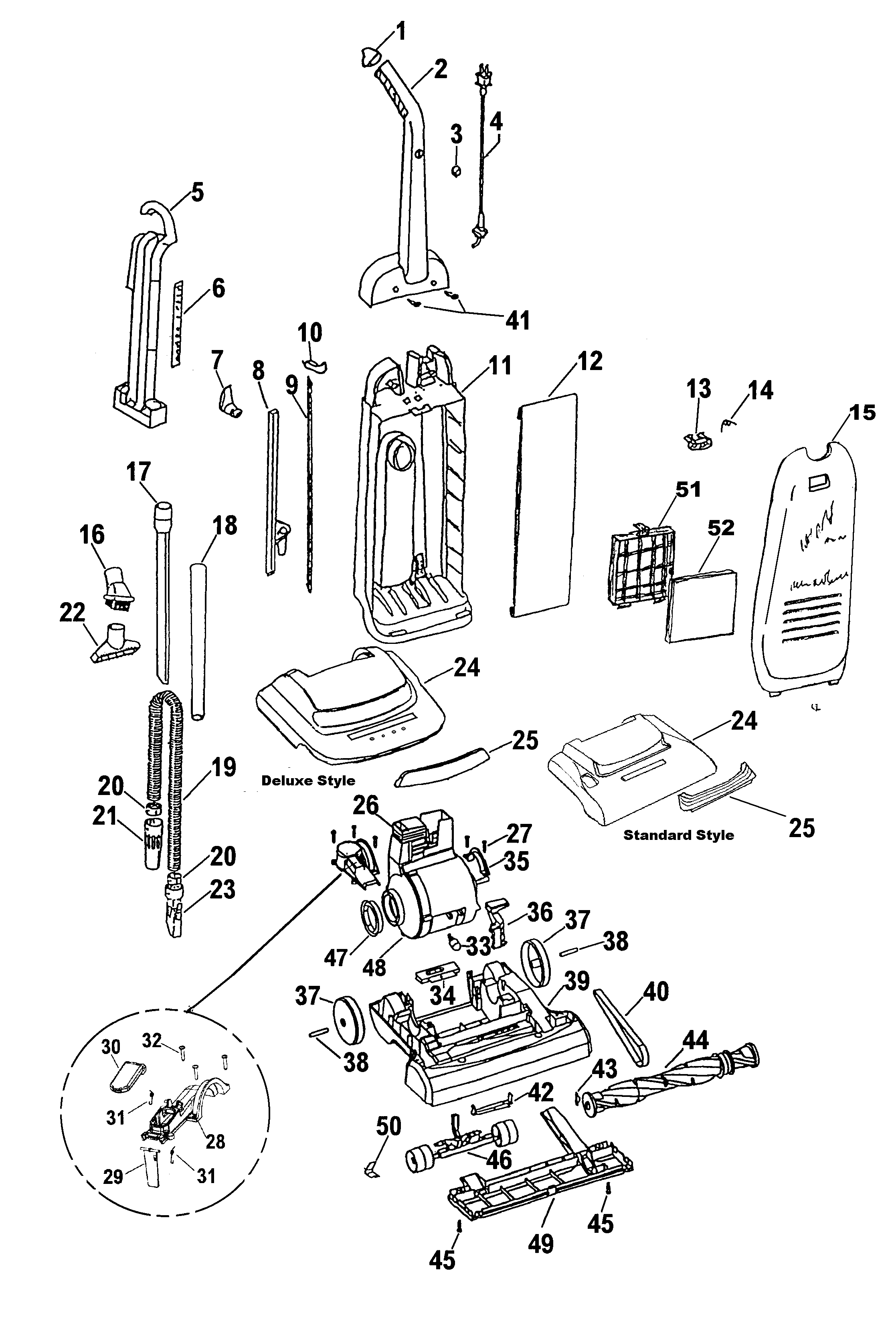

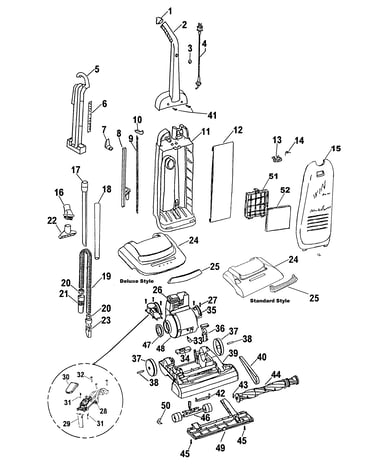

Mainbody, handle, outerbag diagram

Vacuum spring

Part #34572002

The manufacturer no longer makes this part, and there's no substitute part

Spring 38355009
#14

Mainbody, handle, outerbag diagram

Spring

Part #38355009

The manufacturer no longer makes this part, and there's no substitute part

Regina Vacuum Screw 21447217
Regina vacuum screw

Part #21447217

The manufacturer no longer makes this part, and there's no substitute part

Regina Vacuum Screw 21447072
#41

Mainbody, handle, outerbag diagram

Regina vacuum screw

Part #21447072

The manufacturer no longer makes this part, and there's no substitute part

Door 37254186
#15I

Mainbody, handle, outerbag diagram

Door

Part #37254186

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Allergen Filtration Bag, 3-pack 4010100Z
#12

Mainbody, handle, outerbag diagram

Vacuum allergen filtration bag, 3-pack

Part #4010100Z

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Conical Washer 21347003
#3

Agitator diagram

Vacuum conical washer

Part #21347003

The manufacturer no longer makes this part, and there's no substitute part

Actuator 40309028
#34

Mainbody, handle, outerbag diagram

Actuator

Part #40309028

The manufacturer no longer makes this part, and there's no substitute part

Retainer 36426041
#51

Mainbody, handle, outerbag diagram

Retainer

Part #36426041

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar Housing End Cap, Right 36423016
#1

Agitator diagram

Vacuum beater bar housing end cap, right

Part #36423016

The manufacturer no longer makes this part, and there's no substitute part
