Model # RFD65-OP(R) Official Continental wall furnace

Here are the diagrams and repair parts for Official Continental RFD65-OPR wall furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |

Thermocouple P254000
#48

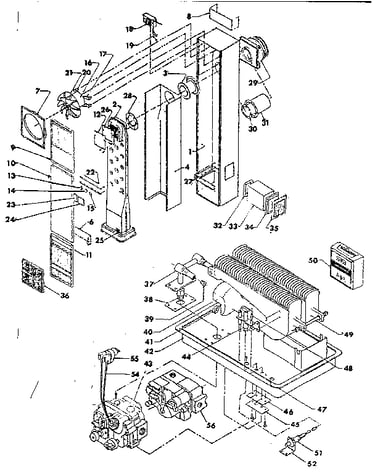

Furnace assembly and control assembly diagram

Thermocouple

Part #P254000

The manufacturer no longer makes this part, and there's no substitute part

Thermostat P106400
#50

Furnace assembly and control assembly diagram

Thermostat

Part #P106400

The manufacturer no longer makes this part, and there's no substitute part

Select Switch P200400
#14

Furnace assembly and control assembly diagram

Select switch

Part #P200400

The manufacturer no longer makes this part, and there's no substitute part

Gasket P151900
#27

Furnace assembly and control assembly diagram

Gasket

Part #P151900

The manufacturer no longer makes this part, and there's no substitute part

Trim Cover 11A40
#8

Furnace assembly and control assembly diagram

Trim cover

Part #11A40

The manufacturer no longer makes this part, and there's no substitute part

Switch Box 11B05
#22

Furnace assembly and control assembly diagram

Switch box

Part #11B05

The manufacturer no longer makes this part, and there's no substitute part

Extension Assembly 11A97
#30

Furnace assembly and control assembly diagram

Extension assembly

Part #11A97

The manufacturer no longer makes this part, and there's no substitute part

Casing Assembly 11C42-1
#1

Furnace assembly and control assembly diagram

Casing assembly

Part #11C42-1

The manufacturer no longer makes this part, and there's no substitute part

Extension Assembly 11B49
#31

Furnace assembly and control assembly diagram

Extension assembly

Part #11B49

The manufacturer no longer makes this part, and there's no substitute part

Furnace Transformer P024200
#18

Furnace assembly and control assembly diagram

Furnace transformer

Part #P024200

The manufacturer no longer makes this part, and there's no substitute part
