Carrier
Room Air Conditioner

Model # 51QF112710 Official Carrier room air conditioner

Here are the diagrams and repair parts for Official Carrier 51QF112710 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 83 parts  |
Switch HH12ZA167

#31

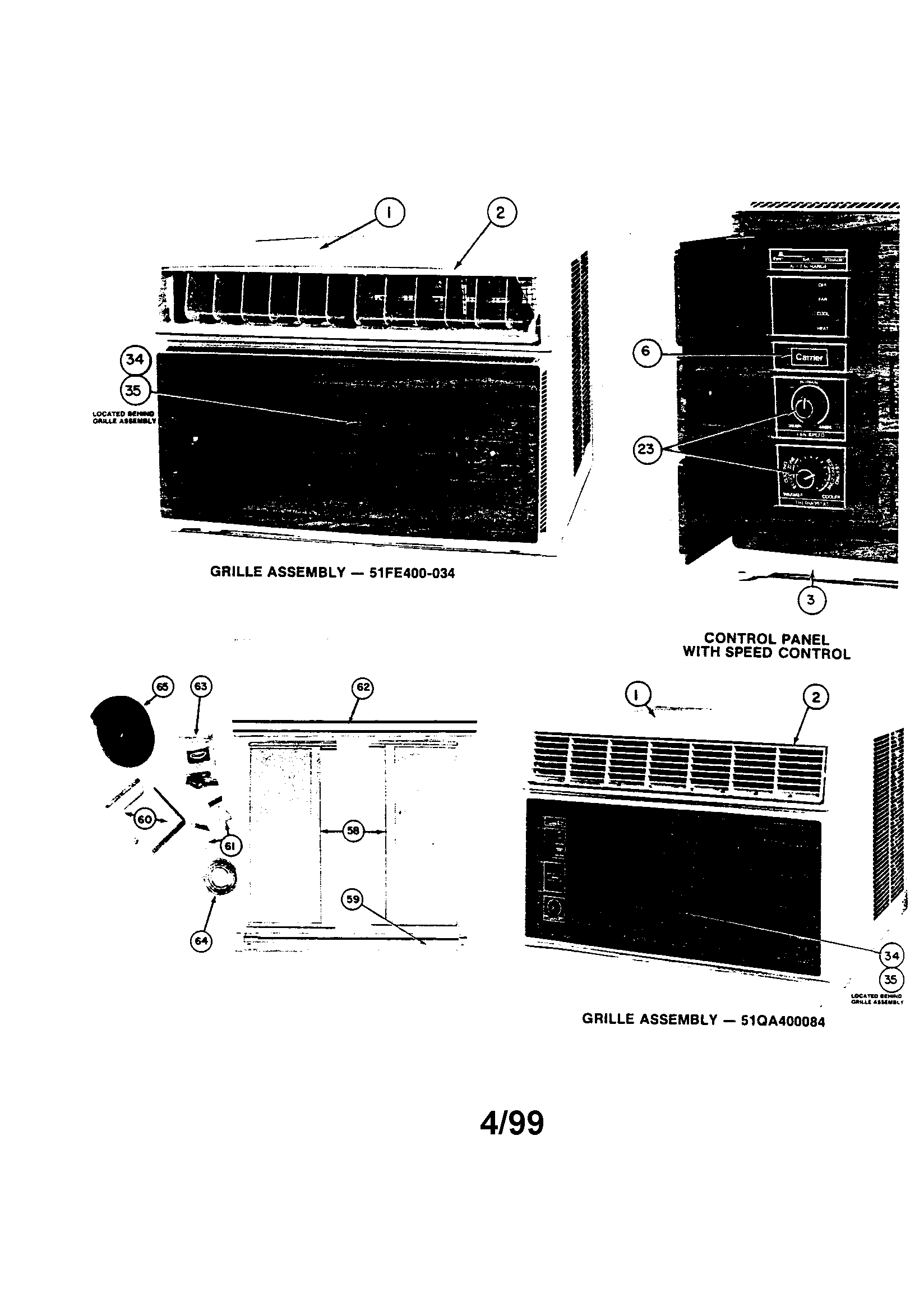

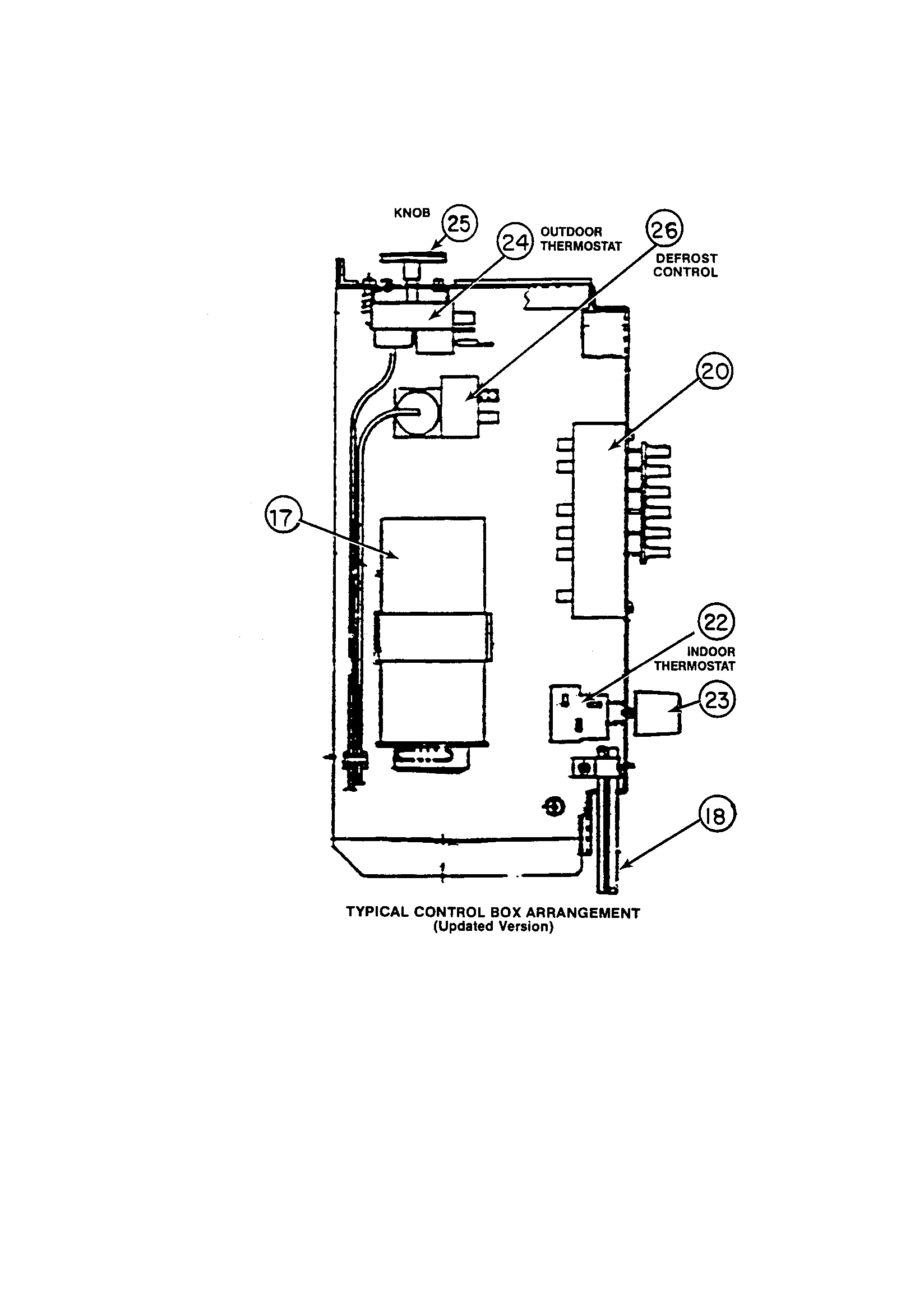

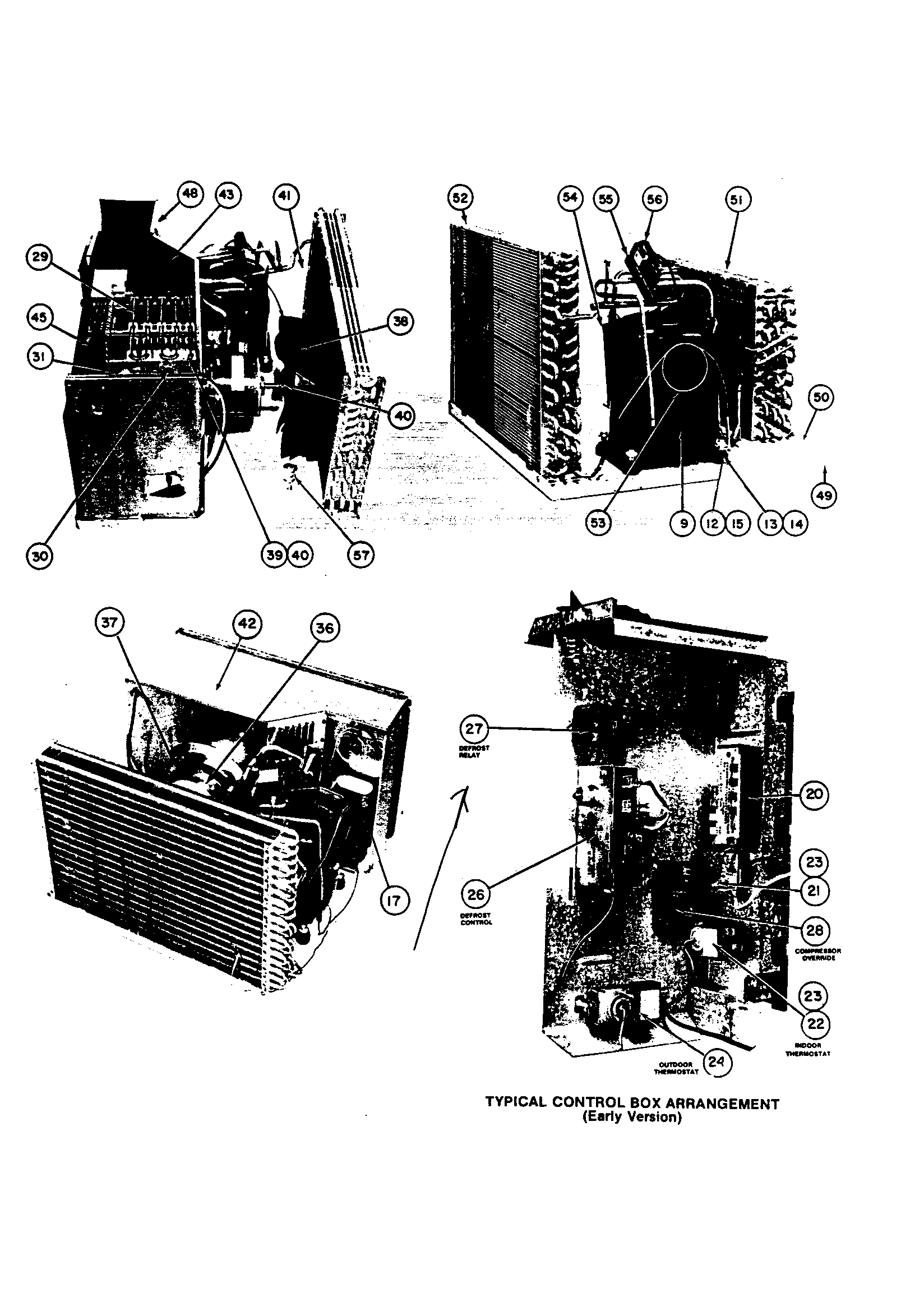

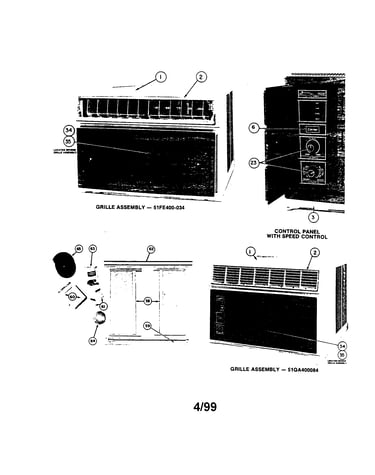

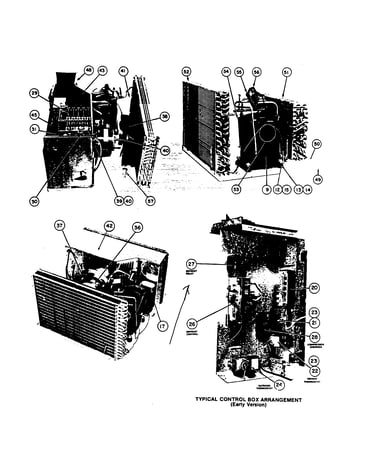

All parts diagram

Switch

Part #HH12ZA167

$34.76
In Stock
Escutcheon (control Panel) (51qf109700, 51qf110700, 51qf110710, 51qf112700, And 51qf112710) 51FV500195

#6

All parts diagram

Escutcheon (control panel) (51qf109700, 51qf110700, 51qf110710, 51qf112700, and 51qf112710)

Part #51FV500195

The manufacturer no longer makes this part, and there's no substitute part

Exhaust Door Assembly 51FL400203

#43

All parts diagram

Exhaust door assembly

Part #51FL400203

The manufacturer no longer makes this part, and there's no substitute part

Wrapper Assembly 51FL401811

#1

All parts diagram

Wrapper assembly

Part #51FL401811

The manufacturer no longer makes this part, and there's no substitute part

Grille Assembly 51FE400034

#2

All parts diagram

Grille assembly

Part #51FE400034

The manufacturer no longer makes this part, and there's no substitute part

Partition Assembly 51FY500364

#48

All parts diagram

Partition assembly

Part #51FY500364

The manufacturer no longer makes this part, and there's no substitute part

Filter (cut To Size )(not Shown) 51YA680001

#66

All parts diagram

Filter (cut to size )(not shown)

Part #51YA680001

The manufacturer no longer makes this part, and there's no substitute part

Fan Motor HC35CA230

#36

All parts diagram

Fan motor

Part #HC35CA230

The manufacturer no longer makes this part, and there's no substitute part

Package Hardware 51FL400311

#63

All parts diagram

Package hardware

Part #51FL400311

The manufacturer no longer makes this part, and there's no substitute part

Air Exchange Lever (not Shown) 51FE500074

#46

All parts diagram

Air exchange lever (not shown)

Part #51FE500074

The manufacturer no longer makes this part, and there's no substitute part
