Model # RC06010A1D Official Amana room air conditioner

Here are the diagrams and repair parts for Official Amana RC06010A1D room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |
Temperature Control BT1370801
#10

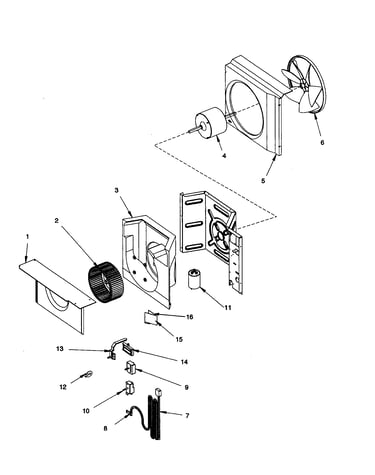

Fan and control assembly diagram

Temperature control

Part #BT1370801

Replaced by #BT1370801

?
Manufacturer substitution
This part replaces BT1370801. Substitute parts can look different from the original.
$79.22
In Stock
Suction Line Assembly 3093722
#7A

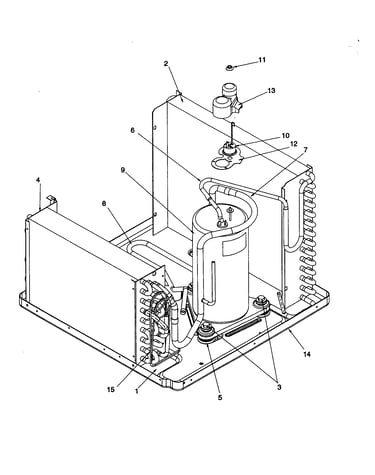

Compressor assembly diagram

Suction line assembly

Part #3093722

The manufacturer no longer makes this part, and there's no substitute part

Vent BT3075412
#3

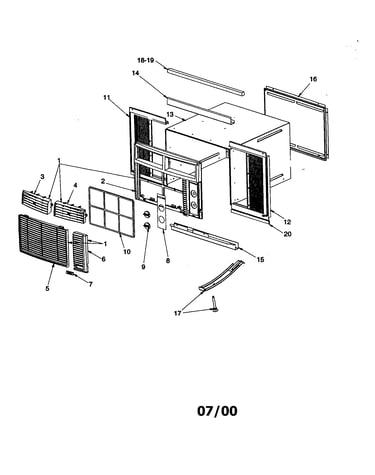

Outer case assembly diagram

Vent

Part #BT3075412

The manufacturer no longer makes this part, and there's no substitute part

Compressor BT9266101
#9

Compressor assembly diagram

Compressor

Part #BT9266101

The manufacturer no longer makes this part, and there's no substitute part

Control Label BT1493326
#8

Outer case assembly diagram

Control label

Part #BT1493326

The manufacturer no longer makes this part, and there's no substitute part

Liquid Line Assembly 3093859
#8A

Compressor assembly diagram

Liquid line assembly

Part #3093859

The manufacturer no longer makes this part, and there's no substitute part

Left Shutter Assembly BT3074115
#11

Outer case assembly diagram

Left shutter assembly

Part #BT3074115

The manufacturer no longer makes this part, and there's no substitute part

Kit, Hard St 3093200S

#NI

All parts diagram

Kit, hard st

Part #3093200S

The manufacturer no longer makes this part, and there's no substitute part

Gasket (p1225001r, P1225002r, P1225003r) BT1392604
#12

Compressor assembly diagram

Gasket (p1225001r, p1225002r, p1225003r)

Part #BT1392604

The manufacturer no longer makes this part, and there's no substitute part

Discharge Line Rc06010a1d, Rc06010a1d Rev A, Rc06010a1dr, Rc06010a1dr Rev A 3093815
#6

Compressor assembly diagram

Discharge line rc06010a1d, rc06010a1d rev a, rc06010a1dr, rc06010a1dr rev a

Part #3093815

The manufacturer no longer makes this part, and there's no substitute part
