Model # NEX-5NK/S Official Sony digital camera

Here are the diagrams and repair parts for Official Sony NEX-5NK-S digital camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

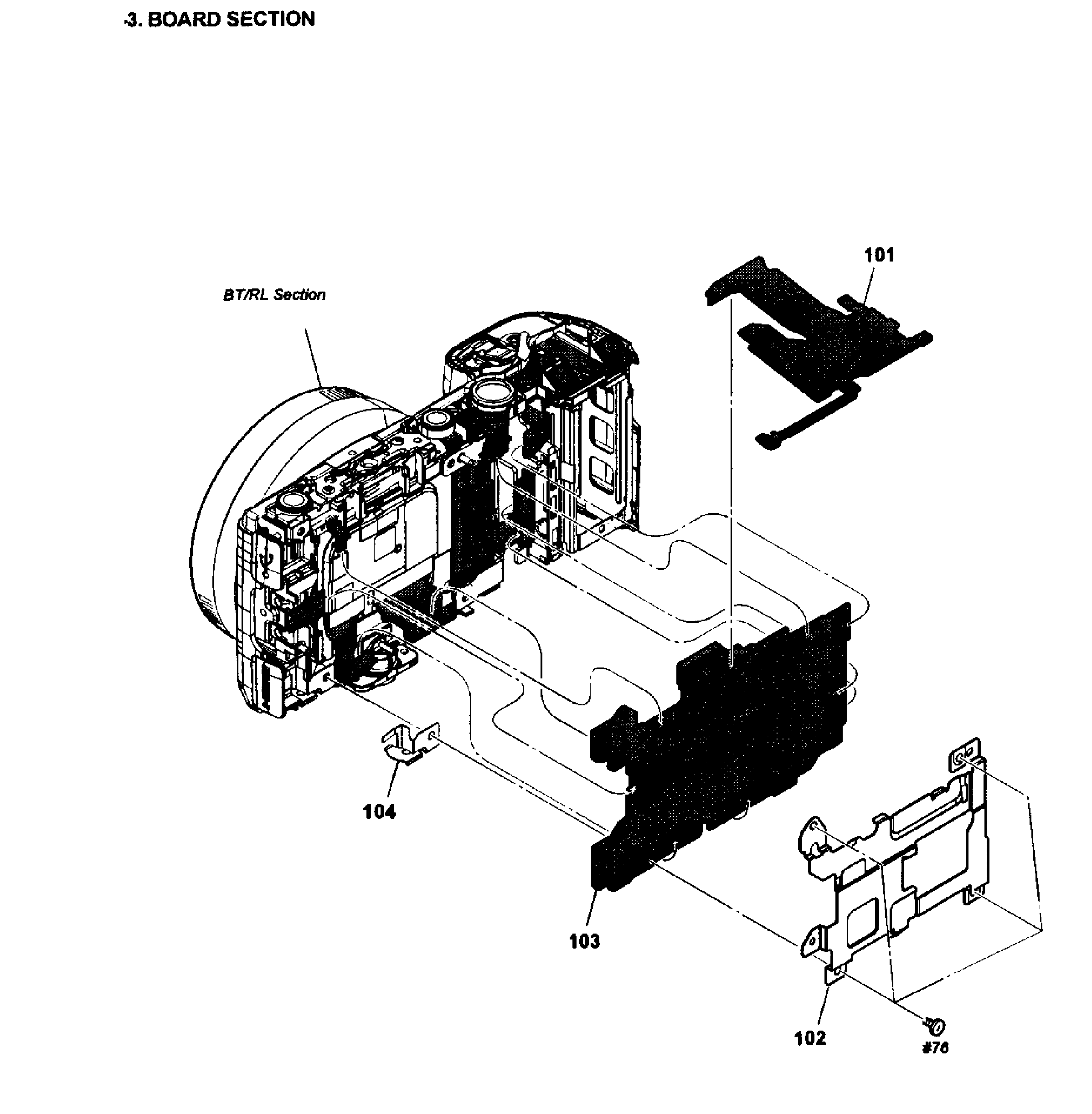

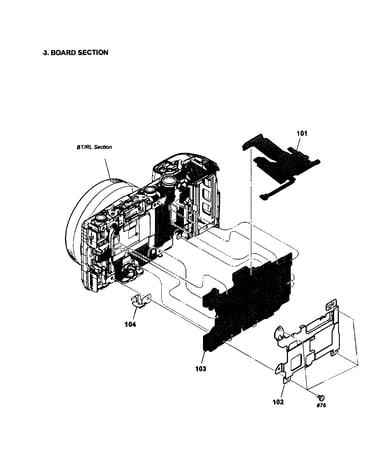

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 93 parts  |
Shoe Plate 429213501
#167

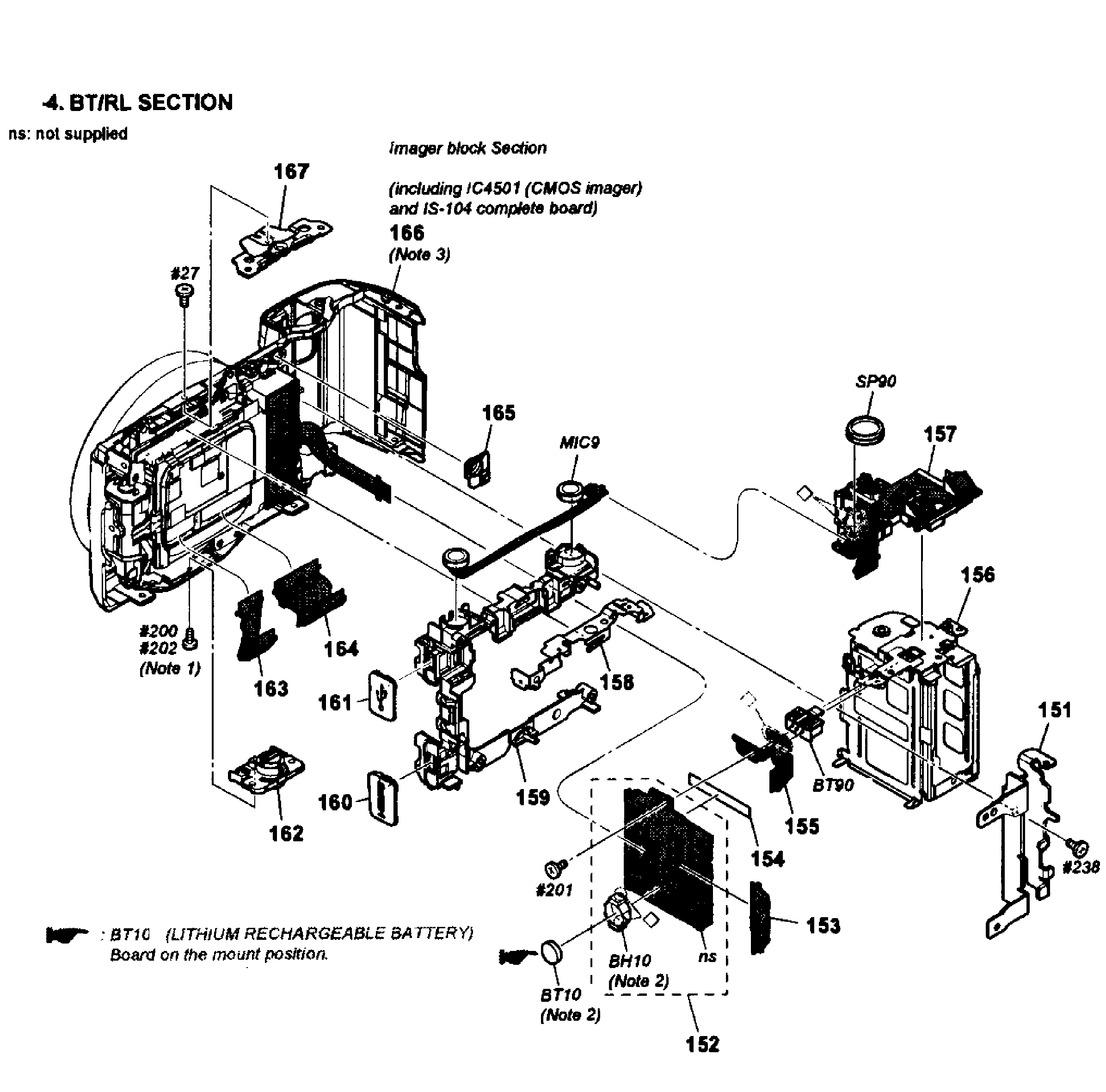

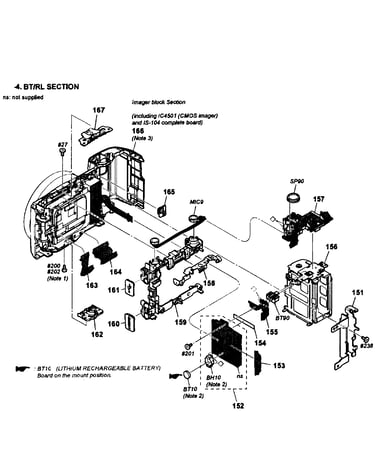

Bt/rl assy diagram

Shoe plate

Part #429213501

This item is not returnable
$3.93
In Stock
Retaining 418652401
#6

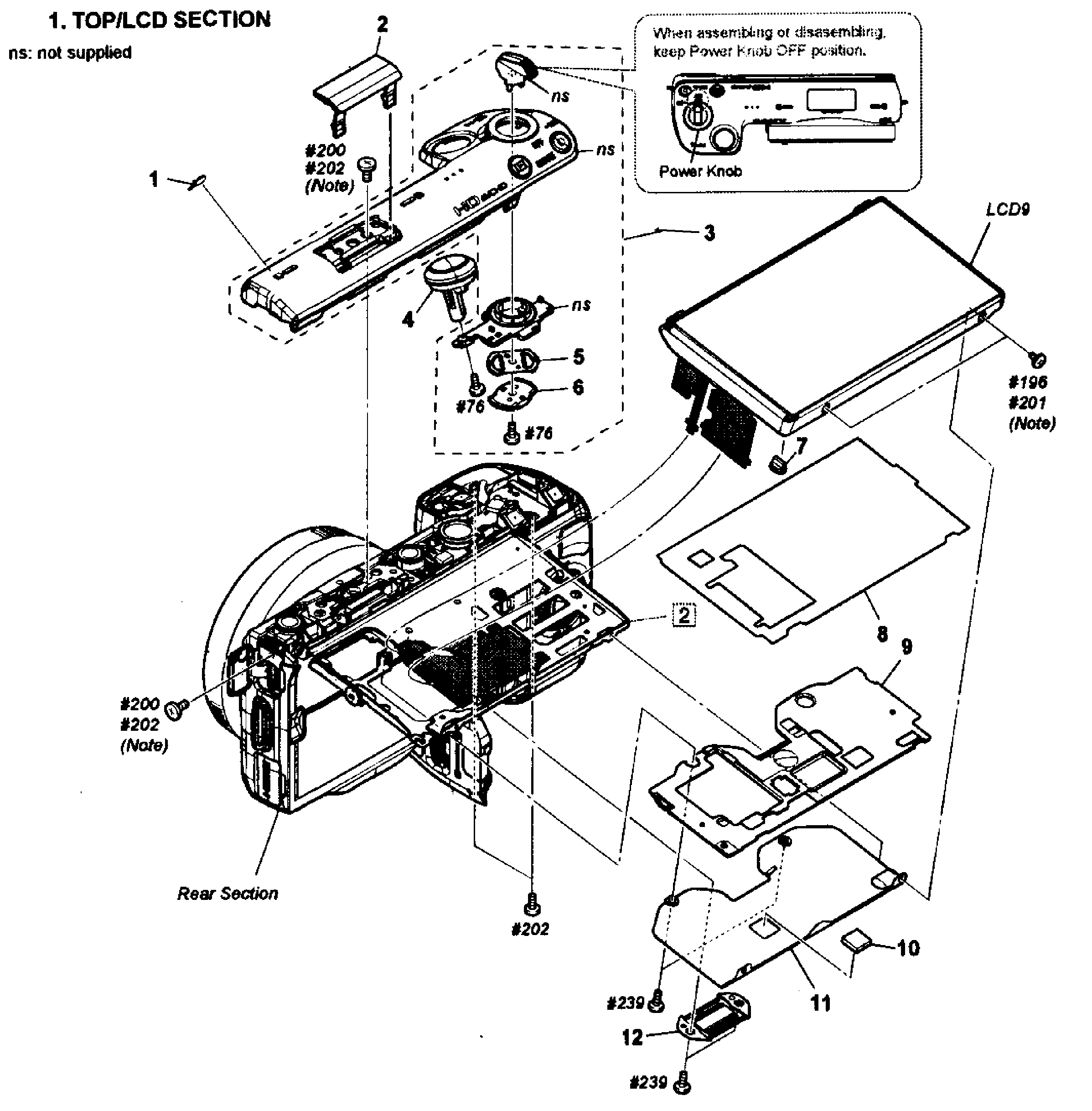

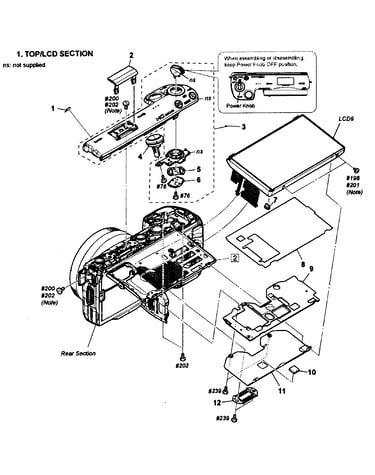

Top/lcd asssy diagram

Retaining

Part #418652401

This item is not returnable
$3.15
In Stock
Sheet Radiation 429216301
#154

Bt/rl assy diagram

Sheet radiation

Part #429216301

This item is not returnable
$2.54
In Stock
Cover 429214501
#55

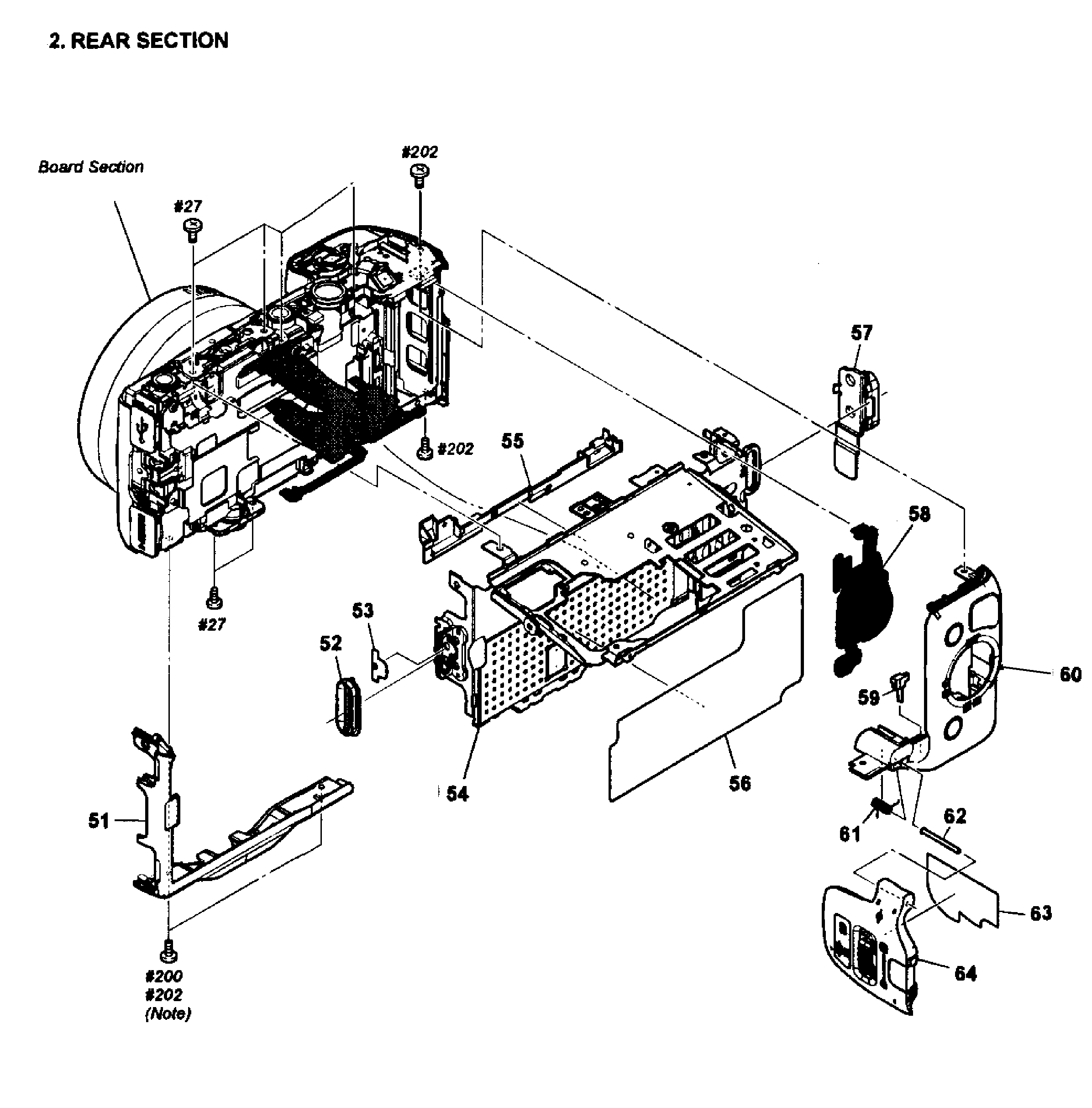

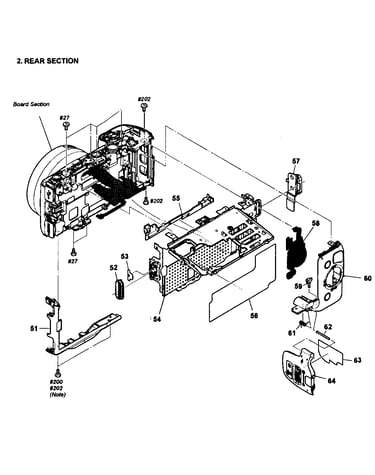

Rear assy diagram

Cover

Part #429214501

This item is not returnable
$3.15
In Stock

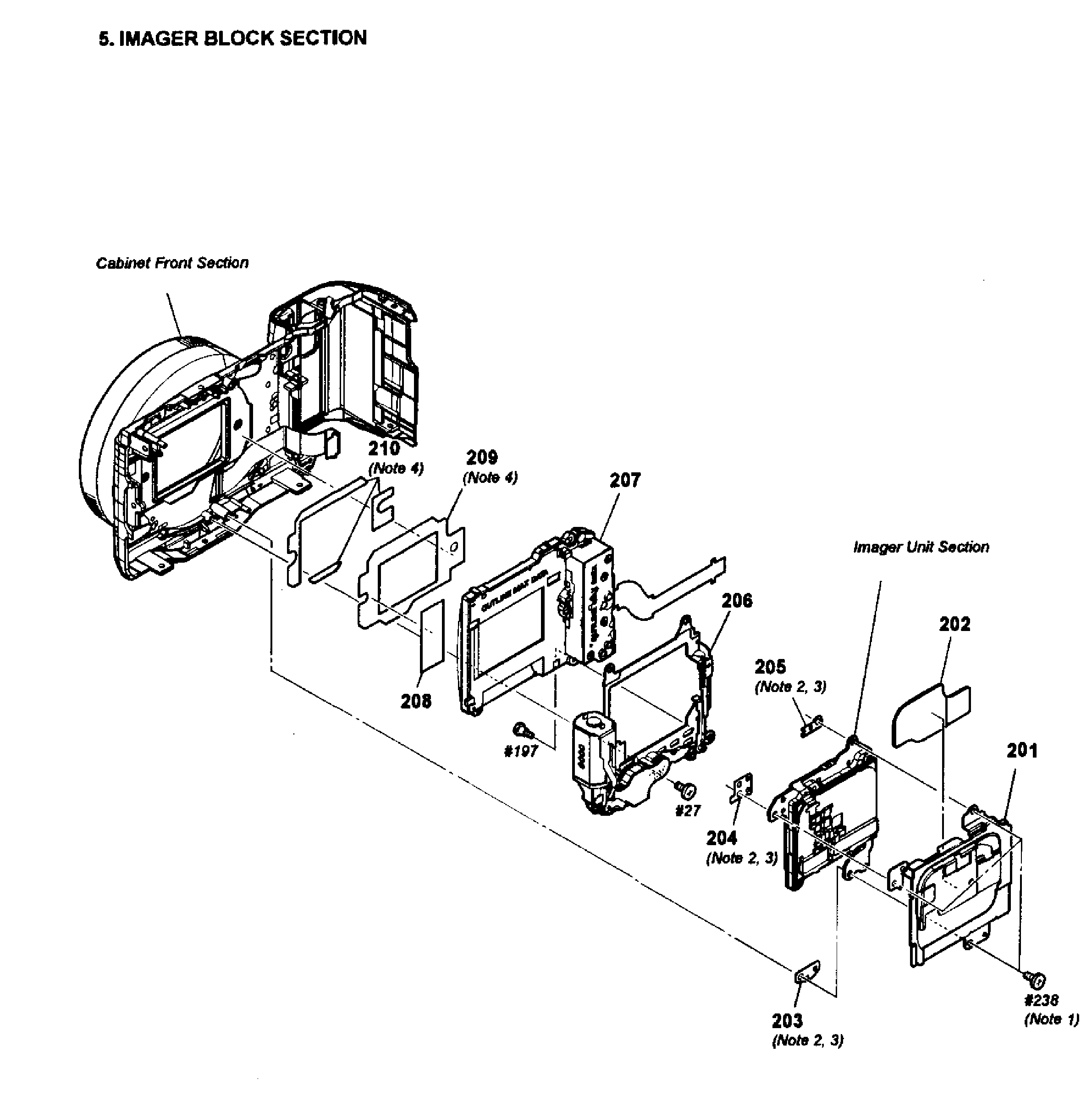

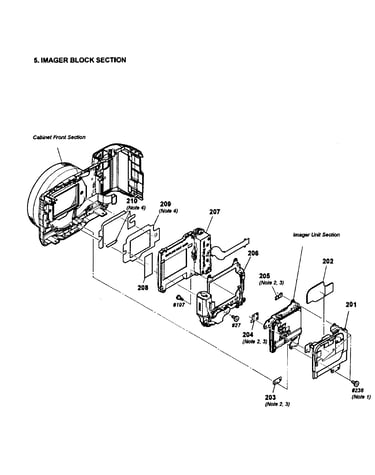

Im Ir Glas A1817089A
#252

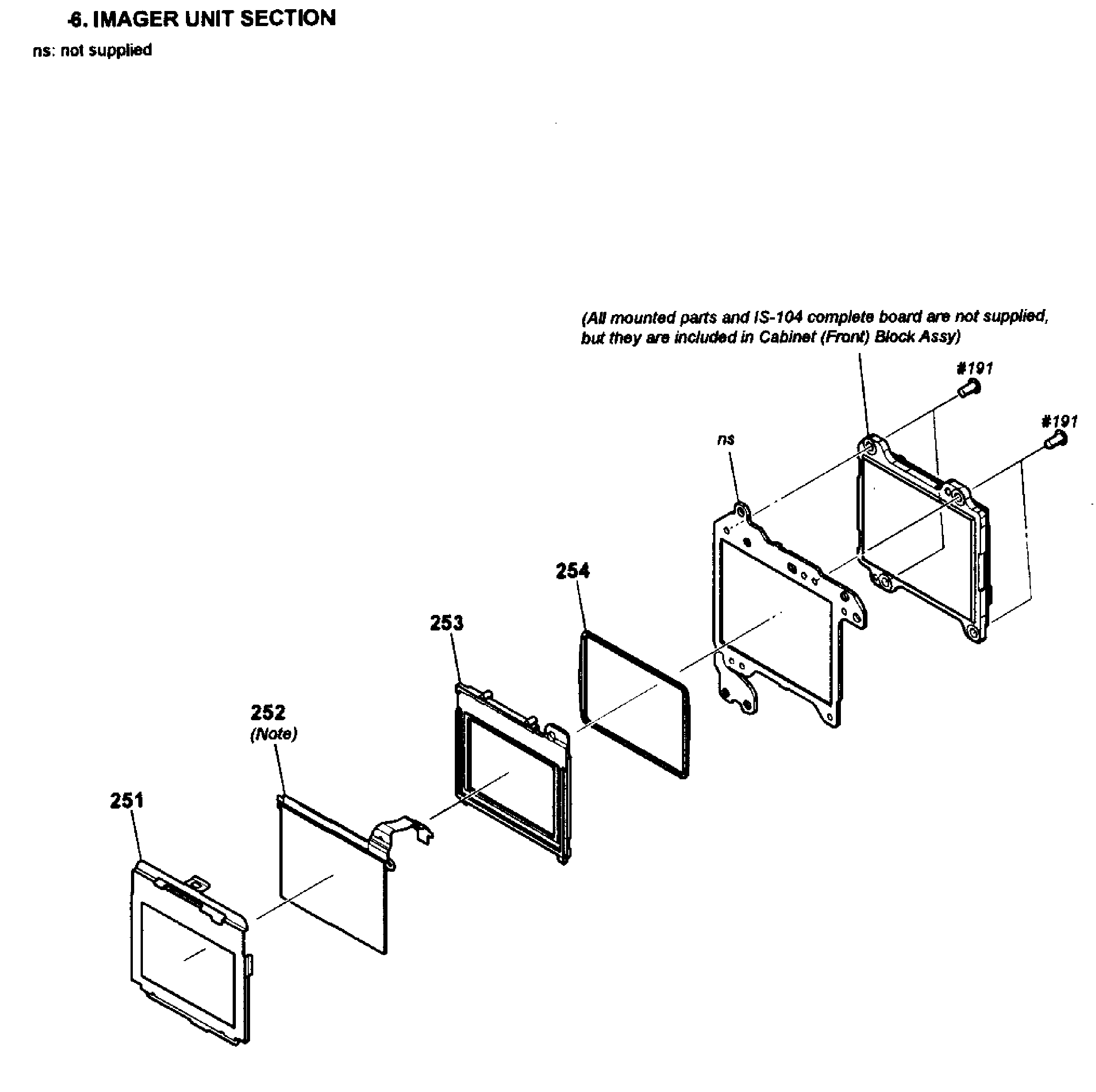

Imager unit diagram

Im ir glas

Part #A1817089A

$101.00
In Stock
Light Sheet 429758801
#315

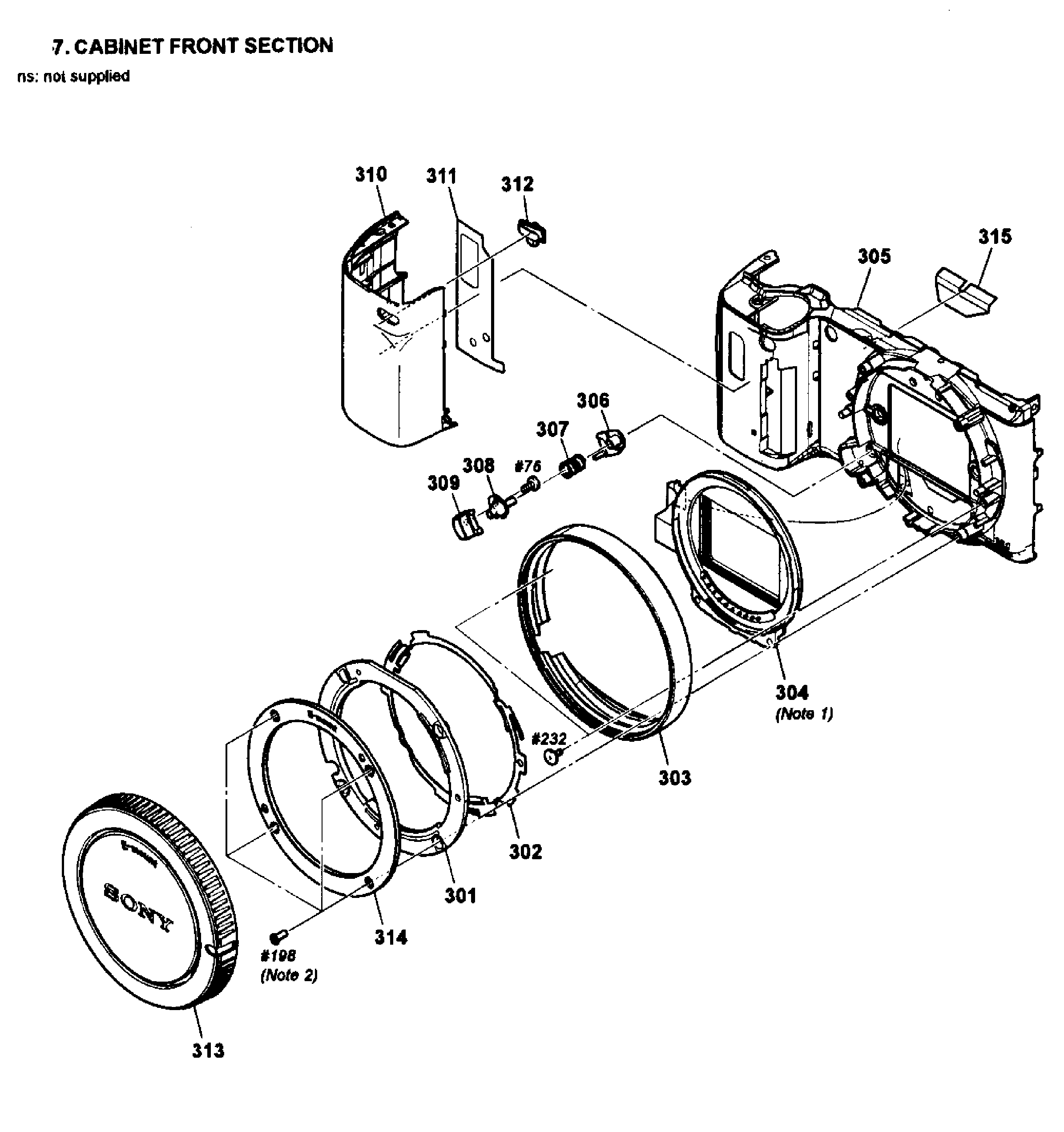

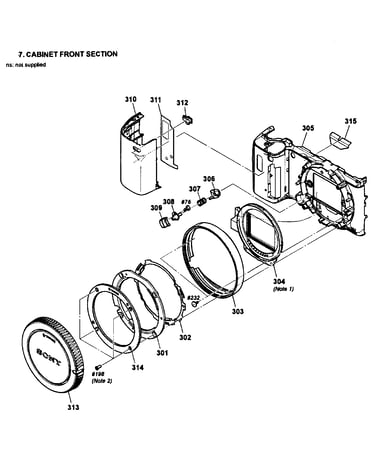

Front assy diagram

Light sheet

Part #429758801

This item is not returnable
$2.16
In Stock
Light Guide 429213301
#59

Rear assy diagram

Light guide

Part #429213301

This item is not returnable
$2.25
In Stock
Retainer 429214801
#12

Top/lcd asssy diagram

Retainer

Part #429214801

$8.93
In Stock
Battery Ch 148790721
#NI

Top/lcd asssy diagram

Battery ch

Part #148790721

$112.95
In Stock
Socket,bat 125192821
#BH10

Bt/rl assy diagram

Socket,bat

Part #125192821

This item is not returnable
$7.22
In Stock
