Model # 2570 Official Weed Eater blower

Here are the diagrams and repair parts for Official Weed Eater 2570 blower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 39 parts  |

Leaf Blower Vacuum Bag (replaces 5304025-33, 530-402533, 534-339900, 534339902, 534339907) 530402533
#15

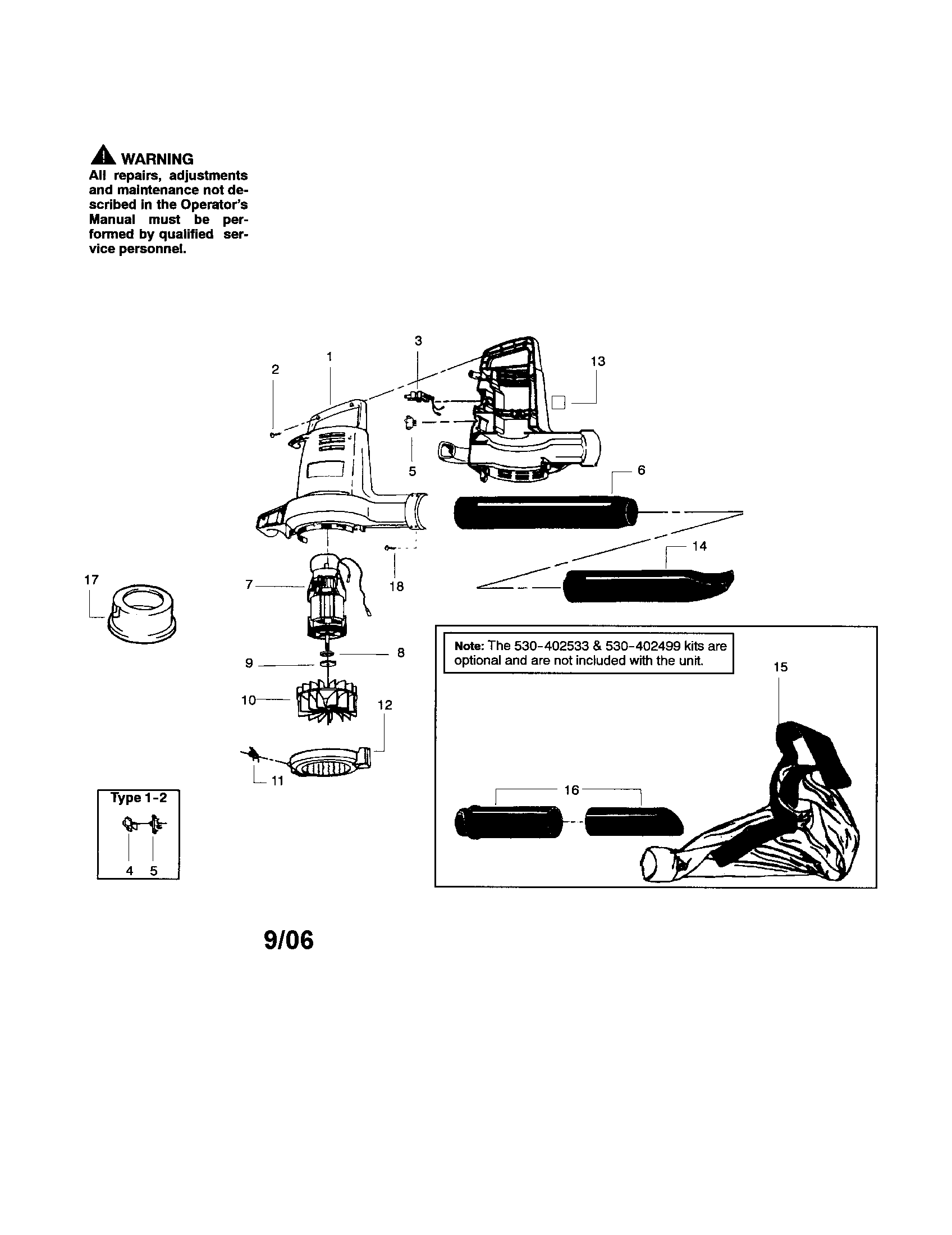

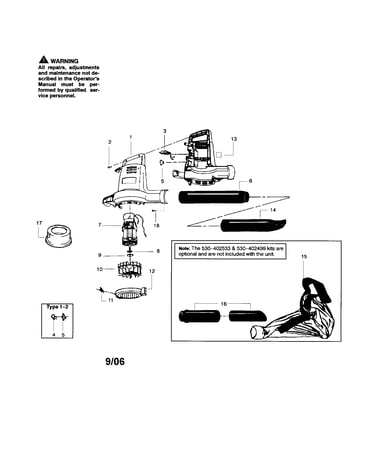

Housing/motor diagram

Leaf blower vacuum bag (replaces 5304025-33, 530-402533, 534-339900, 534339902, 534339907)

Part #530402533

BEST SELLER

Get free shipping with Automatic Reorder

$35.29
15% OFF Phone Price : $41.29
In Stock
Leaf Blower Attachment Kit Extension Tube (replaces 530-094425) 530094425
#12

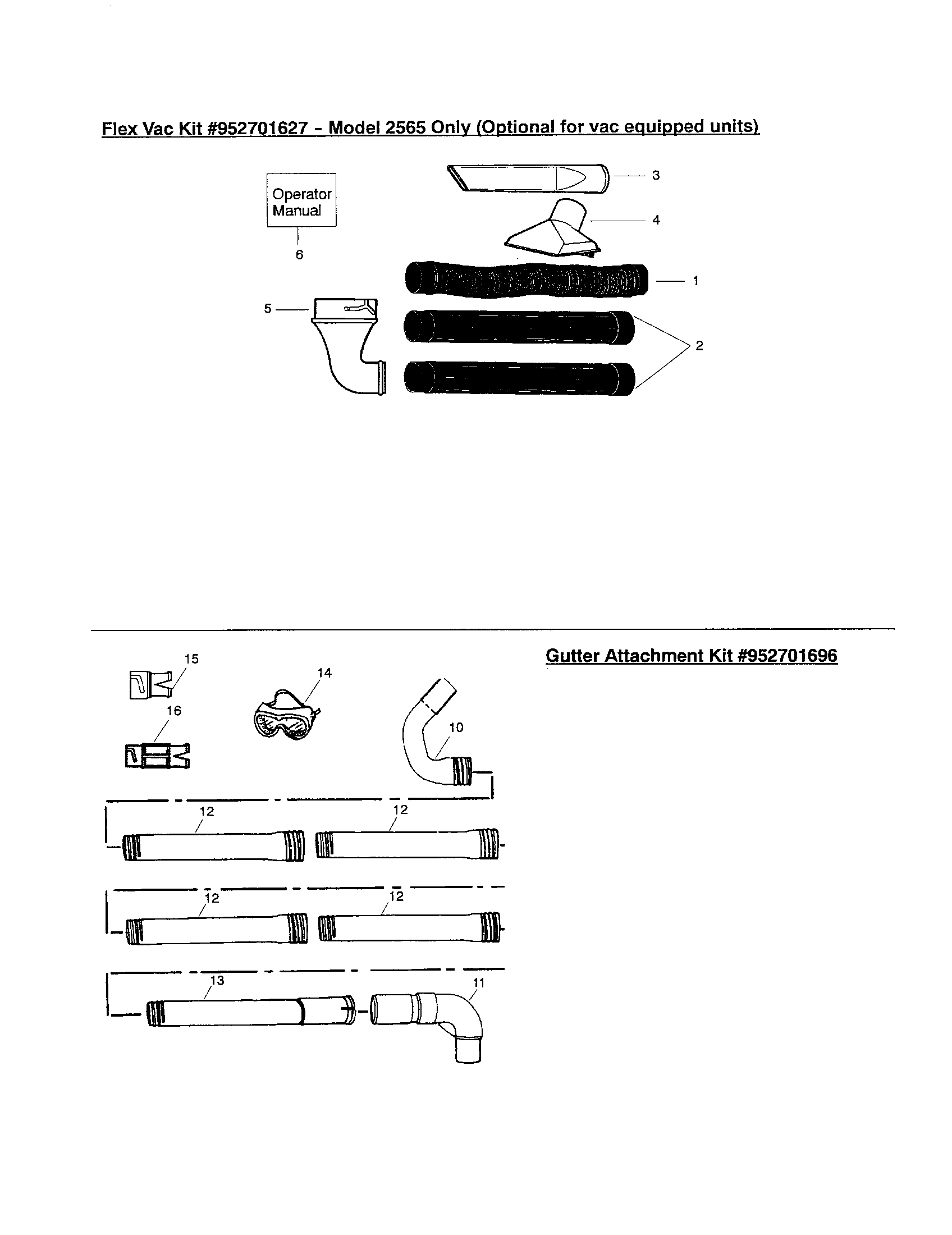

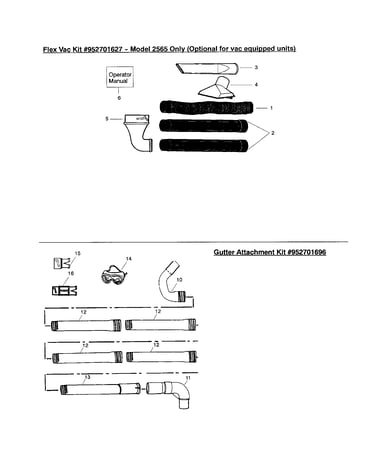

Flex vac kit/gutter attachment diagram

Leaf blower attachment kit extension tube (replaces 530-094425)

Part #530094425

This item is not returnable

Get free shipping with Automatic Reorder

$15.98
11% OFF Phone Price : $17.98
In Stock
Motor 530402374
#7

Housing/motor diagram

Motor

Part #530402374

The manufacturer no longer makes this part, and there's no substitute part

Impeller Bar 530402719
#10

Housing/motor diagram

Impeller bar

Part #530402719

The manufacturer no longer makes this part, and there's no substitute part

Lawn & Garden Equipment Screw 530015994
#18

Housing/motor diagram

Lawn & garden equipment screw

Part #530015994

The manufacturer no longer makes this part, and there's no substitute part

Leaf Blower Start/stop Switch Cover 530401008
#4

Housing/motor diagram

Leaf blower start/stop switch cover

Part #530401008

The manufacturer no longer makes this part, and there's no substitute part

Flex Adapter 530094923
#5

Flex vac kit/gutter attachment diagram

Flex adapter

Part #530094923

The manufacturer no longer makes this part, and there's no substitute part

Goggles 952701645
#14

Flex vac kit/gutter attachment diagram

Goggles

Part #952701645

The manufacturer no longer makes this part, and there's no substitute part

Gutter Attachment 952701696
#NI

Flex vac kit/gutter attachment diagram

Gutter attachment

Part #952701696

The manufacturer no longer makes this part, and there's no substitute part

Shaft Spacer 530404165
#8

Housing/motor diagram

Shaft spacer

Part #530404165

The manufacturer no longer makes this part, and there's no substitute part
