Maytag
Gas Water Heater

Model # HN5X50V980 Official Maytag water heater

Here are the diagrams and repair parts for Official Maytag HN5X50V980 water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 36 parts  |
Junction Cover 9002597
#17

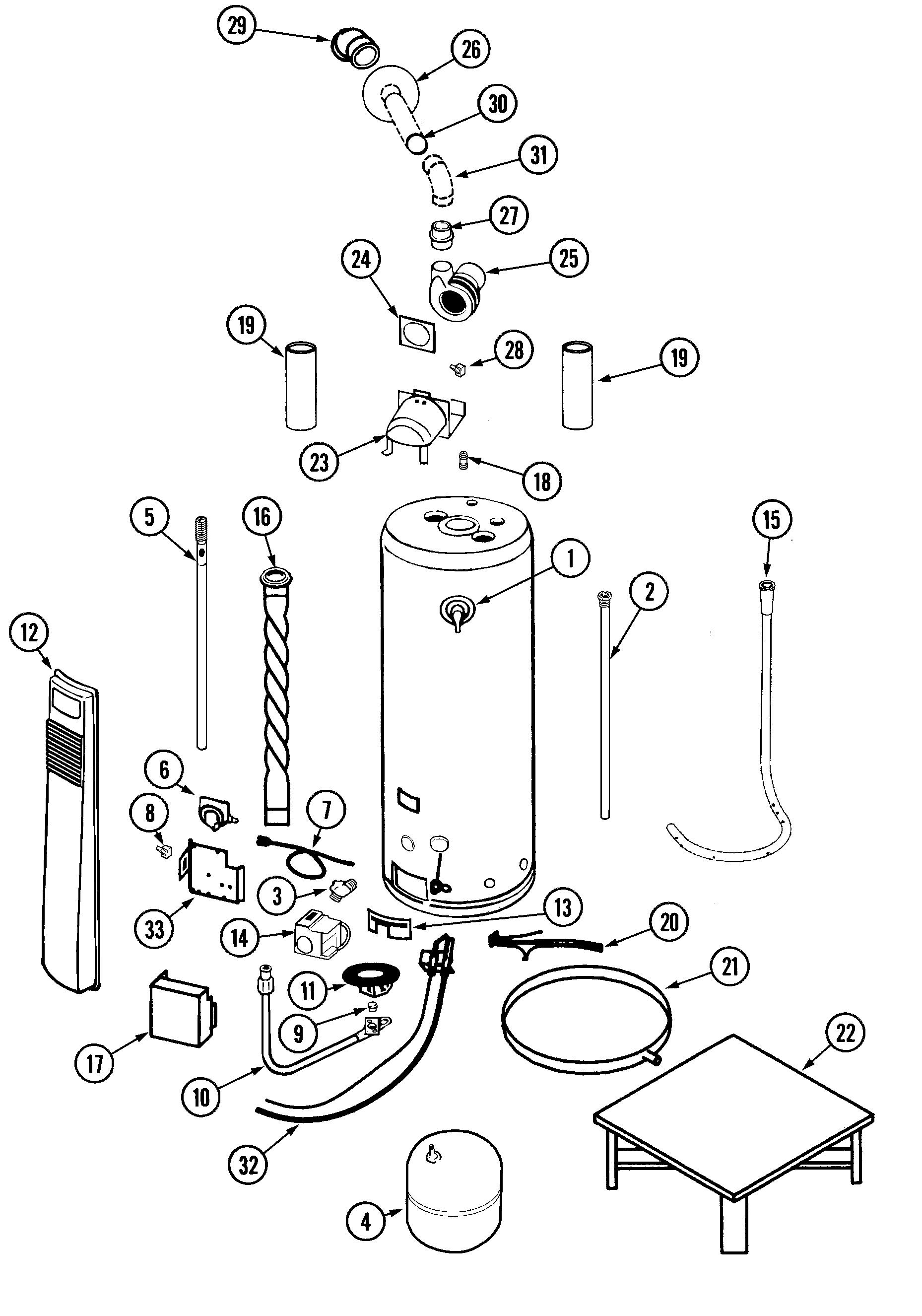

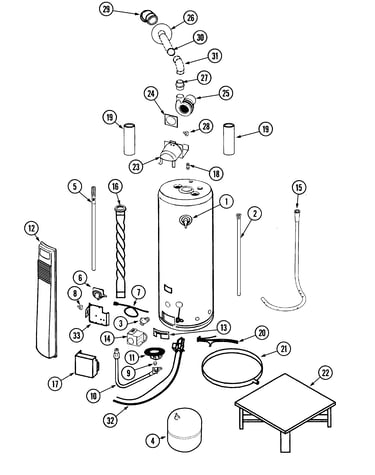

Body diagram

Junction cover

Part #9002597

$25.49
In Stock
Vent Pipe 9002106
#30

Body diagram

Vent pipe

Part #9002106

$78.96
In Stock
Burner Orifice 66001047
#9A

Body diagram

Burner orifice

Part #66001047

This item is not returnable
$4.20
In Stock
Ven Adapter 9002506
#27

Body diagram

Ven adapter

Part #9002506

The manufacturer no longer makes this part, and there's no substitute part

Manifold 9002516
#10

Body diagram

Manifold

Part #9002516

The manufacturer no longer makes this part, and there's no substitute part

Thermostat,2 66001081
#14

Body diagram

Thermostat,2

Part #66001081

The manufacturer no longer makes this part, and there's no substitute part

Temperature And Pressure Valve 66001010
#1

Body diagram

Temperature and pressure valve

Part #66001010

The manufacturer no longer makes this part, and there's no substitute part

Wiring Harness 9002520
#20

Body diagram

Wiring harness

Part #9002520

The manufacturer no longer makes this part, and there's no substitute part

Wall Collar 9001993
#26

Body diagram

Wall collar

Part #9001993

The manufacturer no longer makes this part, and there's no substitute part

Tank, Expans 66001013
#4

Body diagram

Tank, expans

Part #66001013

The manufacturer no longer makes this part, and there's no substitute part
