Model # B3CH048A25 Official York heat pump

Here are the diagrams and repair parts for Official York B3CH048A25 heat pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 137 parts  |
Belt 028-09573-000
#7A

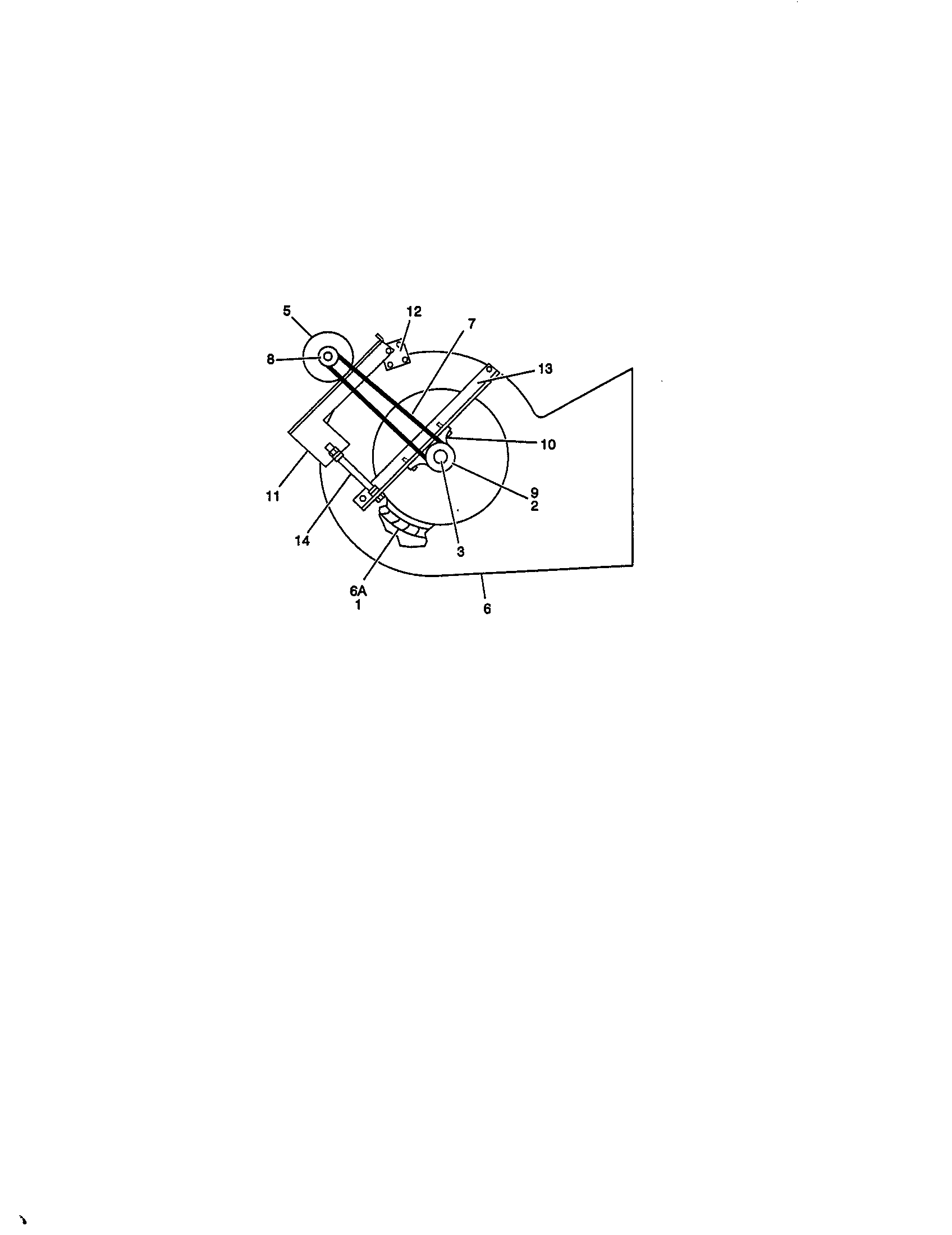

Belt drive option diagram

Belt

Part #028-09573-000

The manufacturer no longer makes this part, and there's no substitute part

Belt 028-09571-000
#7

Belt drive option diagram

Belt

Part #028-09571-000

The manufacturer no longer makes this part, and there's no substitute part

Fan Blade 026-25511-000
#51

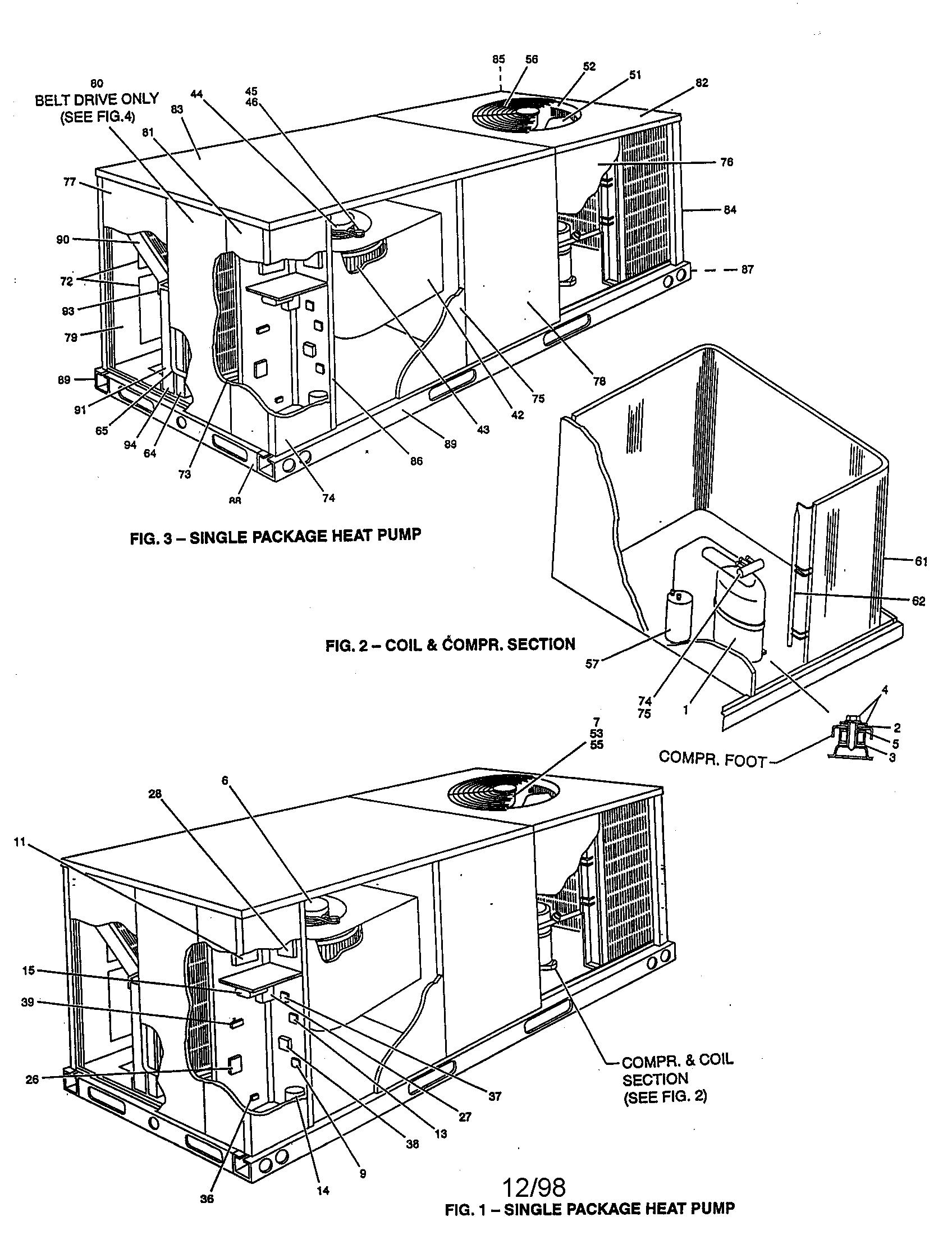

Replacement parts diagram

Fan blade

Part #026-25511-000

The manufacturer no longer makes this part, and there's no substitute part

Bracket, Bearing Support (2-req'd) 073-12444-700
#12

Belt drive option diagram

Bracket, bearing support (2-req'd)

Part #073-12444-700

The manufacturer no longer makes this part, and there's no substitute part

Relay 024-21292-000
#27

Replacement parts diagram

Relay

Part #024-21292-000

The manufacturer no longer makes this part, and there's no substitute part

Accumulator 026-25573-002
#57

Replacement parts diagram

Accumulator

Part #026-25573-002

The manufacturer no longer makes this part, and there's no substitute part

Motor, 1.0 Hp 230v (style A-b) 024-25870-700
#5

Belt drive option diagram

Motor, 1.0 hp 230v (style a-b)

Part #024-25870-700

The manufacturer no longer makes this part, and there's no substitute part

Pulley, Fixed Pitch 028-12388-700
#9

Belt drive option diagram

Pulley, fixed pitch

Part #028-12388-700

The manufacturer no longer makes this part, and there's no substitute part

Motor 024-24110-001
#7

Replacement parts diagram

Motor

Part #024-24110-001

The manufacturer no longer makes this part, and there's no substitute part

Accessories - Electrical Electric Heater (240v) 21.2kw (208/230-3-60) 2CE04502025

#NI

All parts diagram

Accessories - electrical electric heater (240v) 21.2kw (208/230-3-60)

Part #2CE04502025

The manufacturer no longer makes this part, and there's no substitute part
