Hoover
Upright Vacuum

Model # UH40115 Official Hoover vacuum

Here are the diagrams and repair parts for Official Hoover UH40115 vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

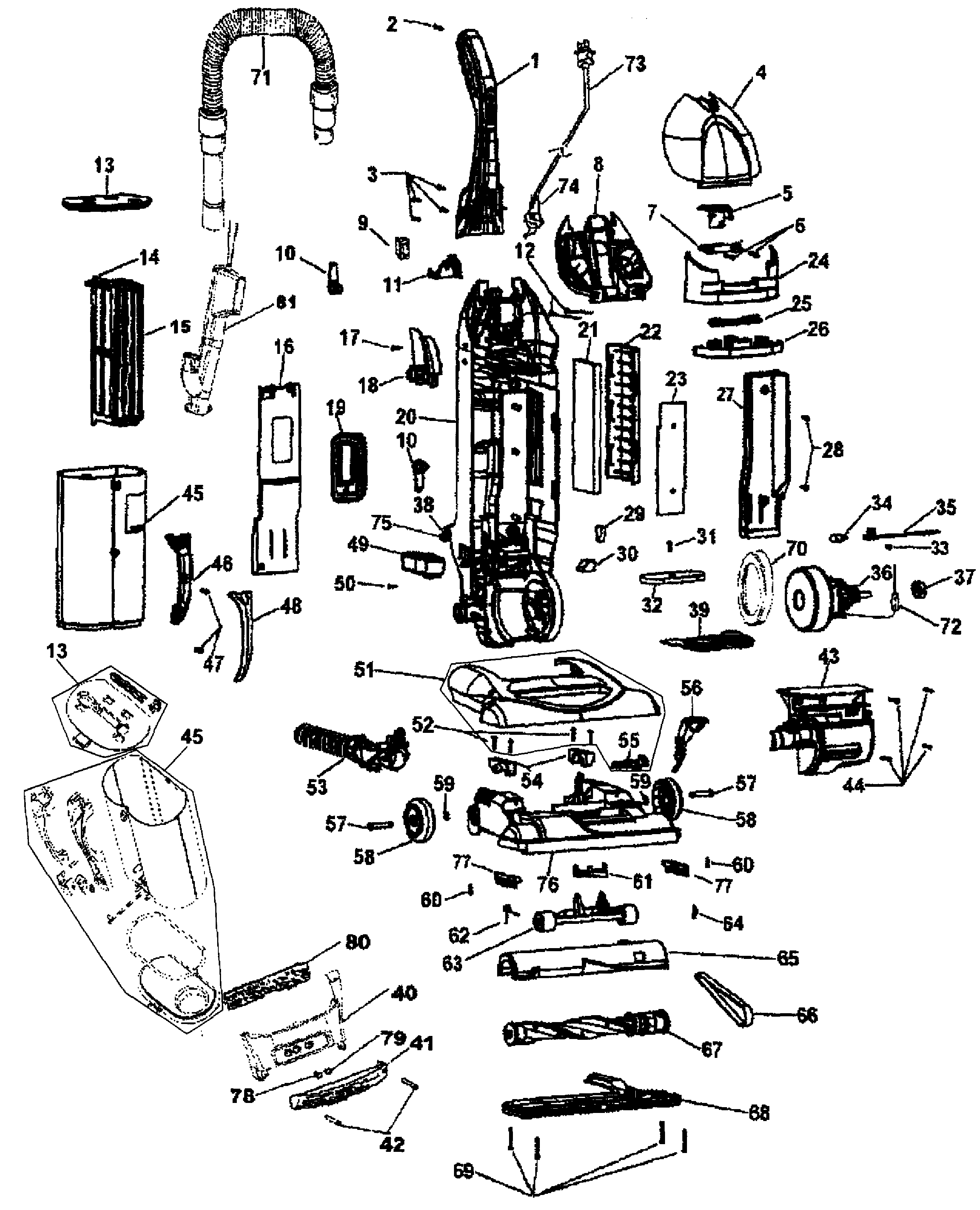

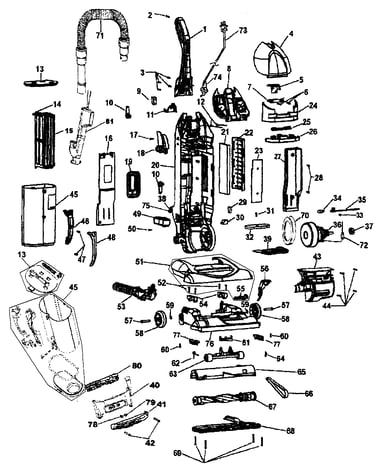

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 76 parts  |

Vacuum Wire Harness 47173027
#35

Vacuum diagram

Vacuum wire harness

Part #47173027

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Front Roller Torsion Spring 38355010
#62

Vacuum diagram

Vacuum front roller torsion spring

Part #38355010

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Air Flow Valve Assembly 43516010
#53

Vacuum diagram

Vacuum air flow valve assembly

Part #43516010

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 21447230
#44

Vacuum diagram

Vacuum screw

Part #21447230

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 21447236
#2

Vacuum diagram

Vacuum screw

Part #21447236

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar Belt 40201160
#66A

Vacuum diagram

Vacuum beater bar belt

Part #40201160

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Base Plate And Beater Bar Cover Assembly 37242135
#76

Vacuum diagram

Vacuum base plate and beater bar cover assembly

Part #37242135

The manufacturer no longer makes this part, and there's no substitute part

Lens Cover 39383107
#41

Vacuum diagram

Lens cover

Part #39383107

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 21447242
Vacuum screw

Part #21447242

The manufacturer no longer makes this part, and there's no substitute part

Foam 34131009
#29

Vacuum diagram

Foam

Part #34131009

The manufacturer no longer makes this part, and there's no substitute part
