Panasonic
Compact VHS-C Camcorder

Model # VM-L153 Official Panasonic camcorder

Here are the diagrams and repair parts for Official Panasonic VM-L153 camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 72 parts  |
Ring Panel LSGP0340
#394

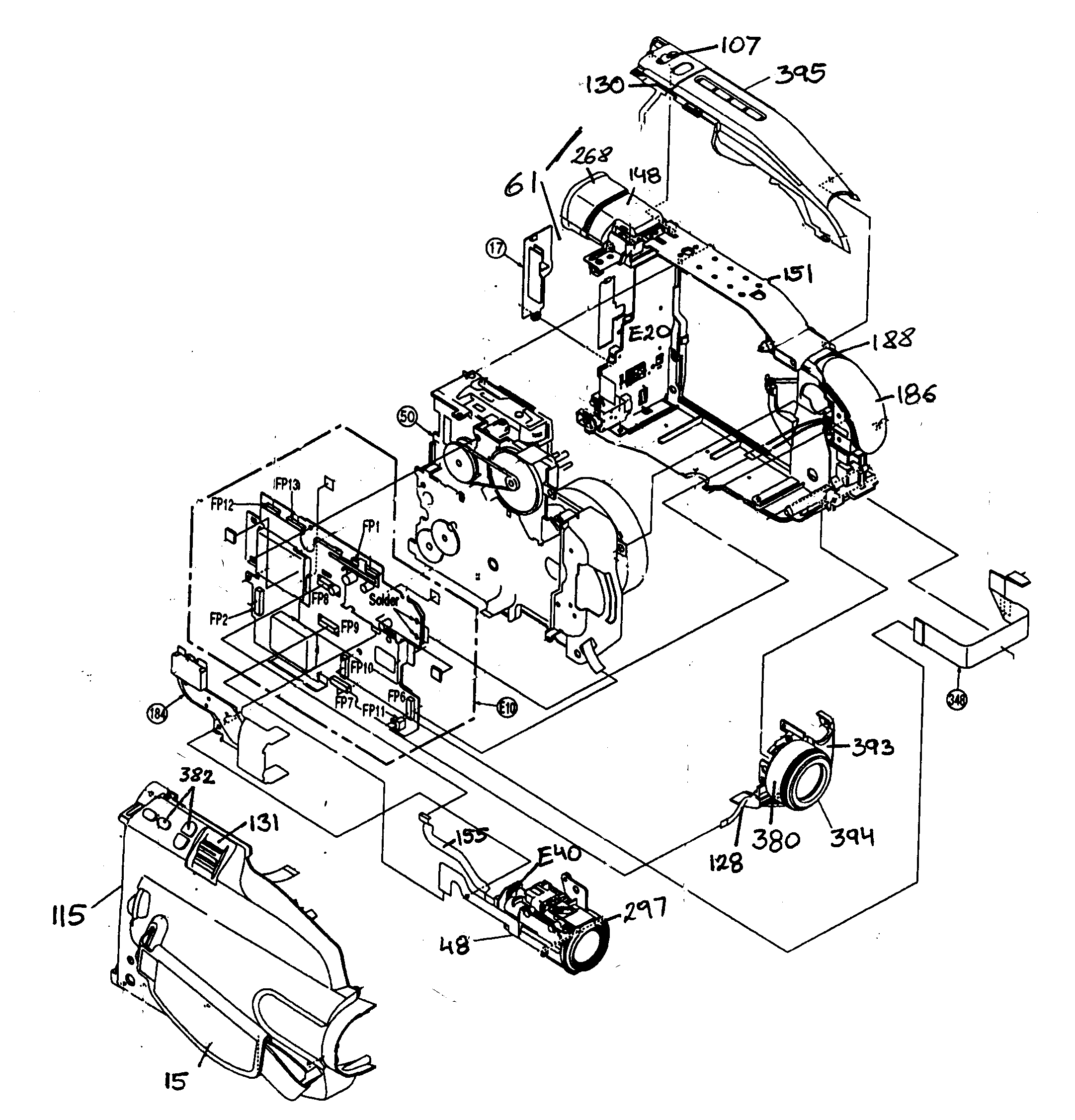

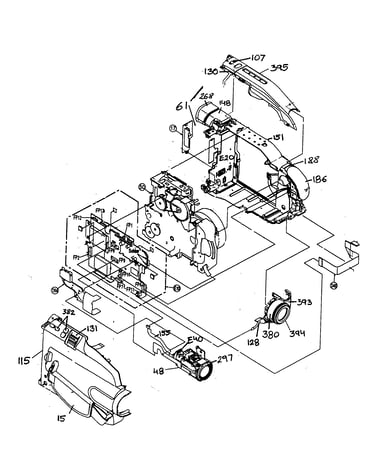

Cabinet parts diagram

Ring panel

Part #LSGP0340

The manufacturer no longer makes this part, and there's no substitute part

Eye View Finder Cover LSKF0477
#17

Cabinet parts diagram

Eye view finder cover

Part #LSKF0477

The manufacturer no longer makes this part, and there's no substitute part

Panasonic Lens Cap LSKM0957
#NI

Cabinet parts diagram

Panasonic lens cap

Part #LSKM0957

The manufacturer no longer makes this part, and there's no substitute part

U/d Button LSGU0558
#382

Cabinet parts diagram

U/d button

Part #LSGU0558

The manufacturer no longer makes this part, and there's no substitute part

Top Op LSEQ0664
#130

Cabinet parts diagram

Top op

Part #LSEQ0664

The manufacturer no longer makes this part, and there's no substitute part

Reflection Light LSMR0018
#188

Cabinet parts diagram

Reflection light

Part #LSMR0018

The manufacturer no longer makes this part, and there's no substitute part

Flex Board LSEK0504
#NI

Cabinet parts diagram

Flex board

Part #LSEK0504

The manufacturer no longer makes this part, and there's no substitute part

Panasonic Microphone LSXM0030
#128

Cabinet parts diagram

Panasonic microphone

Part #LSXM0030

The manufacturer no longer makes this part, and there's no substitute part

Panasonic Lcd Shaft LSXA0492
#366

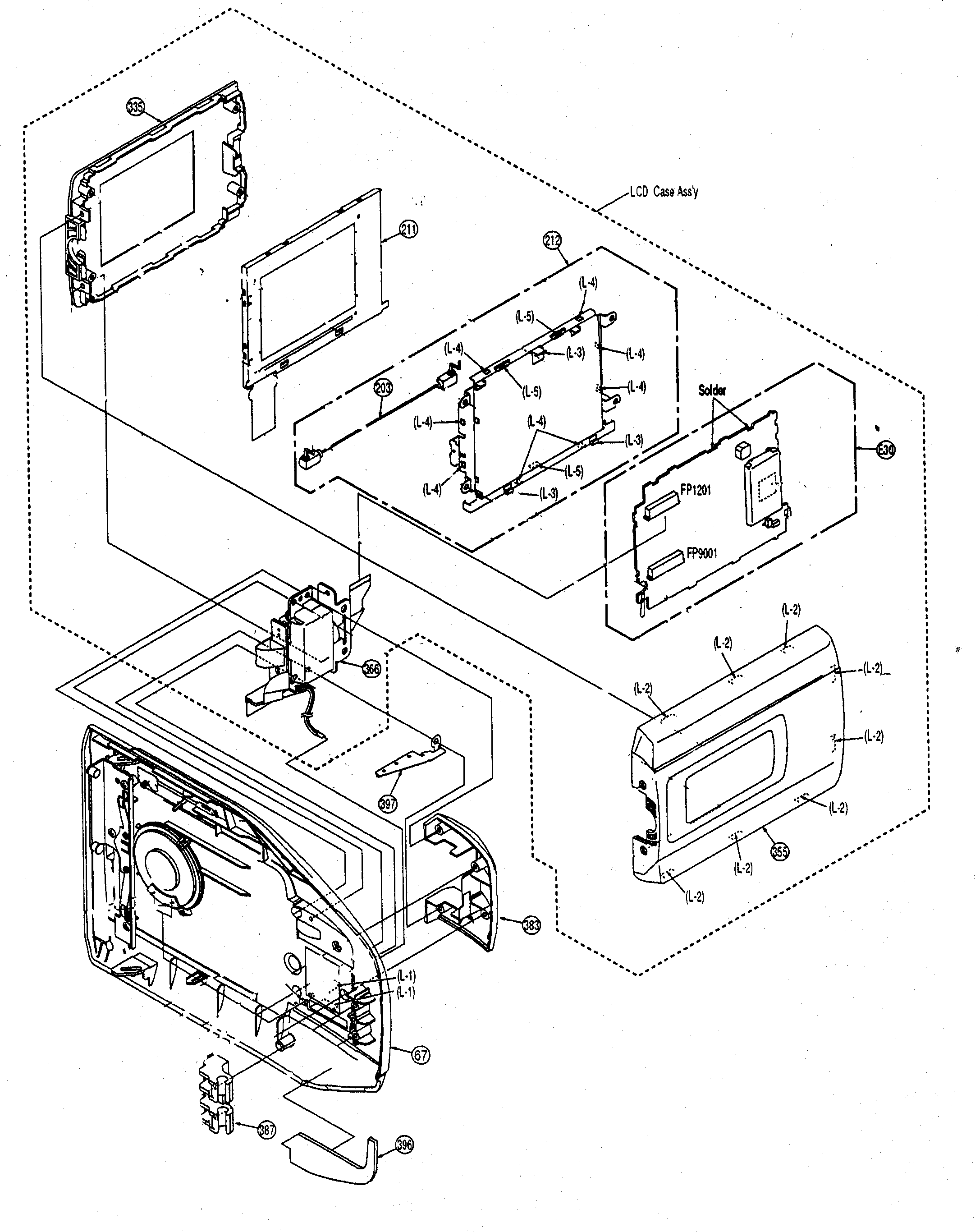

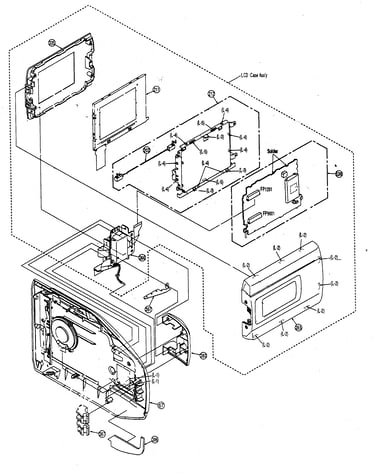

Lcd assy diagram

Panasonic lcd shaft

Part #LSXA0492

The manufacturer no longer makes this part, and there's no substitute part

Panasonic Cover LSKM0925
#383

Lcd assy diagram

Panasonic cover

Part #LSKM0925

The manufacturer no longer makes this part, and there's no substitute part
