Goldstar
Room Air Conditioner

Model # GA-122A Official Goldstar room air conditioner

Here are the diagrams and repair parts for Official Goldstar GA-122A room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

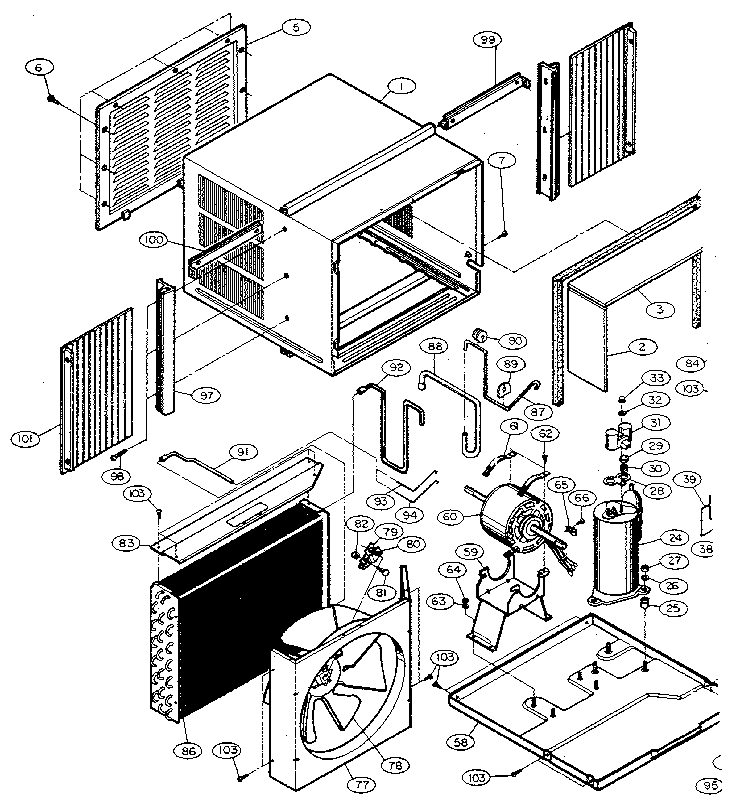

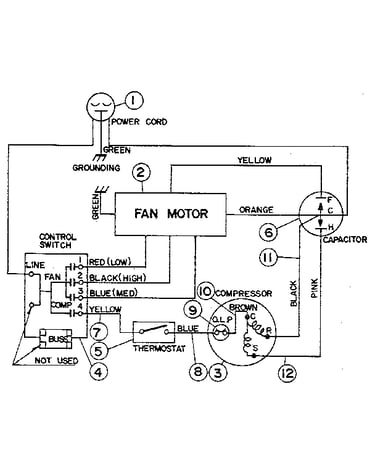

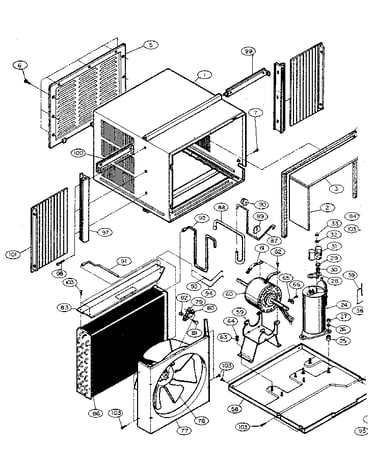

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 104 parts  |
Screw TTQ2239J
Screw

Part #TTQ2239J

Replaced by #8169474

?
Manufacturer substitution
This part replaces TTQ2239J. Substitute parts can look different from the original.
This item is not returnable
$5.24
In Stock
Nut 4H00947A
#33

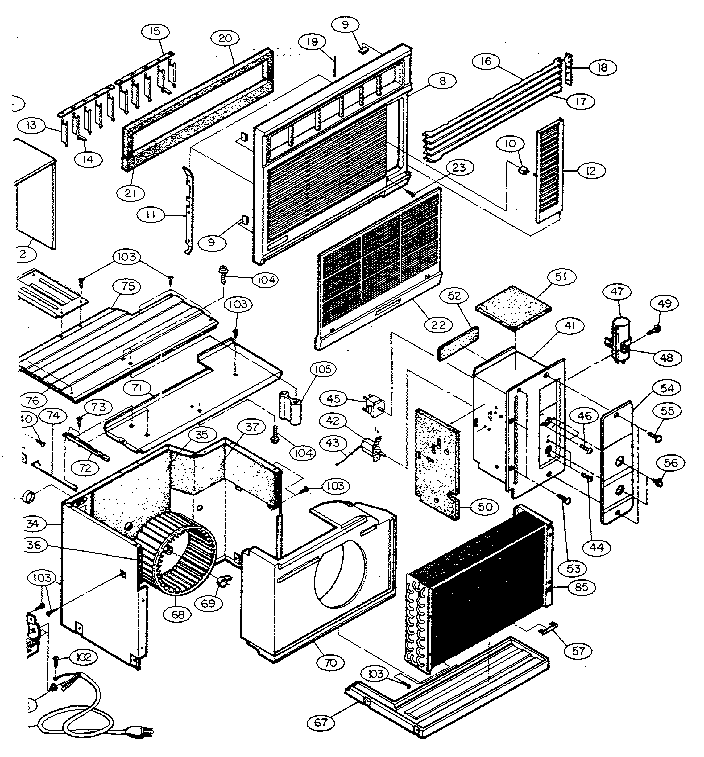

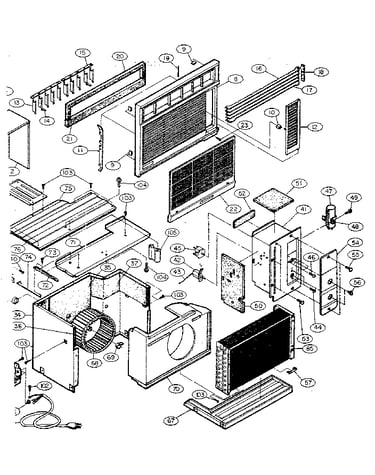

Non-functional replacement parts diagram

Nut

Part #4H00947A

The manufacturer no longer makes this part, and there's no substitute part

Knob 4H00822E
#56

Non-functional replacement parts diagram

Knob

Part #4H00822E

Replaced by #4941A30004A

?
Manufacturer substitution
This part replaces 4H00822E. Substitute parts can look different from the original.
This item is not returnable
$3.99
In Stock
Compressor 2H00906A
Compressor

Part #2H00906A

Replaced by #2520UKWC2GA

?
Manufacturer substitution
This part replaces 2H00906A. Substitute parts can look different from the original.
$368.78
In Stock
Washer 4H00972A
#26

Non-functional replacement parts diagram

Washer

Part #4H00972A

The manufacturer no longer makes this part, and there's no substitute part

Capillary 2 3H01500A
#94

Non-functional replacement parts diagram

Capillary 2

Part #3H01500A

The manufacturer no longer makes this part, and there's no substitute part

Capillary 4H00300K
#43

Non-functional replacement parts diagram

Capillary

Part #4H00300K

The manufacturer no longer makes this part, and there's no substitute part

Cabinet Weld Asm 2H00932A
#1

Non-functional replacement parts diagram

Cabinet weld asm

Part #2H00932A

The manufacturer no longer makes this part, and there's no substitute part

Screw Damper 4H01431A
#73

Non-functional replacement parts diagram

Screw damper

Part #4H01431A

The manufacturer no longer makes this part, and there's no substitute part

Nut 4H00228A
#82

Non-functional replacement parts diagram

Nut

Part #4H00228A

The manufacturer no longer makes this part, and there's no substitute part
