Model # 260300600 Official LXI radio & quartz clock

Here are the diagrams and repair parts for Official LXI 260300600 radio & quartz clock, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 170 parts  |
E-ring 29H1001E
#112

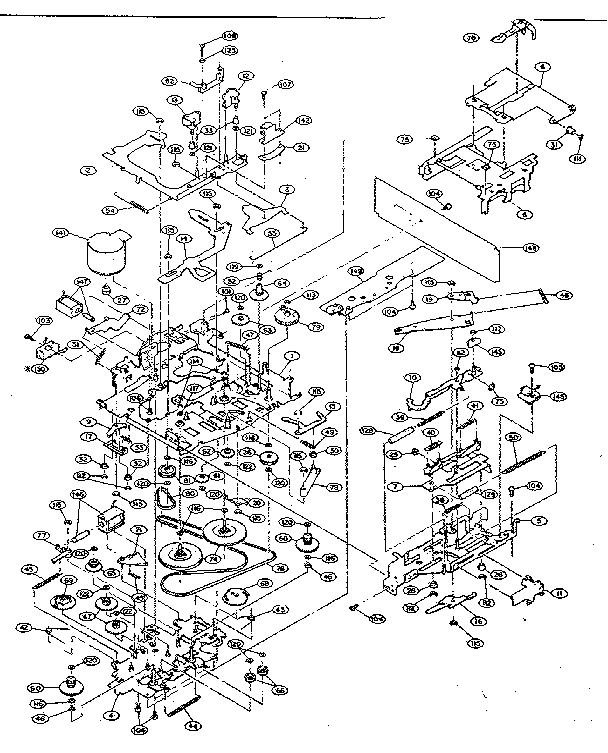

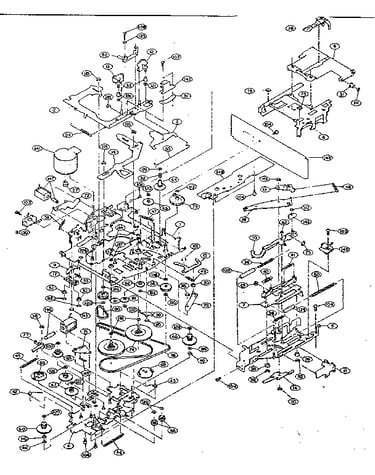

Cassette deck mechanism 51146 diagram

E-ring

Part #29H1001E

The manufacturer no longer makes this part, and there's no substitute part

Crank Assembly 5M11963A
#8

Cassette deck mechanism 51146 diagram

Crank assembly

Part #5M11963A

The manufacturer no longer makes this part, and there's no substitute part

Screw 2911203A
#104

Cassette deck mechanism 51146 diagram

Screw

Part #2911203A

The manufacturer no longer makes this part, and there's no substitute part

Flywheel 5M11806
#74

Cassette deck mechanism 51146 diagram

Flywheel

Part #5M11806

The manufacturer no longer makes this part, and there's no substitute part

Nose Piece 2204491

#NI

All parts diagram

Nose piece

Part #2204491

The manufacturer no longer makes this part, and there's no substitute part

Twist-on Wire Connector 2656012
#3

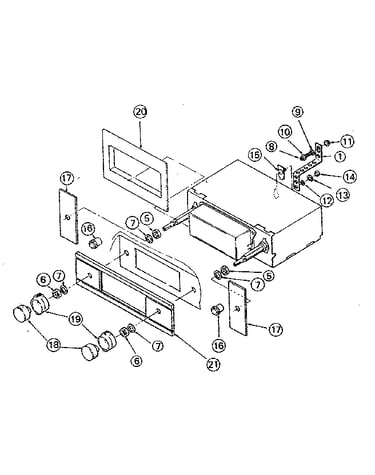

Unit diagram

Twist-on wire connector

Part #2656012

The manufacturer no longer makes this part, and there's no substitute part

Accessory Kit 29X8042

#NI

All parts diagram

Accessory kit

Part #29X8042

The manufacturer no longer makes this part, and there's no substitute part

Pc Board 3557510/3633810
#26

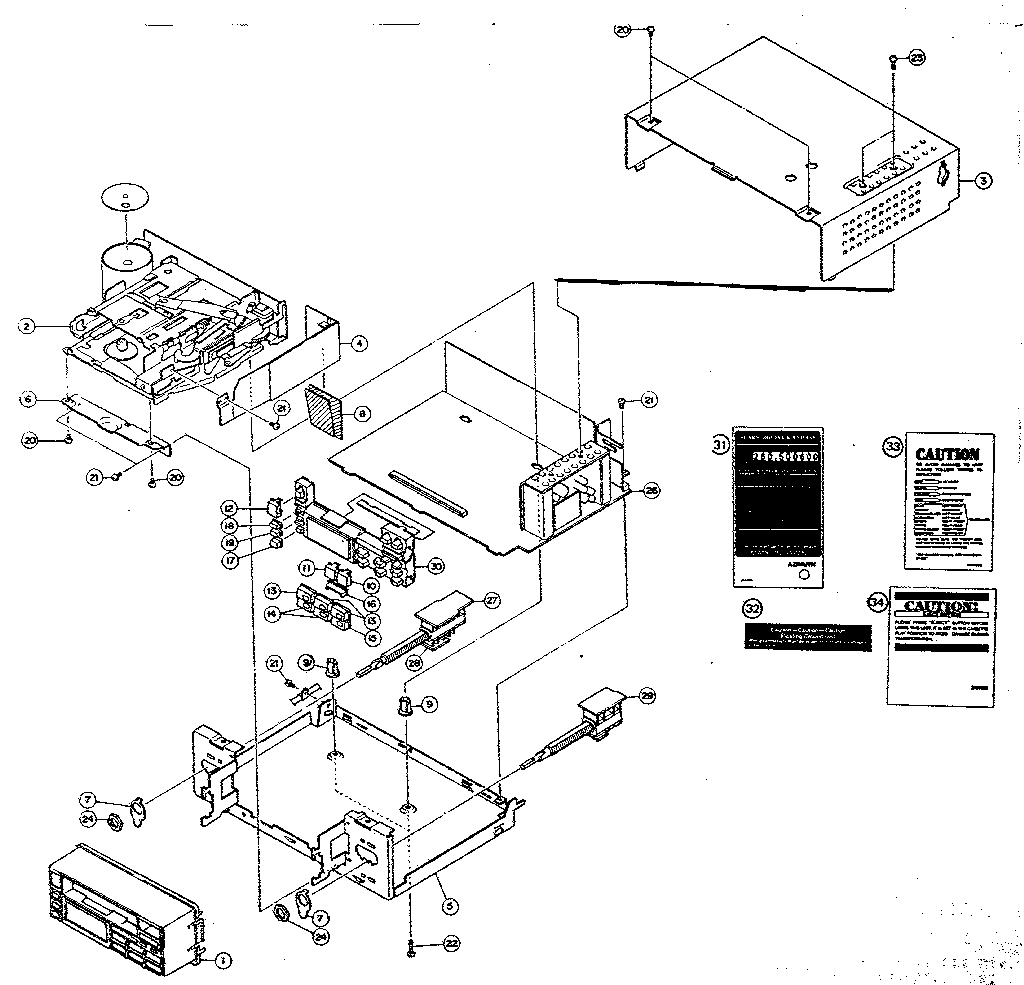

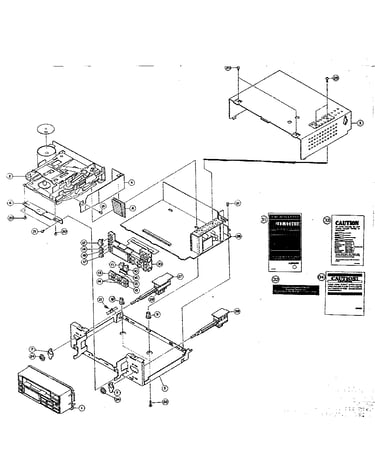

Cabinet & chassis diagram

Pc board

Part #3557510/3633810

The manufacturer no longer makes this part, and there's no substitute part

Sticker 28C1047
#32

Cabinet & chassis diagram

Sticker

Part #28C1047

The manufacturer no longer makes this part, and there's no substitute part

Connector 196236810

#NI

All parts diagram

Connector

Part #196236810

The manufacturer no longer makes this part, and there's no substitute part
