Model # 31585730 Official Craftsman 13" hedge trimmer

Here are the diagrams and repair parts for Official Craftsman 31585730 13" hedge trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 44 parts  |
Screw 1-930993-01
#38

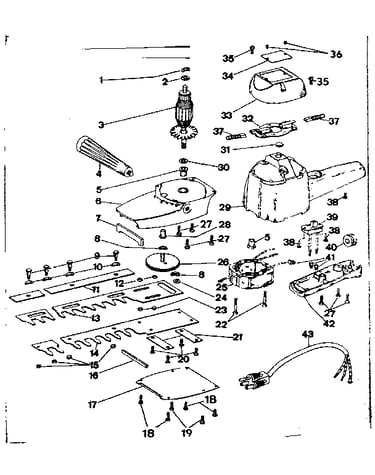

Unit parts diagram

Screw

Part #1-930993-01

The manufacturer no longer makes this part, and there's no substitute part

Field Core 3-616214-01
#25

Unit parts diagram

Field core

Part #3-616214-01

The manufacturer no longer makes this part, and there's no substitute part

Ecc. Washer 1-622579-00
#24

Unit parts diagram

Ecc. washer

Part #1-622579-00

The manufacturer no longer makes this part, and there's no substitute part

Gr/pin Asy 1-616255-01
#26

Unit parts diagram

Gr/pin asy

Part #1-616255-01

The manufacturer no longer makes this part, and there's no substitute part

Flange Brg 1-614712-01
#28

Unit parts diagram

Flange brg

Part #1-614712-01

The manufacturer no longer makes this part, and there's no substitute part

Top Strap 2-616302-01
#11

Unit parts diagram

Top strap

Part #2-616302-01

The manufacturer no longer makes this part, and there's no substitute part

Screw 1-930150-09
#35

Unit parts diagram

Screw

Part #1-930150-09

The manufacturer no longer makes this part, and there's no substitute part

Shoulder Bolt 1-614590-02
#9

Unit parts diagram

Shoulder bolt

Part #1-614590-02

The manufacturer no longer makes this part, and there's no substitute part

End Cover 4-714018-05
#33

Unit parts diagram

End cover

Part #4-714018-05

The manufacturer no longer makes this part, and there's no substitute part

Mtr Hsg/brg 4-624987-11
#29

Unit parts diagram

Mtr hsg/brg

Part #4-624987-11

The manufacturer no longer makes this part, and there's no substitute part
