Model # NN-C867WV Official Panasonic microwave

Here are the diagrams and repair parts for Official Panasonic NN-C867WV microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

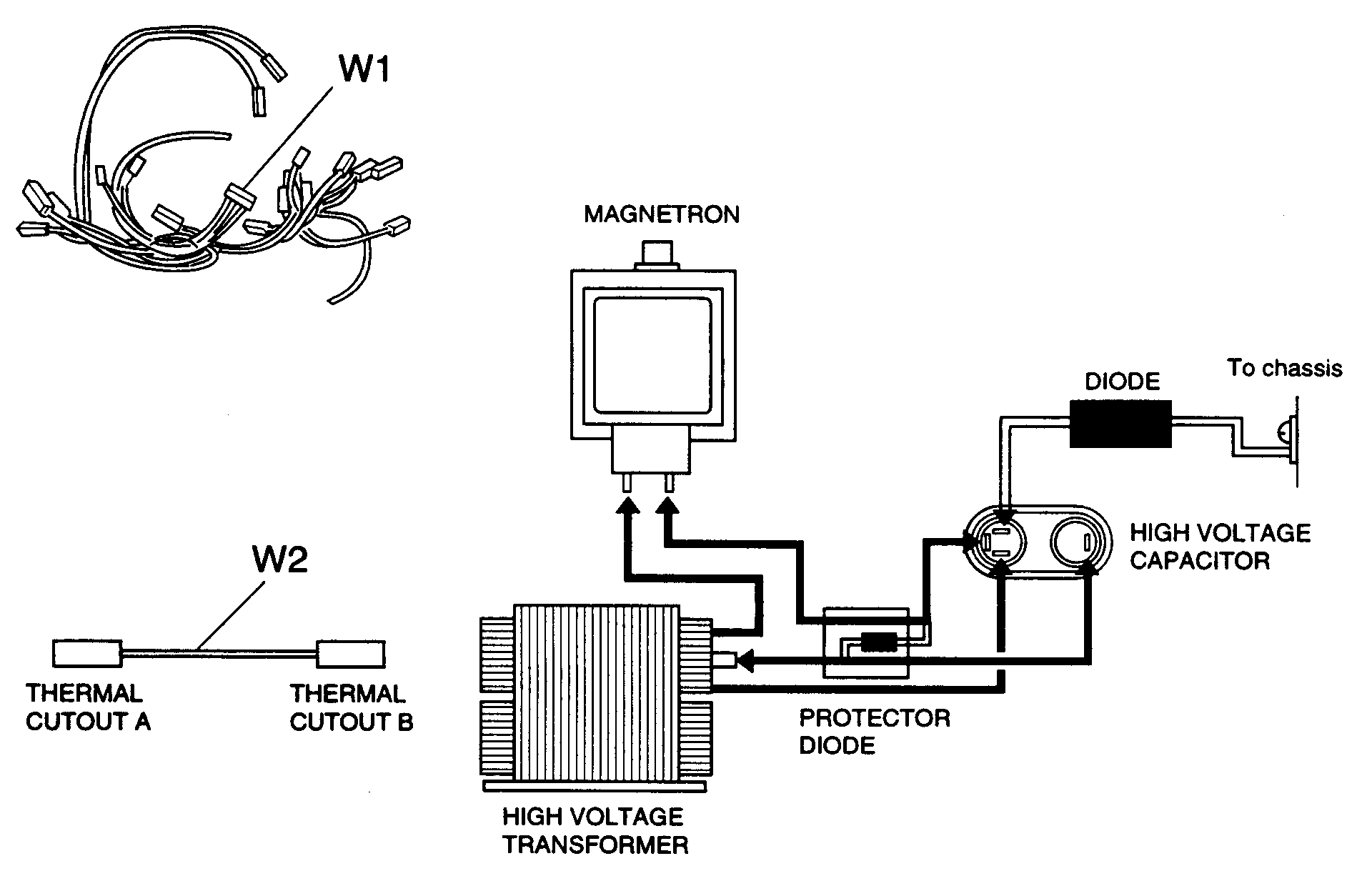

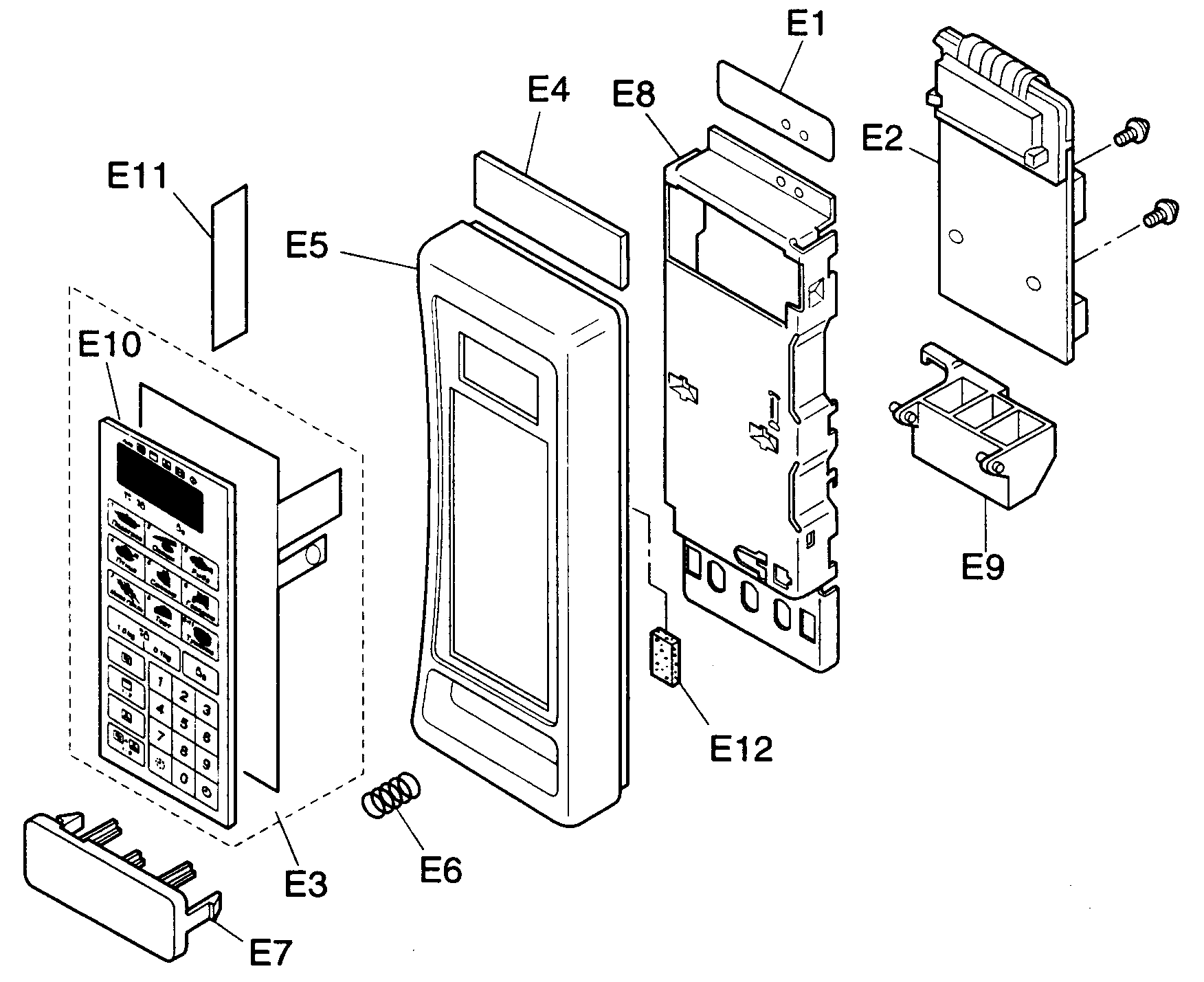

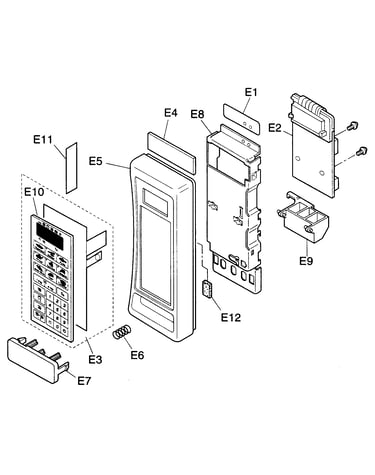

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 123 parts  |

Switch A61785180AP
#64

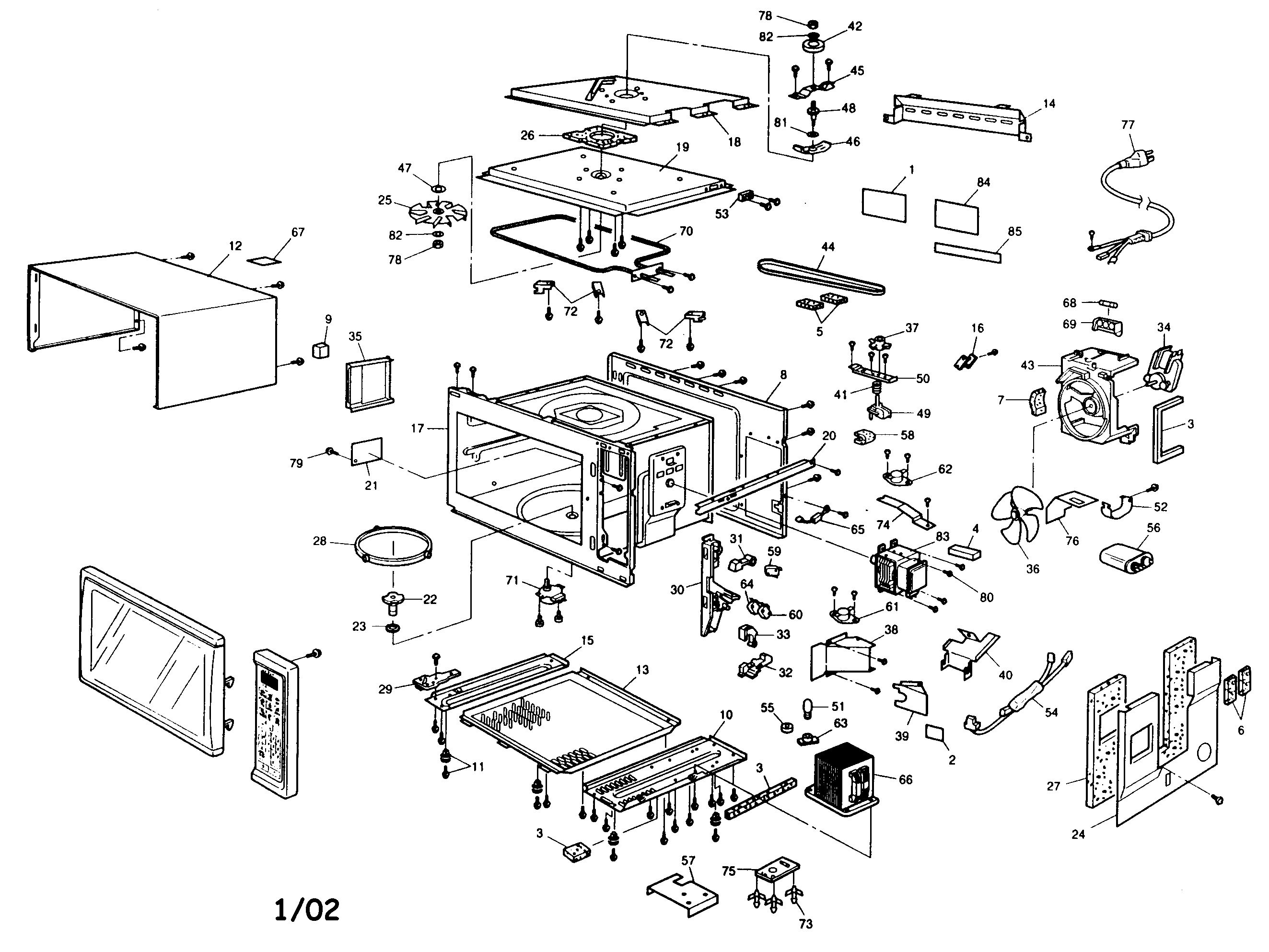

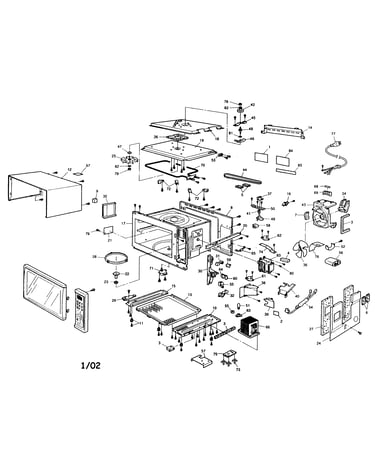

Cabinet parts diagram

Switch

Part #A61785180AP

Replaced by #501213

?
Manufacturer substitution
This part replaces A61785180AP. Substitute parts can look different from the original.
$7.69
12% OFF Phone Price : $8.69
In Stock
Panasonic Washer XWS4VL
#82

Cabinet parts diagram

Panasonic washer

Part #XWS4VL

This item is not returnable
In Stock
Panasonic Therml Cutou A61454000AP
#61

Cabinet parts diagram

Panasonic therml cutou

Part #A61454000AP

In Stock
Panasonic Cushion ANE0962000AH
#6

Cabinet parts diagram

Panasonic cushion

Part #ANE0962000AH

This item is not returnable
In Stock
Panasonic Hv Capacitor A60905500AP
#56

Cabinet parts diagram

Panasonic hv capacitor

Part #A60905500AP

In Stock
Panasonic Cutout Therm A61454650AP
#62

Cabinet parts diagram

Panasonic cutout therm

Part #A61454650AP

In Stock
Panasonic Motor A41799190AP
#49

Cabinet parts diagram

Panasonic motor

Part #A41799190AP

In Stock
Panasonic Door Key A30186660QP
#D6

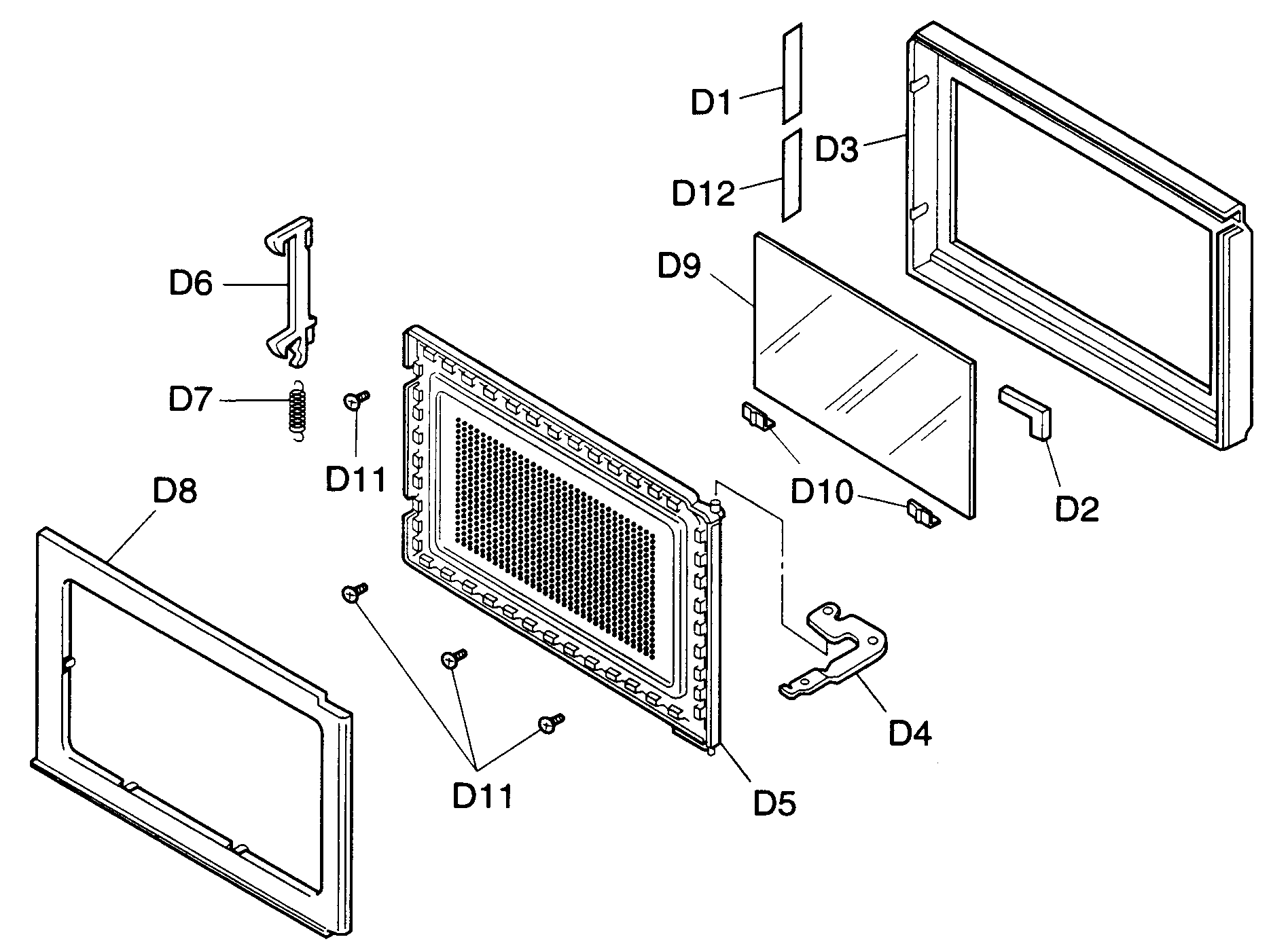

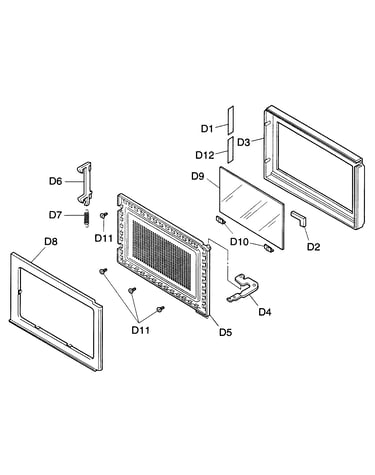

Door assy diagram

Panasonic door key

Part #A30186660QP

This item is not returnable
In Stock
Panasonic Panasonic Own Manual A00039190AP
#NI

Cabinet parts diagram

Panasonic panasonic own manual

Part #A00039190AP

In Stock
Panasonic Door Hook A3020-1200
#30

Cabinet parts diagram

Panasonic door hook

Part #A3020-1200

In Stock
