Weed Eater
Electric Leaf Blower

Model # WEBV215 Official Weed Eater blower

Here are the diagrams and repair parts for Official Weed Eater WEBV215 blower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 21 parts  |

Vacuum Bag 530095599
#15

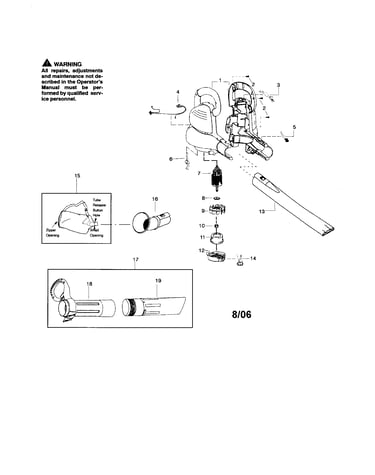

Blower diagram

Vacuum bag

Part #530095599

Replaced by #530095564

?
Manufacturer substitution
This part replaces 530095599. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$35.25
15% OFF Phone Price : $41.25
In Stock
Lock Nut 545006201
#10

Blower diagram

Lock nut

Part #545006201

Replaced by #545162101

?
Manufacturer substitution
This part replaces 545006201. Substitute parts can look different from the original.
This item is not returnable
In Stock
Vacuum Door 530404365
#12

Blower diagram

Vacuum door

Part #530404365

The manufacturer no longer makes this part, and there's no substitute part

Leaf Blower Inlet Restrictor 530403791
#11

Blower diagram

Leaf blower inlet restrictor

Part #530403791

The manufacturer no longer makes this part, and there's no substitute part

Electric Blower Wire Harness With Switch 530403778
#4

Blower diagram

Electric blower wire harness with switch

Part #530403778

The manufacturer no longer makes this part, and there's no substitute part

Leaf Blower Fan Assembly 530403771
#9

Blower diagram

Leaf blower fan assembly

Part #530403771

The manufacturer no longer makes this part, and there's no substitute part

Button Tube 530404367
#5

Blower diagram

Button tube

Part #530404367

The manufacturer no longer makes this part, and there's no substitute part

Lawn & Garden Equipment Screw 530016120
#2

Blower diagram

Lawn & garden equipment screw

Part #530016120

The manufacturer no longer makes this part, and there's no substitute part

Kit - Upper/lower Tube With Handle 530404380
#17

Blower diagram

Kit - upper/lower tube with handle

Part #530404380

The manufacturer no longer makes this part, and there's no substitute part

Door Spring 530403833
#14

Blower diagram

Door spring

Part #530403833

The manufacturer no longer makes this part, and there's no substitute part
