Kenmore
Countertop Microwave

Model # 7218911980 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 7218911980 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

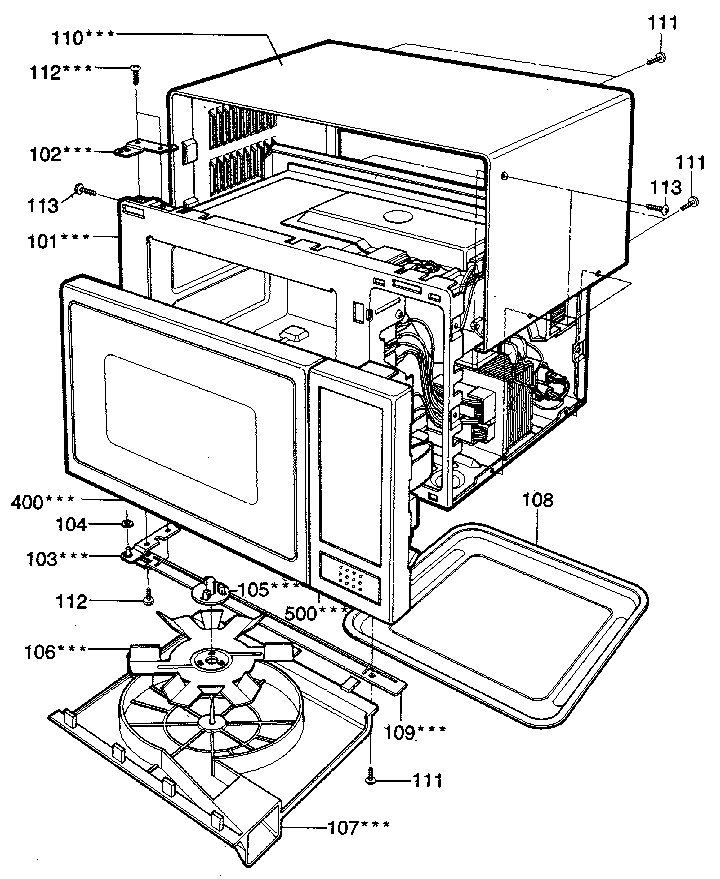

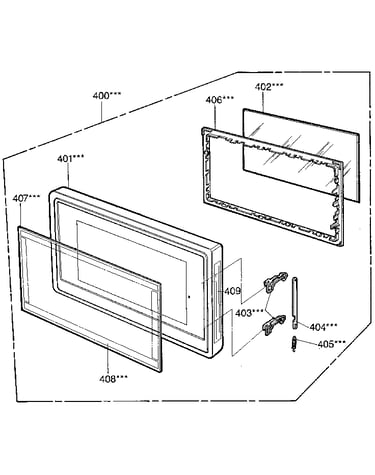

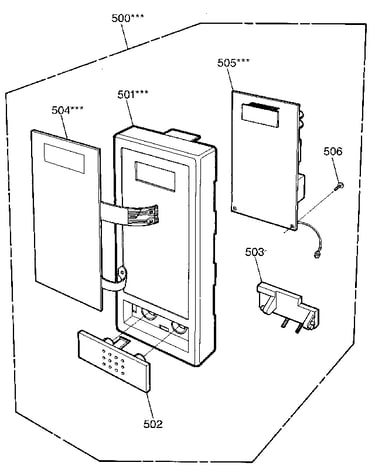

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 66 parts  |

Screw 500218
#223

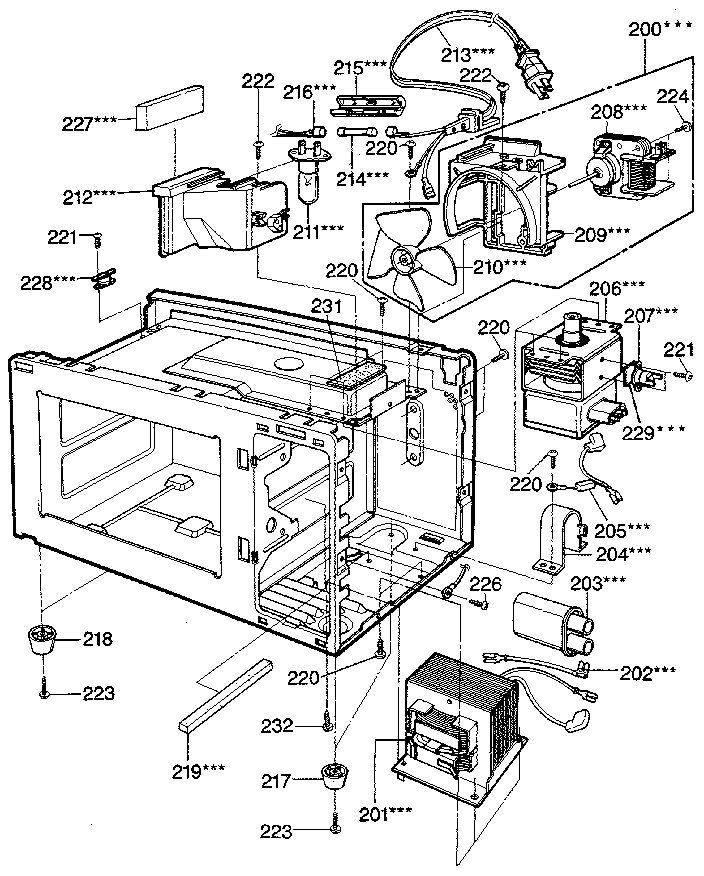

Switches and microwave diagram

Screw

Part #500218

Replaced by #1TTL0402818

?
Manufacturer substitution
This part replaces 500218. Substitute parts can look different from the original.
This item is not returnable
$6.13
14% OFF Phone Price : $7.13
In Stock
Thermostat 502420
#207

Switches and microwave diagram

Thermostat

Part #502420

Replaced by #6930W1A003K

?
Manufacturer substitution
This part replaces 502420. Substitute parts can look different from the original.
In Stock
Screw 500063
#221

Switches and microwave diagram

Screw

Part #500063

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 500603
#203

Switches and microwave diagram

Capacitor

Part #500603

The manufacturer no longer makes this part, and there's no substitute part

Switch 503389
#305

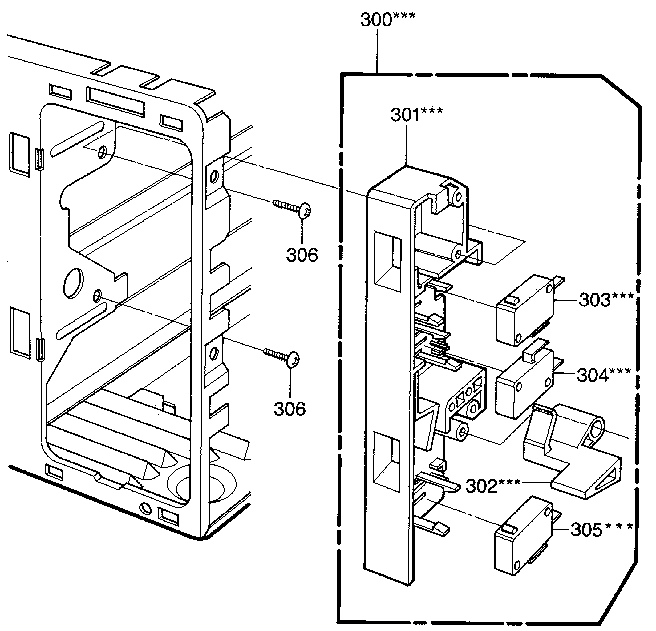

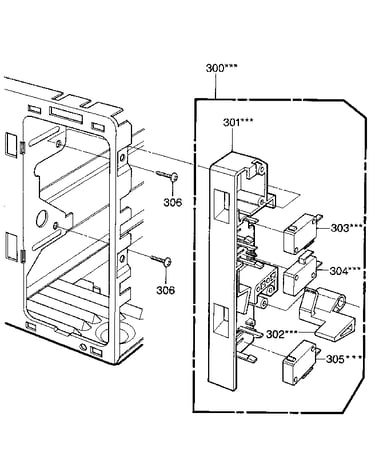

Latch diagram

Switch

Part #503389

The manufacturer no longer makes this part, and there's no substitute part

Oven Switch 503387
#303

Latch diagram

Oven switch

Part #503387

Replaced by #3B73362F

?
Manufacturer substitution
This part replaces 503387. Substitute parts can look different from the original.
$10.27
16% OFF Phone Price : $12.27
In Stock
Switch 503388
#304

Latch diagram

Switch

Part #503388

The manufacturer no longer makes this part, and there's no substitute part

Screw Specil 500396
#306

Latch diagram

Screw specil

Part #500396

The manufacturer no longer makes this part, and there's no substitute part

Screw 501098
#220

Switches and microwave diagram

Screw

Part #501098

Replaced by #1SBF0402418

?
Manufacturer substitution
This part replaces 501098. Substitute parts can look different from the original.
This item is not returnable
$6.47
13% OFF Phone Price : $7.47
In Stock
Fuse 15a 500081
#214

Switches and microwave diagram

Fuse 15a

Part #500081

The manufacturer no longer makes this part, and there's no substitute part
