GE
Countertop Microwave

Model # JES1143WW02 Official GE microwave

Here are the diagrams and repair parts for Official GE JES1143WW02 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 51 parts  |
Switch WB24X0801
#1445

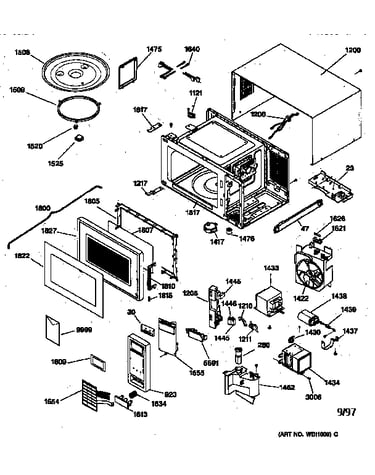

Microwave parts diagram

Switch

Part #WB24X0801

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X0801. Substitute parts can look different from the original.
BEST SELLER
$33.20 |
15% OFF Phone Price : $39.20
In Stock
Microwave High-voltage Capacitor (replaces Wb27x585) WB27X10011
#1438

Microwave parts diagram

Microwave high-voltage capacitor (replaces wb27x585)

Part #WB27X10011

BEST SELLER
$46.74 |
11% OFF Phone Price : $52.74
In Stock
Switch WB24X0800
#1446

Microwave parts diagram

Switch

Part #WB24X0800

Replaced by #WB24X830

?
Manufacturer substitution
This part replaces WB24X0800. Substitute parts can look different from the original.
BEST SELLER
$26.26 |
19% OFF Phone Price : $32.26
In Stock
Microwave High-voltage Diode (replaces Wb27x608) WB27X1160
#1439

Microwave parts diagram

Microwave high-voltage diode (replaces wb27x608)

Part #WB27X1160

BEST SELLER
$79.22 |
7% OFF Phone Price : $85.22
In Stock
Microwave Turntable Motor WB26X0172
#1417

Microwave parts diagram

Microwave turntable motor

Part #WB26X0172

Replaced by #WB26X172

?
Manufacturer substitution
This part replaces WB26X0172. Substitute parts can look different from the original.
$48.06 |
11% OFF Phone Price : $54.06
In Stock
Cooking Tray WB49X0682
#1508

Microwave parts diagram

Cooking tray

Part #WB49X0682

Replaced by #WB39X10003

?
Manufacturer substitution
This part replaces WB49X0682. Substitute parts can look different from the original.
$68.03 |
8% OFF Phone Price : $74.03
In Stock
Magnetron WB27X0950
#1434

Microwave parts diagram

Magnetron

Part #WB27X0950

The manufacturer no longer makes this part, and there's no substitute part

Body Latch Switch WB06X0401
#1205

Microwave parts diagram

Body latch switch

Part #WB06X0401

Replaced by #WB6X401

?
Manufacturer substitution
This part replaces WB06X0401. Substitute parts can look different from the original.
This item is not returnable
$5.49
In Stock
Jes1143ww 49-8710
#9999C

Microwave parts diagram

Jes1143ww

Part #49-8710

$8.49
In Stock
Lamp WB36X0904
#280

Microwave parts diagram

Lamp

Part #WB36X0904

Replaced by #WB36X10194

?
Manufacturer substitution
This part replaces WB36X0904. Substitute parts can look different from the original.
$36.47 |
14% OFF Phone Price : $42.47
In Stock
