Model # WLTL39092 Official Weslo cadence 1005 treadmill

Here are the diagrams and repair parts for Official Weslo WLTL39092 cadence 1005 treadmill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 104 parts  |
Treadmill Safety Key (replaces 125589, 153017) 119038
#1

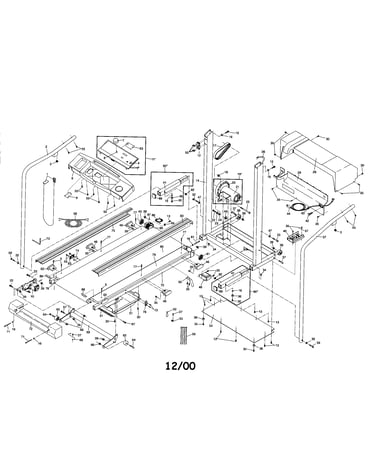

Frame diagram

Treadmill safety key (replaces 125589, 153017)

Part #119038

BEST SELLER
This item is not returnable
$3.14 |
24% OFF Phone Price : $4.14
In Stock
Belt 118016
#17

Frame diagram

Belt

Part #118016

Replaced by #224019

?
Manufacturer substitution
This part replaces 118016. Substitute parts can look different from the original.
BEST SELLER
$12.24 |
14% OFF Phone Price : $14.24
In Stock
Treadmill Walking Belt (replaces 137956, 189253, 205081) 142851
#80

Frame diagram

Treadmill walking belt (replaces 137956, 189253, 205081)

Part #142851

BEST SELLER
$62.49 |
9% OFF Phone Price : $68.49
In Stock
Treadmill Walking Belt Alignment Tool (replaces 161927) 128457
#73

Frame diagram

Treadmill walking belt alignment tool (replaces 161927)

Part #128457

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Treadmill Circuit Breaker, 15-amp (replaces 031103, 127202, 173322) 109382
#42

Frame diagram

Treadmill circuit breaker, 15-amp (replaces 031103, 127202, 173322)

Part #109382

This item is not returnable
$9.39 |
10% OFF Phone Price : $10.39
In Stock
Treadmill Line Filter 130993
#48

Frame diagram

Treadmill line filter

Part #130993

$34.19 |
15% OFF Phone Price : $40.19
In Stock
Magnet,rnd,m 100498
#87

Frame diagram

Magnet,rnd,m

Part #100498

Replaced by #113842

?
Manufacturer substitution
This part replaces 100498. Substitute parts can look different from the original.
This item is not returnable
$2.16
Back Order
Base End Cap 103833
#89

Frame diagram

Base end cap

Part #103833

This item is not returnable
$2.16
In Stock
Treadmill Rear Roller 141089
#76

Frame diagram

Treadmill rear roller

Part #141089

$43.39 |
12% OFF Phone Price : $49.39
In Stock
Treadmill Incline Wheel 132314
#38

Frame diagram

Treadmill incline wheel

Part #132314

This item is not returnable
$2.16
In Stock
