Model # HDC-TM80PK Official Panasonic video camera

Here are the diagrams and repair parts for Official Panasonic HDC-TM80PK video camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 13 parts  |

Panasonic Esd Fpc VWJ2260
#8

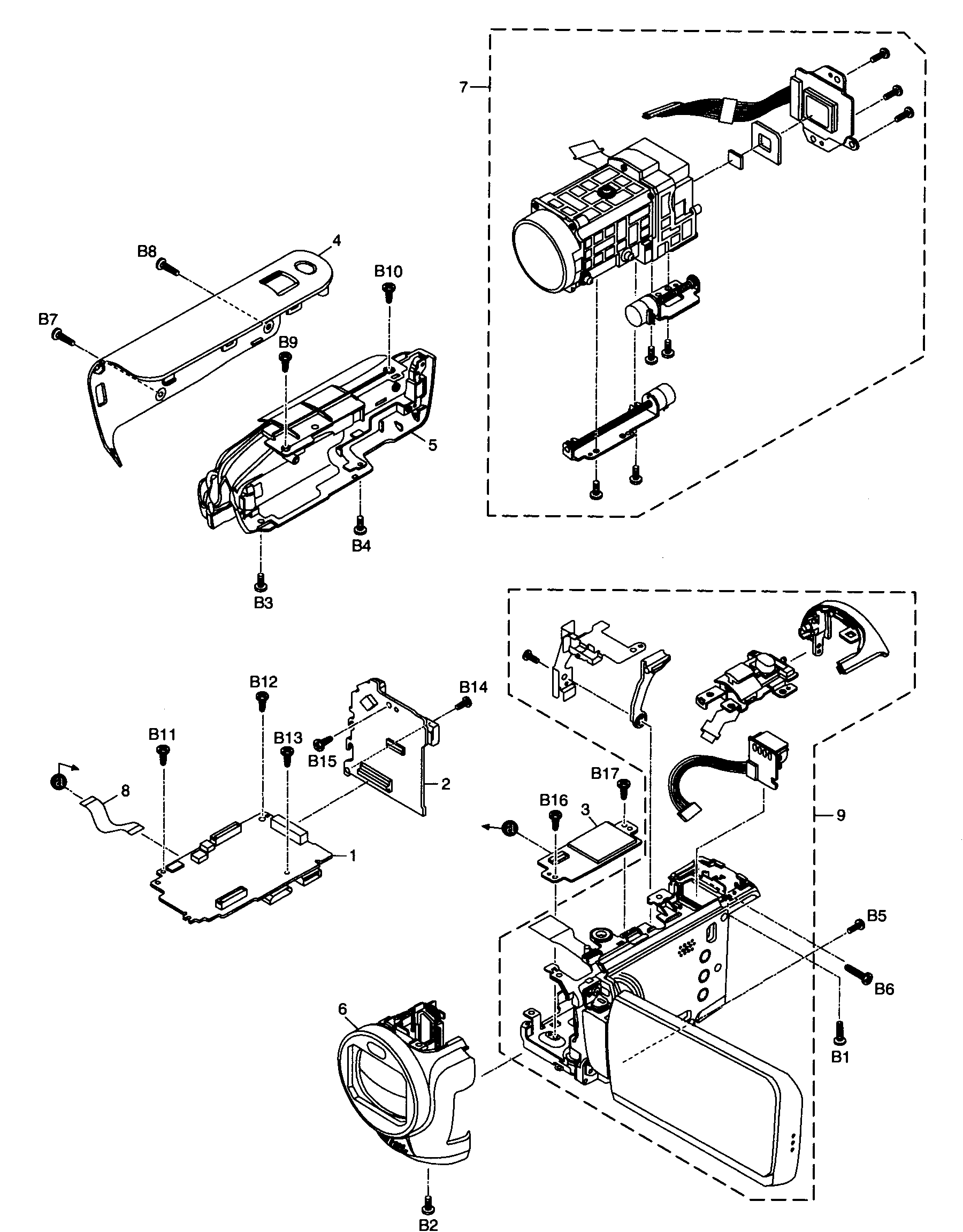

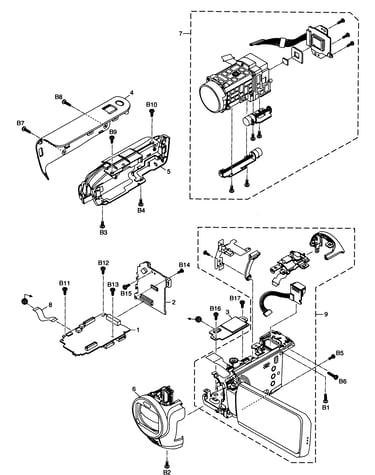

Video camera diagram

Panasonic esd fpc

Part #VWJ2260

This item is not returnable
In Stock
Panasonic Panasonic Side Case- VYK4M70
#9

Video camera diagram

Panasonic panasonic side case-

Part #VYK4M70

In Stock
Panasonic Panasonic Top Case VYK4M80
#4

Video camera diagram

Panasonic panasonic top case

Part #VYK4M80

In Stock
Panasonic Front Case VYK4M77
#6

Video camera diagram

Panasonic front case

Part #VYK4M77

In Stock
Panasonic Main Pcb VEP03J12BN
#1

Video camera diagram

Panasonic main pcb

Part #VEP03J12BN

In Stock
Panasonic Lens Assy VXW1217
#7

Video camera diagram

Panasonic lens assy

Part #VXW1217

In Stock
Panasonic Own Manual VQT3J15
#NI

Video camera diagram

Panasonic own manual

Part #VQT3J15

In Stock
Panasonic Esd Pcb VEP03H89L
#3

Video camera diagram

Panasonic esd pcb

Part #VEP03H89L

In Stock
Panasonic Fuse Resis D1JBR084A023
#NI

Video camera diagram

Panasonic fuse resis

Part #D1JBR084A023

This item is not returnable
In Stock
Usb Cable K1HA05AD0007
#NI

Video camera diagram

Usb cable

Part #K1HA05AD0007

Replaced by #K2KYYYY00141

?
Manufacturer substitution
This part replaces K1HA05AD0007. Substitute parts can look different from the original.
In Stock
