Model # 10666450 Official Kenmore coldspot through-the-wall air conditioner

Here are the diagrams and repair parts for Official Kenmore 10666450 coldspot through-the-wall air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

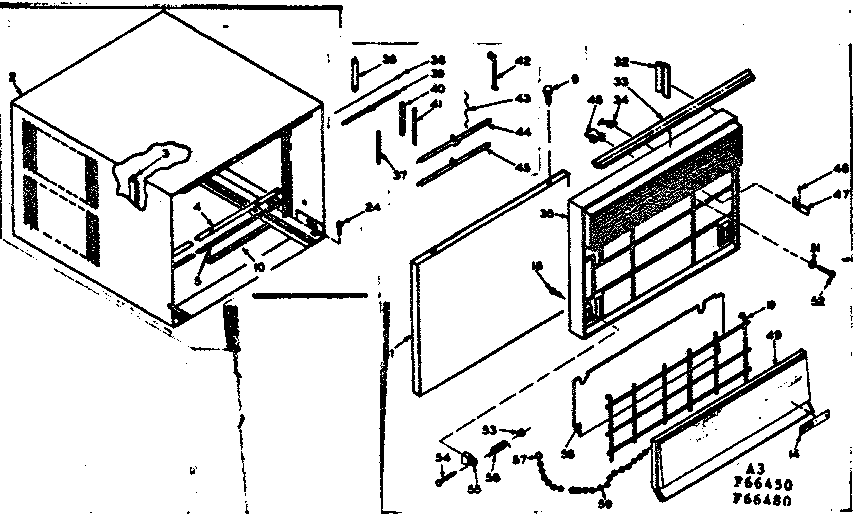

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 134 parts  |
Spacer 471157
#36

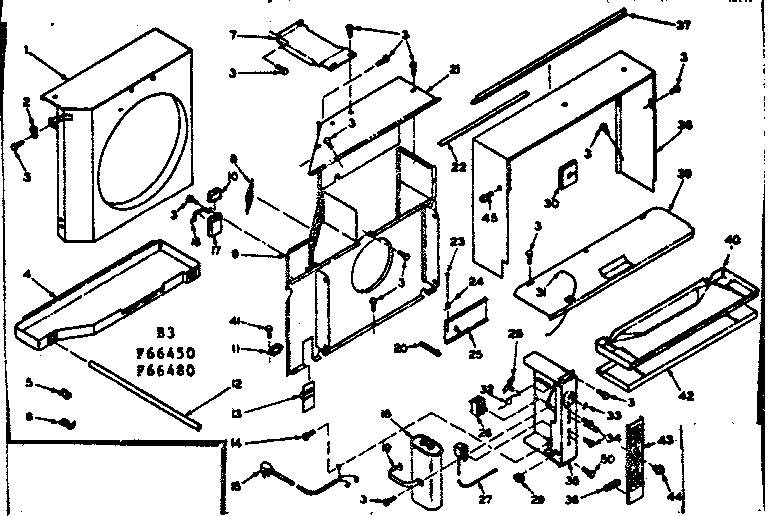

Air flow parts diagram

Spacer

Part #471157

Replaced by #WP854334

?
Manufacturer substitution
This part replaces 471157. Substitute parts can look different from the original.
$9.99 |
9% OFF Phone Price : $10.99
In Stock
Bracket 43449
#16

Air flow parts diagram

Bracket

Part #43449

Replaced by #WP43449

?
Manufacturer substitution
This part replaces 43449. Substitute parts can look different from the original.
This item is not returnable
$4.33
In Stock
Bend 471570
#30

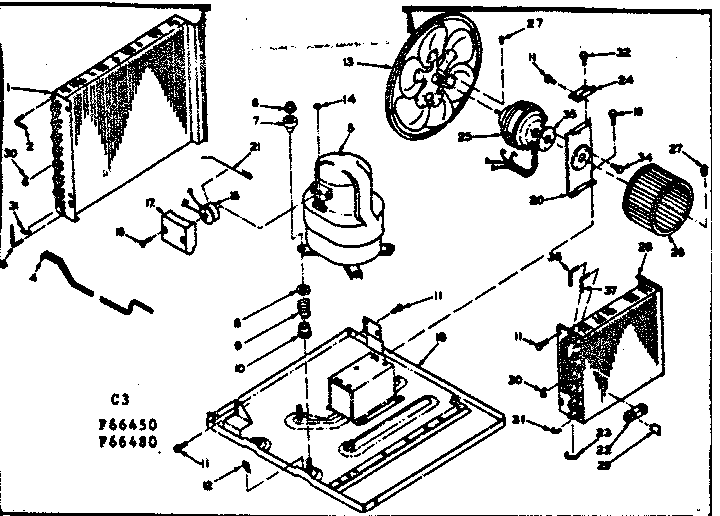

Unit parts diagram

Bend

Part #471570

Replaced by #WP855199

?
Manufacturer substitution
This part replaces 471570. Substitute parts can look different from the original.
This item is not returnable
$4.33
In Stock
Screw 488208
#45

Air flow parts diagram

Screw

Part #488208

Replaced by #WP488163

?
Manufacturer substitution
This part replaces 488208. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Screw 487294
Screw

Part #487294

Replaced by #WP489128

?
Manufacturer substitution
This part replaces 487294. Substitute parts can look different from the original.
This item is not returnable
$8.12 |
11% OFF Phone Price : $9.12
In Stock
Dvx Thnnr Gl 799351

#NI

All parts diagram

Dvx thnnr gl

Part #799351

The manufacturer no longer makes this part, and there's no substitute part

Screw 488341
#34

Unit parts diagram

Screw

Part #488341

The manufacturer no longer makes this part, and there's no substitute part

Fan Motor 475484
#25

Unit parts diagram

Fan motor

Part #475484

The manufacturer no longer makes this part, and there's no substitute part

Plate 475085
#43

Air flow parts diagram

Plate

Part #475085

The manufacturer no longer makes this part, and there's no substitute part

Spring 42567
#9

Unit parts diagram

Spring

Part #42567

The manufacturer no longer makes this part, and there's no substitute part
