Model # UH30065 Official Hoover vacuum

Here are the diagrams and repair parts for Official Hoover UH30065 vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 84 parts  |

Pulley 43241009
#30

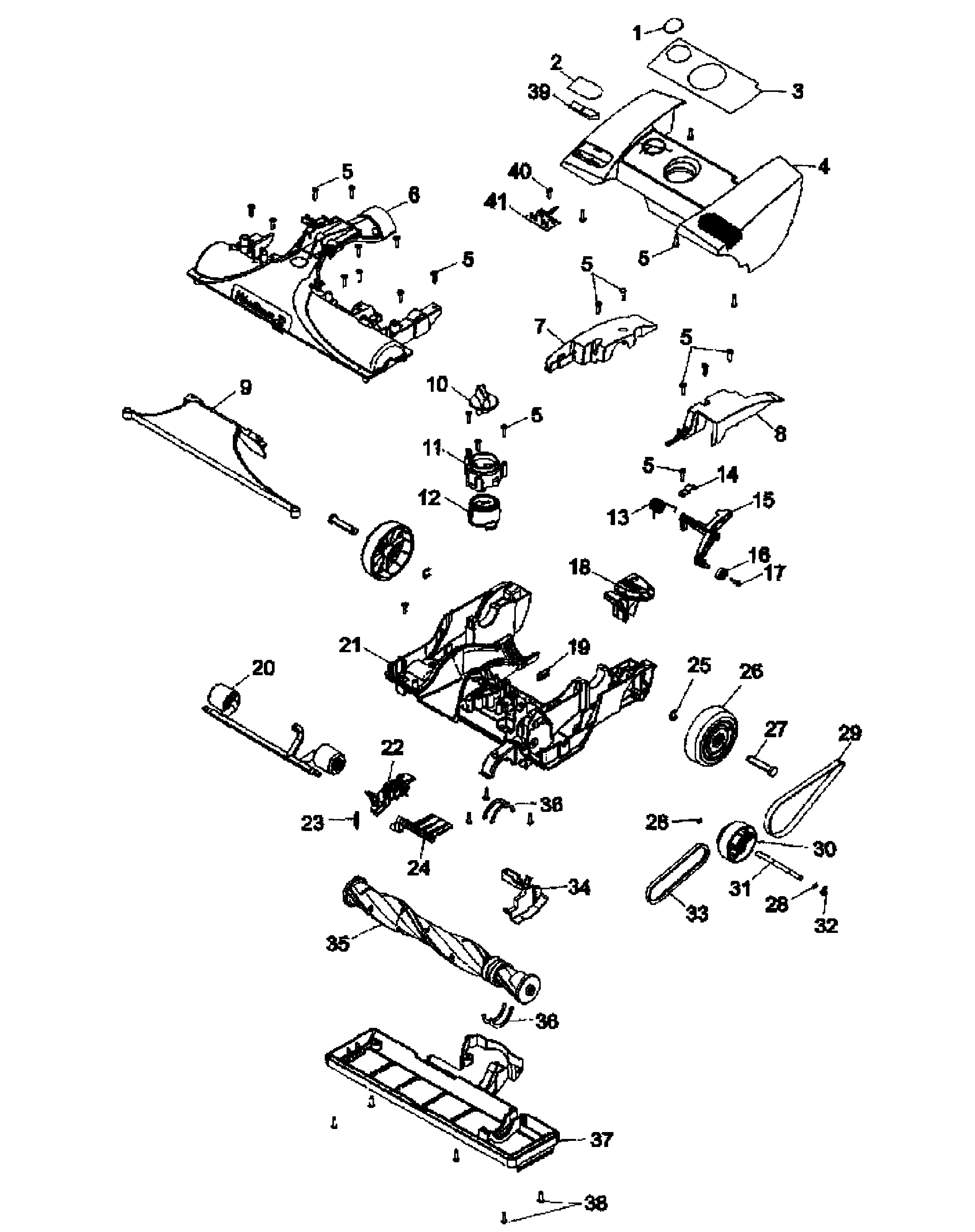

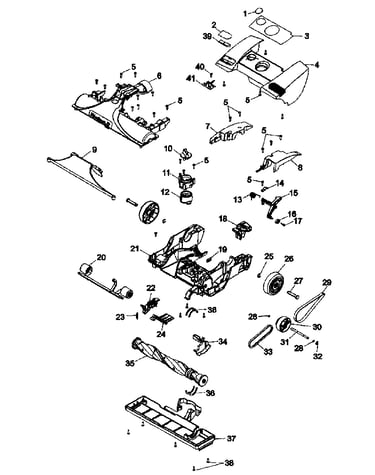

Base assy diagram

Pulley

Part #43241009

The manufacturer no longer makes this part, and there's no substitute part

Pcb 46851065
#29

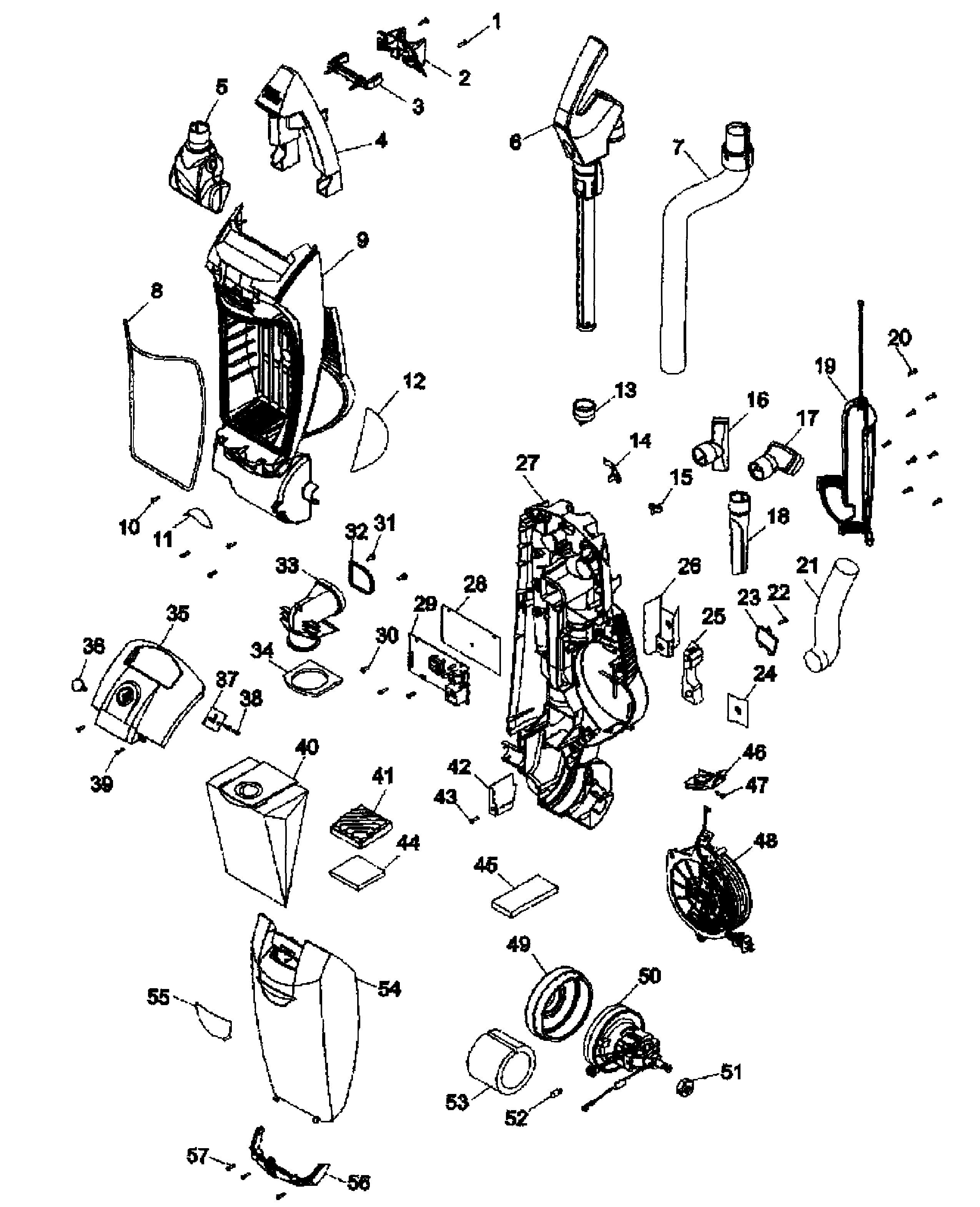

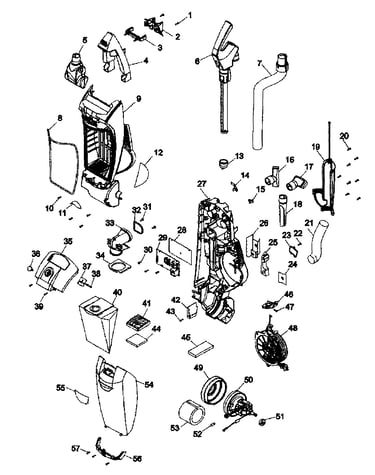

Main body diagram

Pcb

Part #46851065

The manufacturer no longer makes this part, and there's no substitute part

Medallion 51661020
#1

Base assy diagram

Medallion

Part #51661020

The manufacturer no longer makes this part, and there's no substitute part

Name Door 51632019
#55

Main body diagram

Name door

Part #51632019

The manufacturer no longer makes this part, and there's no substitute part

Cord Reel 46833002
#48

Main body diagram

Cord reel

Part #46833002

The manufacturer no longer makes this part, and there's no substitute part

Static Wir 47811008
#NI

Base assy diagram

Static wir

Part #47811008

The manufacturer no longer makes this part, and there's no substitute part

Motor Seal 91001148
#49

Main body diagram

Motor seal

Part #91001148

The manufacturer no longer makes this part, and there's no substitute part

Insulator 91001123
#28

Main body diagram

Insulator

Part #91001123

The manufacturer no longer makes this part, and there's no substitute part

Hoover Bag 37254301
#54

Main body diagram

Hoover bag

Part #37254301

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Motor Mount 36322030
#51

Main body diagram

Vacuum motor mount

Part #36322030

The manufacturer no longer makes this part, and there's no substitute part
