Model # NCGM075EGA2 Official ICP gas furnace

Here are the diagrams and repair parts for Official ICP NCGM075EGA2 gas furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 100 parts  |
Furnace Pilot Igniter And Sensor (replaces B14010-11s, Q3400a1040) 1009524
#14

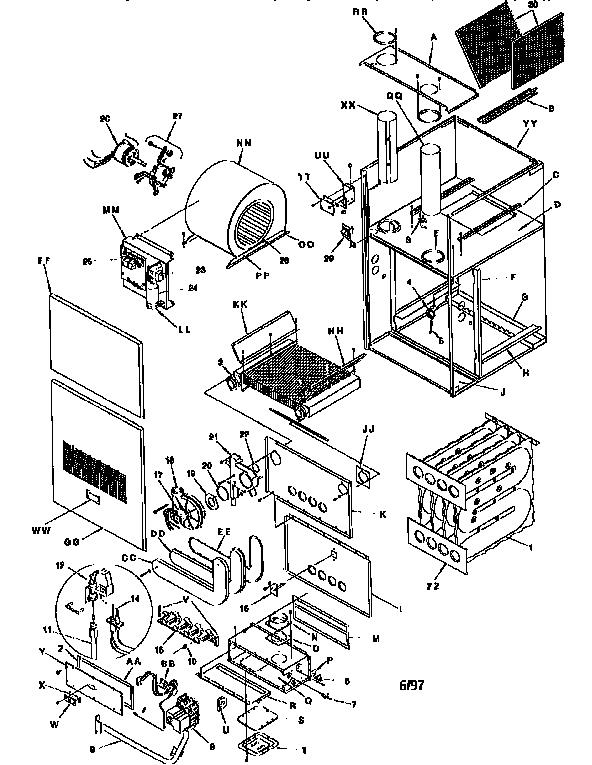

Unit parts diagram

Furnace pilot igniter and sensor (replaces b14010-11s, q3400a1040)

Part #1009524

$166.19 |
7% OFF Phone Price : $178.19
In Stock
Cont Fan Tmr 1009838
#25

Unit parts diagram

Cont fan tmr

Part #1009838

Replaced by #1170063

?
Manufacturer substitution
This part replaces 1009838. Substitute parts can look different from the original.
$220.46 |
5% OFF Phone Price : $232.46
In Stock
Furnace Blower Fan Wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, H600587) 600587
#28

Unit parts diagram

Furnace blower fan wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, h600587)

Part #600587

$130.20 |
8% OFF Phone Price : $142.20
In Stock
Limit Switch 613839
#3

Unit parts diagram

Limit switch

Part #613839

Replaced by #3L05-1

?
Manufacturer substitution
This part replaces 613839. Substitute parts can look different from the original.
$35.55 |
14% OFF Phone Price : $41.55
In Stock
Ht Ex M Ss + 1008877
#1

Unit parts diagram

Ht ex m ss +

Part #1008877

Replaced by #1014490

?
Manufacturer substitution
This part replaces 1008877. Substitute parts can look different from the original.
$745.43
In Stock
Partition 1009494
#K

Unit parts diagram

Partition

Part #1009494

$274.40
In Stock
Gsket Air In 1008746
#O

Unit parts diagram

Gsket air in

Part #1008746

This item is not returnable
$2.16
In Stock
Gskt Lmt Swt 1008778
#P

Unit parts diagram

Gskt lmt swt

Part #1008778

This item is not returnable
$2.16
In Stock
Bracket Burn 1008722
#V

Unit parts diagram

Bracket burn

Part #1008722

$88.96
In Stock
Bracket Coil 1008694
#KK

Unit parts diagram

Bracket coil

Part #1008694

$132.82
In Stock
