Model # 38HDC018340 Official Carrier air conditioner

Here are the diagrams and repair parts for Official Carrier 38HDC018340 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 79 parts  |
Contactor HN51KB024
#32

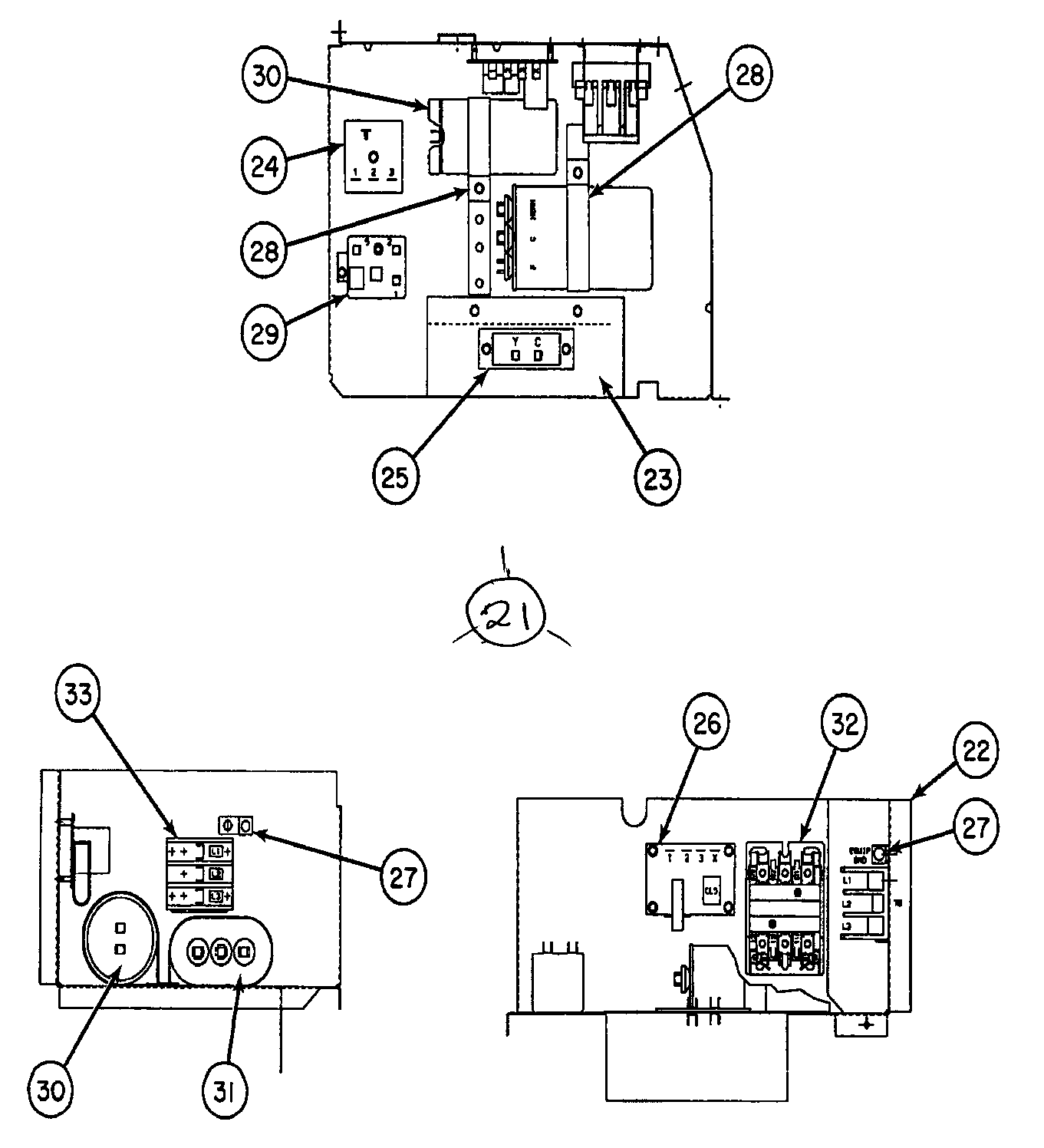

Control panel diagram

Contactor

Part #HN51KB024

Replaced by #90-244

?
Manufacturer substitution
This part replaces HN51KB024. Substitute parts can look different from the original.
$26.61 |
18% OFF Phone Price : $32.61
In Stock
Capactr Dual P291-3553RS
#31

Control panel diagram

Capactr dual

Part #P291-3553RS

Replaced by #CAP050300440RSP

?
Manufacturer substitution
This part replaces P291-3553RS. Substitute parts can look different from the original.
This item is not returnable
$34.08 |
15% OFF Phone Price : $40.08
In Stock
Connector HY90AZ021
#27

Control panel diagram

Connector

Part #HY90AZ021

This item is not returnable
$6.40
In Stock
Grille 38QR400944
#6

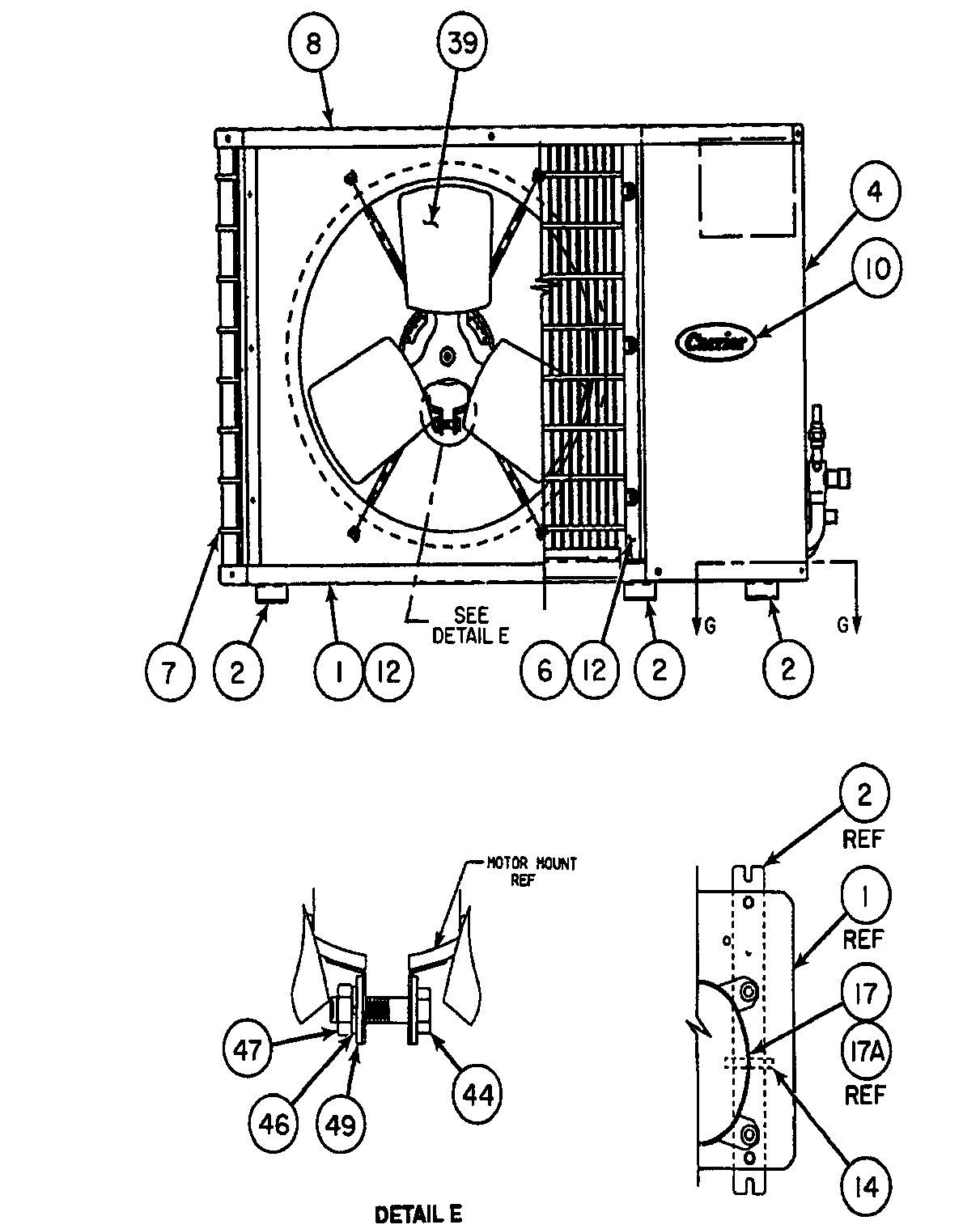

Outside view diagram

Grille

Part #38QR400944

$270.49
In Stock
Payne Lp Switch HK02ZB038
#37

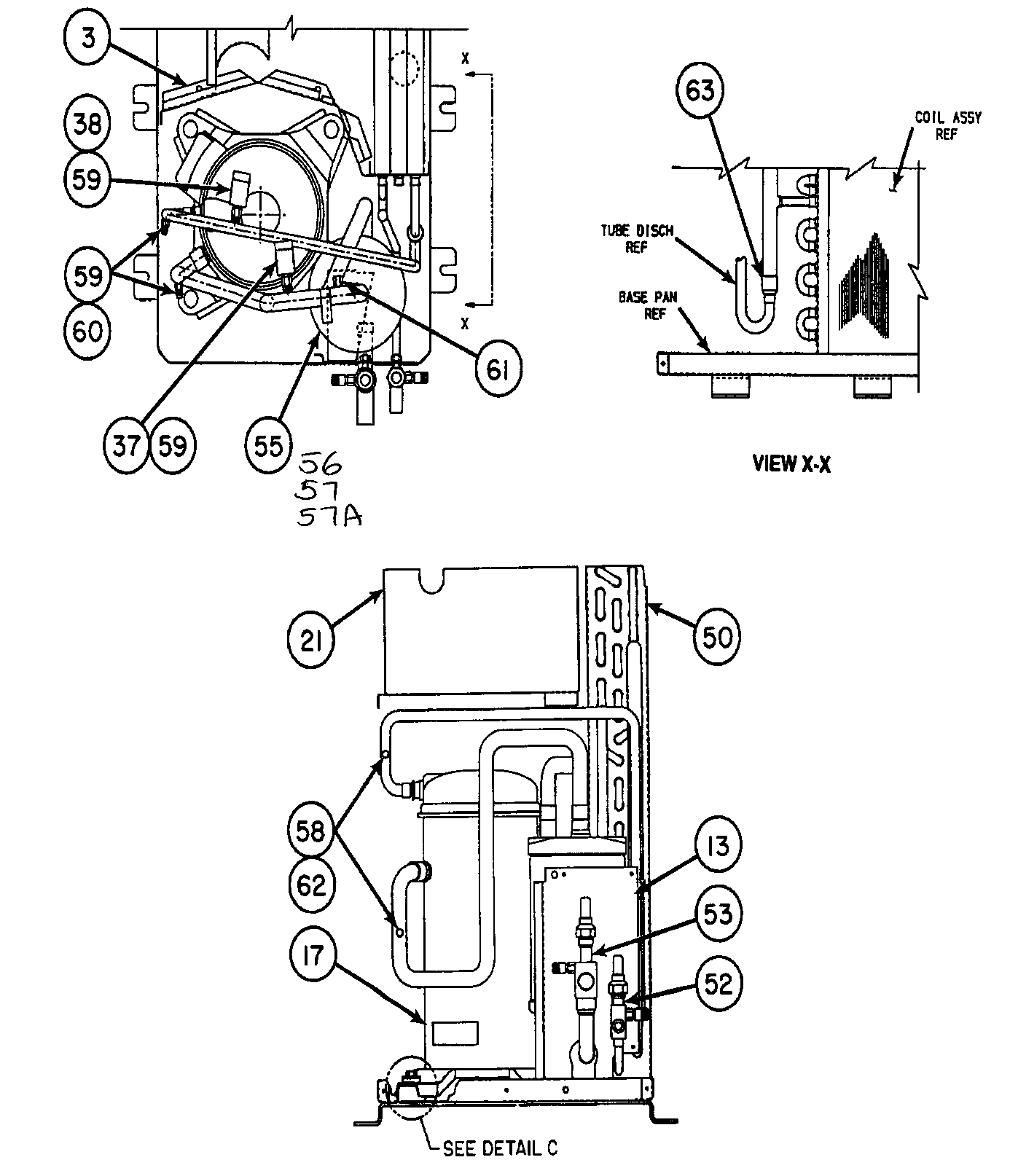

Compressor 1 diagram

Payne lp switch

Part #HK02ZB038

$56.71
In Stock
Mount-motor 38QR400146
#41

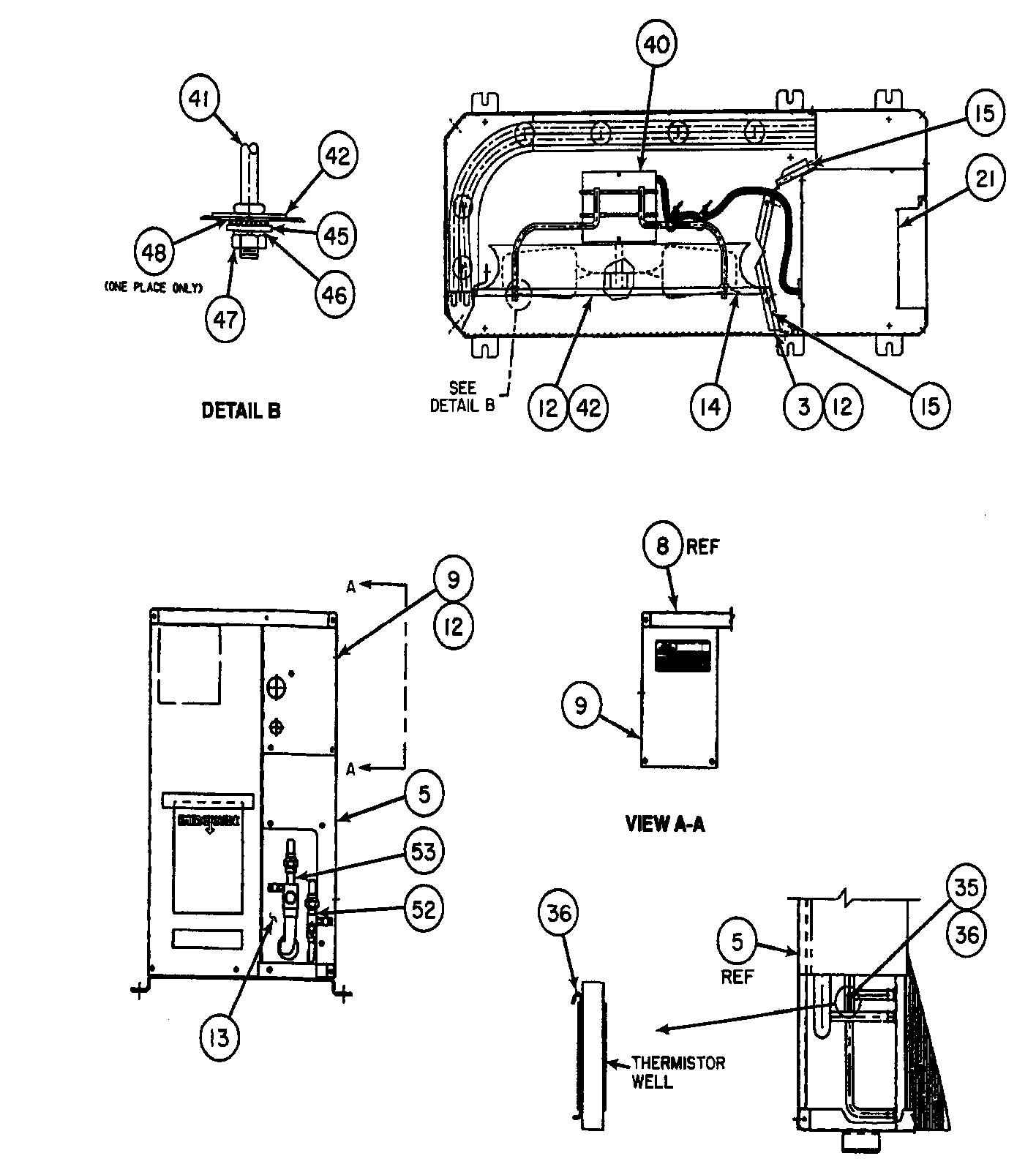

Fan assy diagram

Mount-motor

Part #38QR400146

$218.44
In Stock
Central Air Conditioner Start Capacitor (replaces Hc95de088, P281-8805) P281-8806
#30

Control panel diagram

Central air conditioner start capacitor (replaces hc95de088, p281-8805)

Part #P281-8806

$36.73
In Stock
Accumulatr KH71FP140
#55

Compressor 1 diagram

Accumulatr

Part #KH71FP140

$207.64
In Stock
Grille 38QR400945
#7

Outside view diagram

Grille

Part #38QR400945

$197.20
In Stock
Valve EC39DM061
#58

Compressor 1 diagram

Valve

Part #EC39DM061

This item is not returnable
$5.66
In Stock
