Model # AJCQ10ACBM1 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE AJCQ10ACBM1 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 74 parts  |
Louver Holder WJ01X10142
#1169

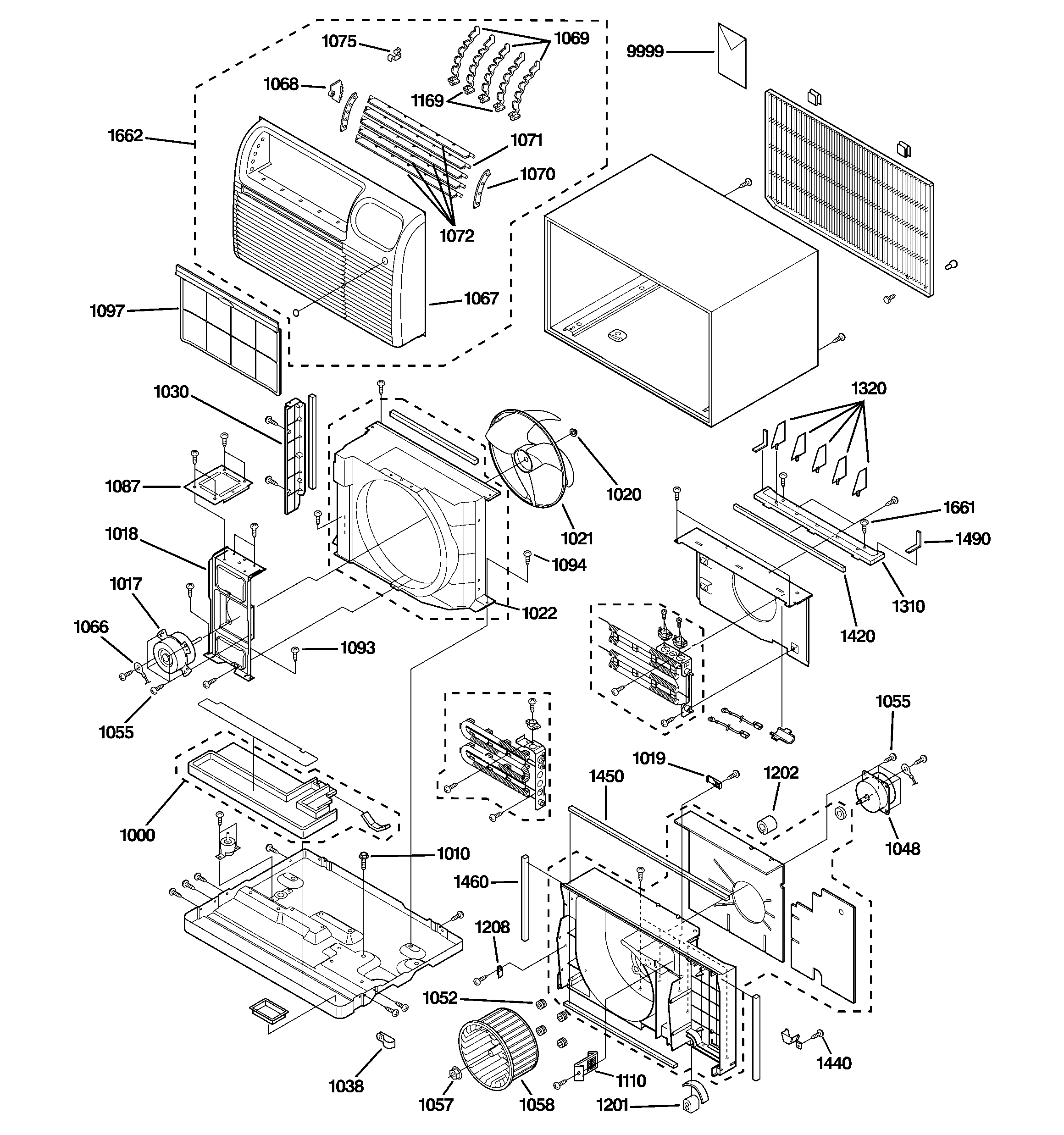

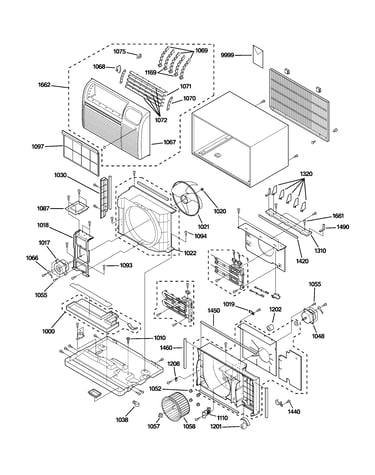

Cabinet & components diagram

Louver holder

Part #WJ01X10142

This item is not returnable
$5.00
In Stock
Room Air Conditioner Air Filter WJ85X10041
#1097

Cabinet & components diagram

Room air conditioner air filter

Part #WJ85X10041

$32.44 |
16% OFF Phone Price : $38.44
In Stock
Special Screw WP01X10021
#1440

Cabinet & components diagram

Special screw

Part #WP01X10021

$8.11
In Stock
Special Nut WJ01X0981
#1020

Cabinet & components diagram

Special nut

Part #WJ01X0981

Replaced by #WJ01X10041

?
Manufacturer substitution
This part replaces WJ01X0981. Substitute parts can look different from the original.
This item is not returnable
$8.50 |
11% OFF Phone Price : $9.50
In Stock
Power Cord WJ35X10094
#1042

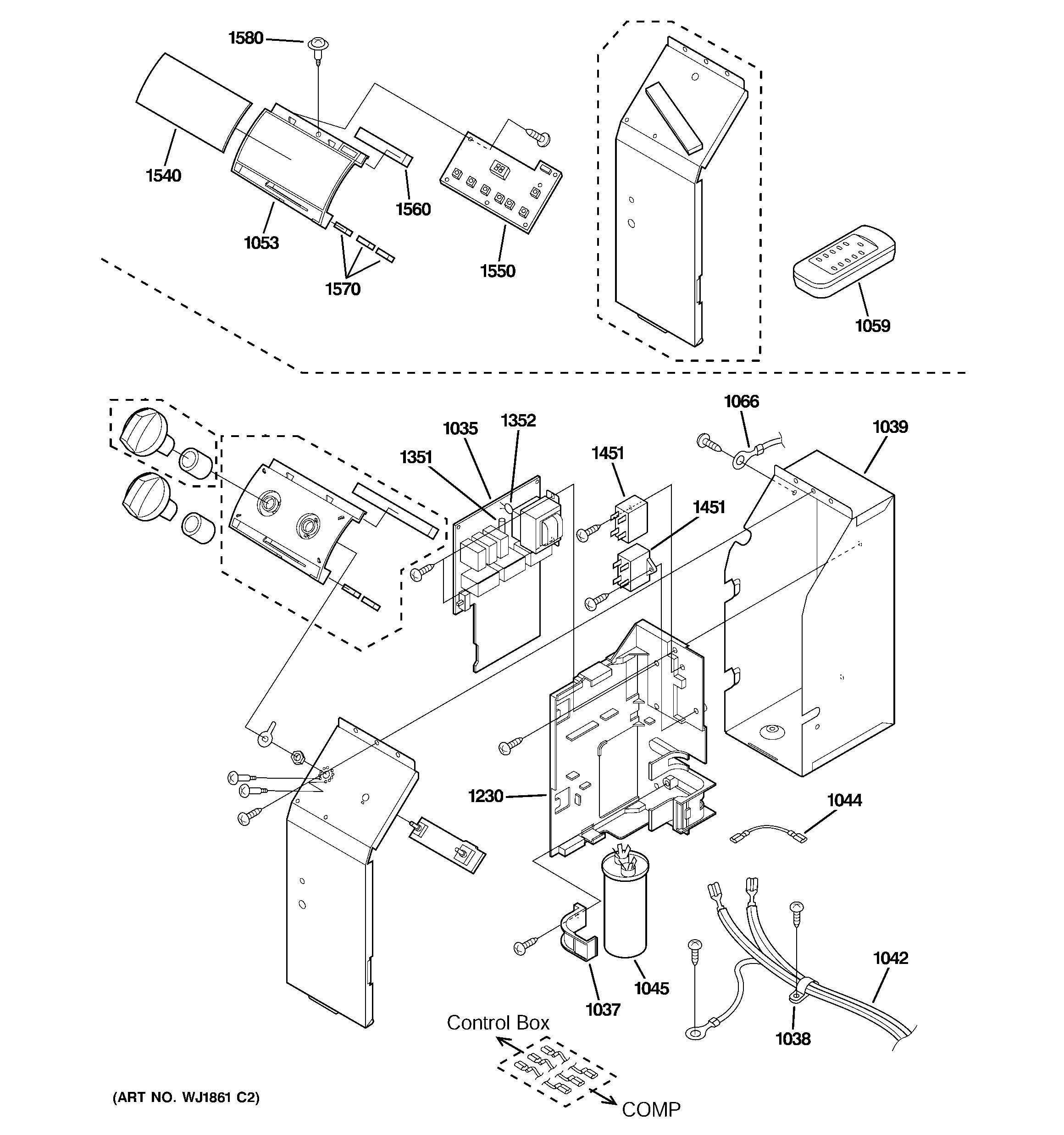

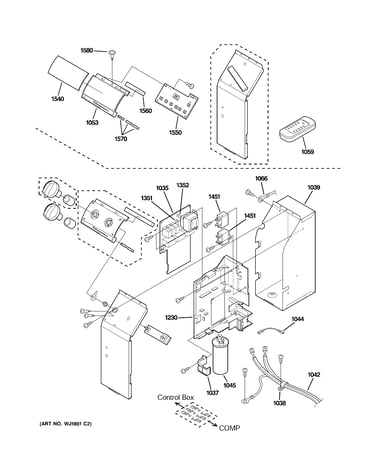

Control parts diagram

Power cord

Part #WJ35X10094

The manufacturer no longer makes this part, and there's no substitute part

Gas Terminal WJ43X10003
#1082

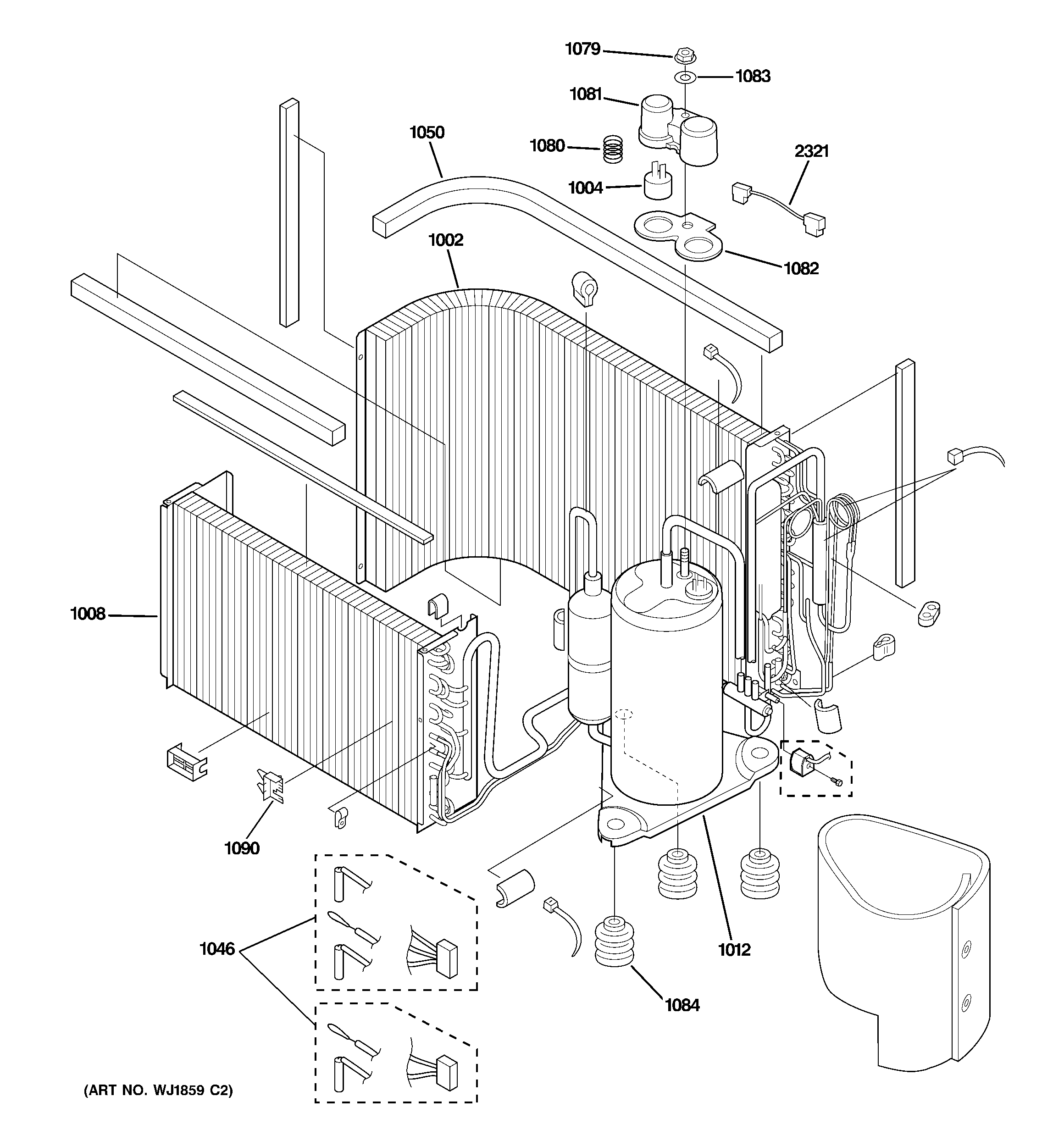

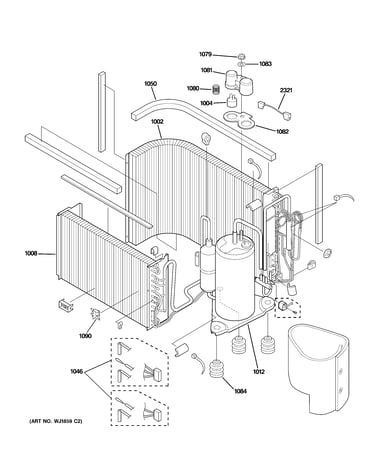

Sealed system & components diagram

Gas terminal

Part #WJ43X10003

The manufacturer no longer makes this part, and there's no substitute part

Eva-pipe Cus WJ01X10140
#1201

Cabinet & components diagram

Eva-pipe cus

Part #WJ01X10140

The manufacturer no longer makes this part, and there's no substitute part

Condenser WJ88X10123
#1002

Sealed system & components diagram

Condenser

Part #WJ88X10123

The manufacturer no longer makes this part, and there's no substitute part

Room Air Conditioner Fuse, 250-volt, 4-amp WP23X10003
#1351

Control parts diagram

Room air conditioner fuse, 250-volt, 4-amp

Part #WP23X10003

The manufacturer no longer makes this part, and there's no substitute part

L-base-plate WJ11X10020
#1420

Cabinet & components diagram

L-base-plate

Part #WJ11X10020

The manufacturer no longer makes this part, and there's no substitute part
