White-Westinghouse
Room Air Conditioner

Model # AH119N2A1 Official White-Westinghouse room air conditioner - lw34090120

Here are the diagrams and repair parts for Official White-Westinghouse AH119N2A1 room air conditioner - lw34090120, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 88 parts  |
Westinghouse Room Air Conditioner Filter Dryer 5300265301
#2

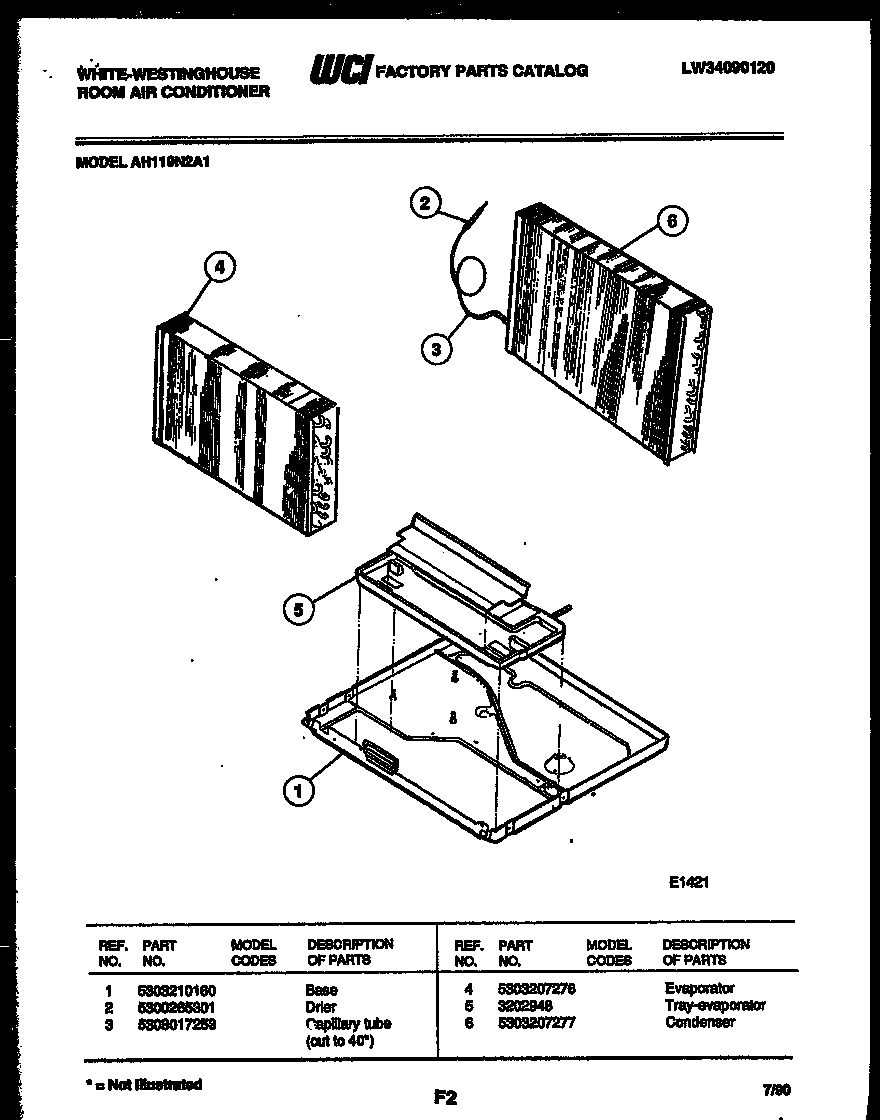

Unit parts diagram

Westinghouse room air conditioner filter dryer

Part #5300265301

$212.62
In Stock
Nut-hex 3017023
#12

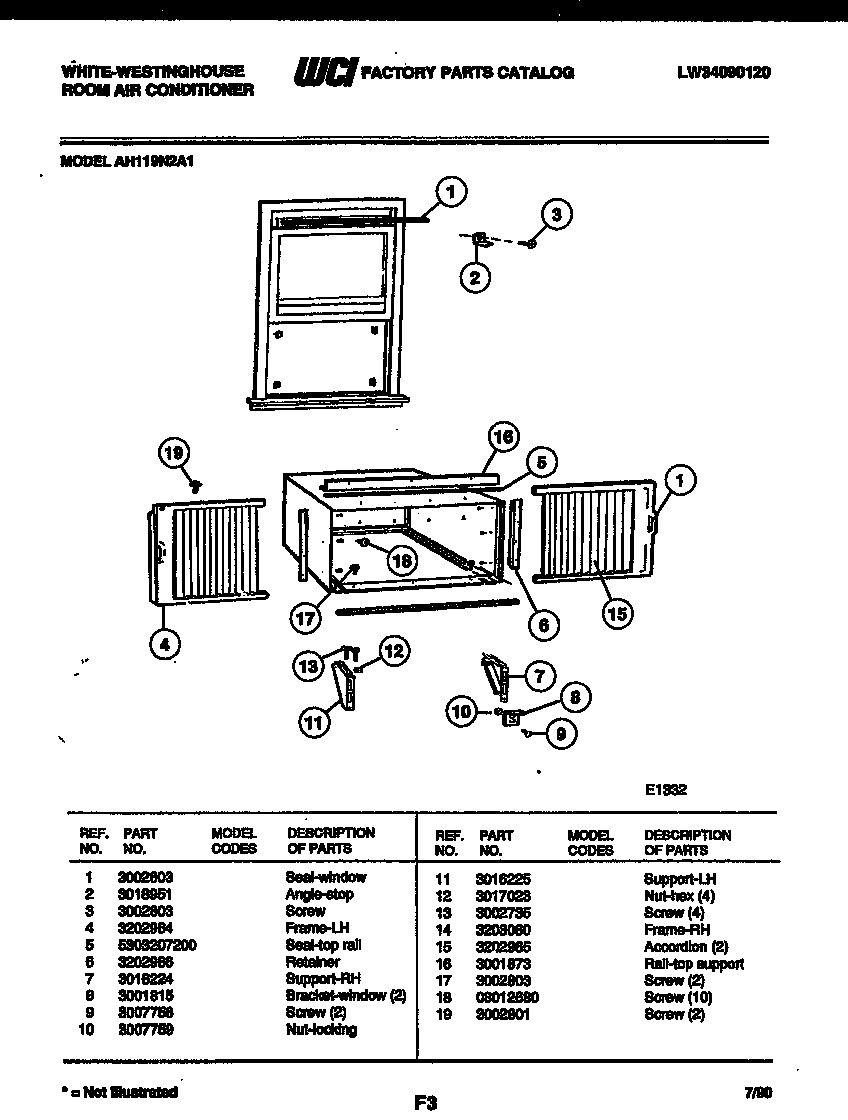

Cabinet and installation parts diagram

Nut-hex

Part #3017023

Replaced by #316205500

?
Manufacturer substitution
This part replaces 3017023. Substitute parts can look different from the original.
This item is not returnable
$11.20
In Stock
Screw 08016220
#17

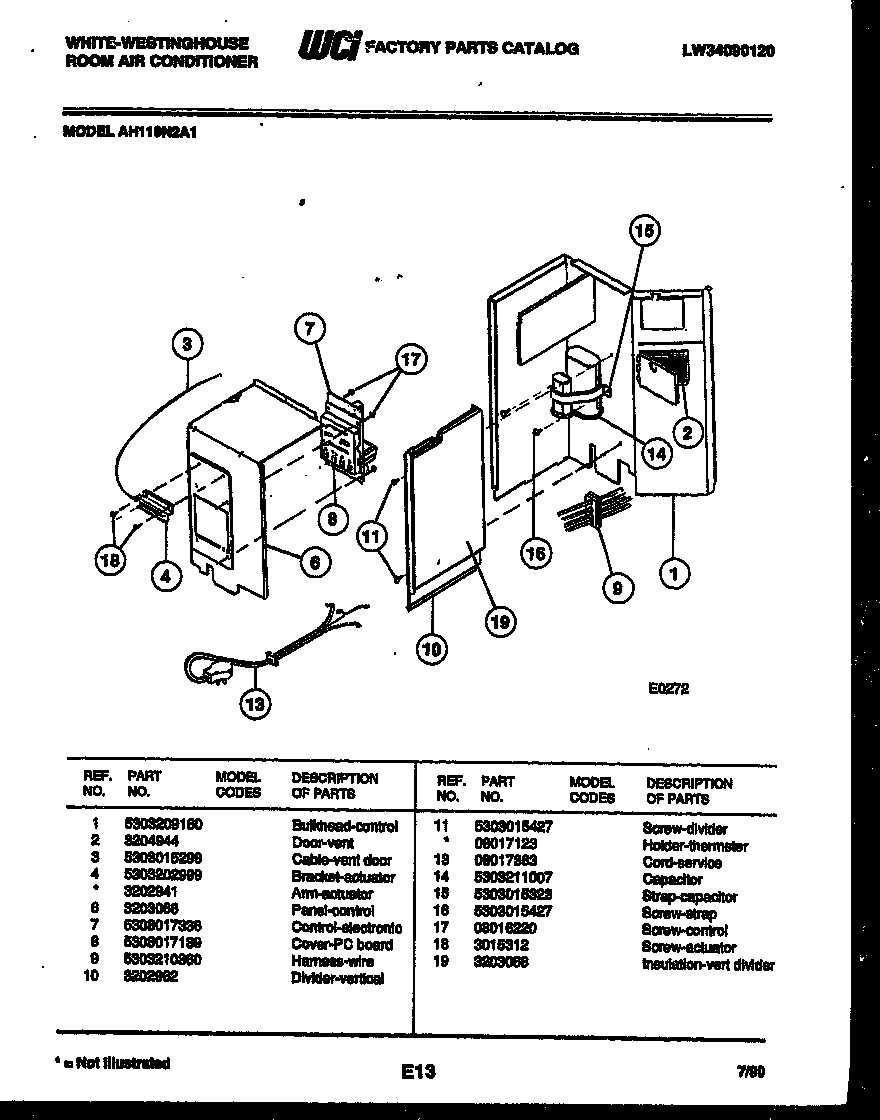

Electrical parts diagram

Screw

Part #08016220

This item is not returnable
$2.16
In Stock
Gasket 3002603
#1

Cabinet and installation parts diagram

Gasket

Part #3002603

Replaced by #5304407729

?
Manufacturer substitution
This part replaces 3002603. Substitute parts can look different from the original.
$25.17
In Stock
Bracket Screw 3015312
#18

Electrical parts diagram

Bracket screw

Part #3015312

Replaced by #5303293767

?
Manufacturer substitution
This part replaces 3015312. Substitute parts can look different from the original.
This item is not returnable
$5.80
In Stock

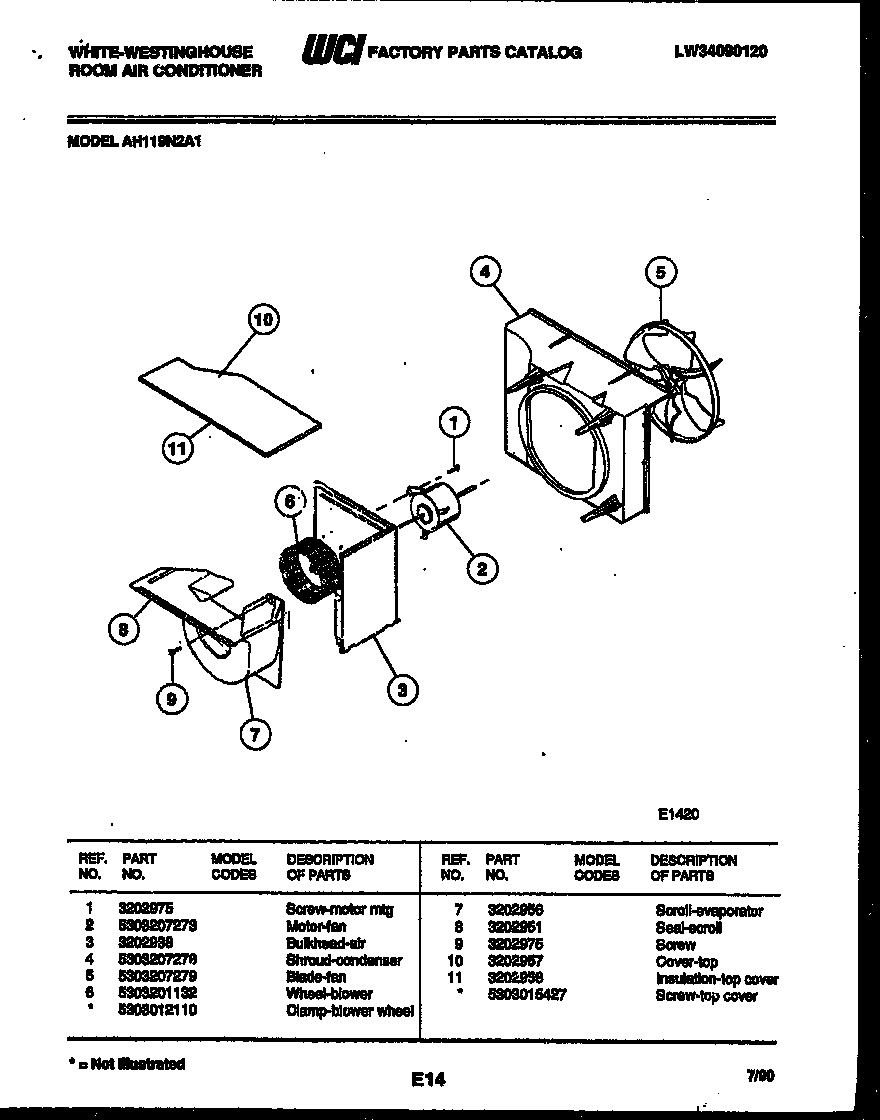

Screw 3202975
Screw

Part #3202975

Replaced by #5304410881

?
Manufacturer substitution
This part replaces 3202975. Substitute parts can look different from the original.
This item is not returnable
$4.77
In Stock
Room Air Conditioner Screw 5303015427
Room air conditioner screw

Part #5303015427

Replaced by #134178901

?
Manufacturer substitution
This part replaces 5303015427. Substitute parts can look different from the original.
$14.69
In Stock
Startr Kit 5303201723
#11

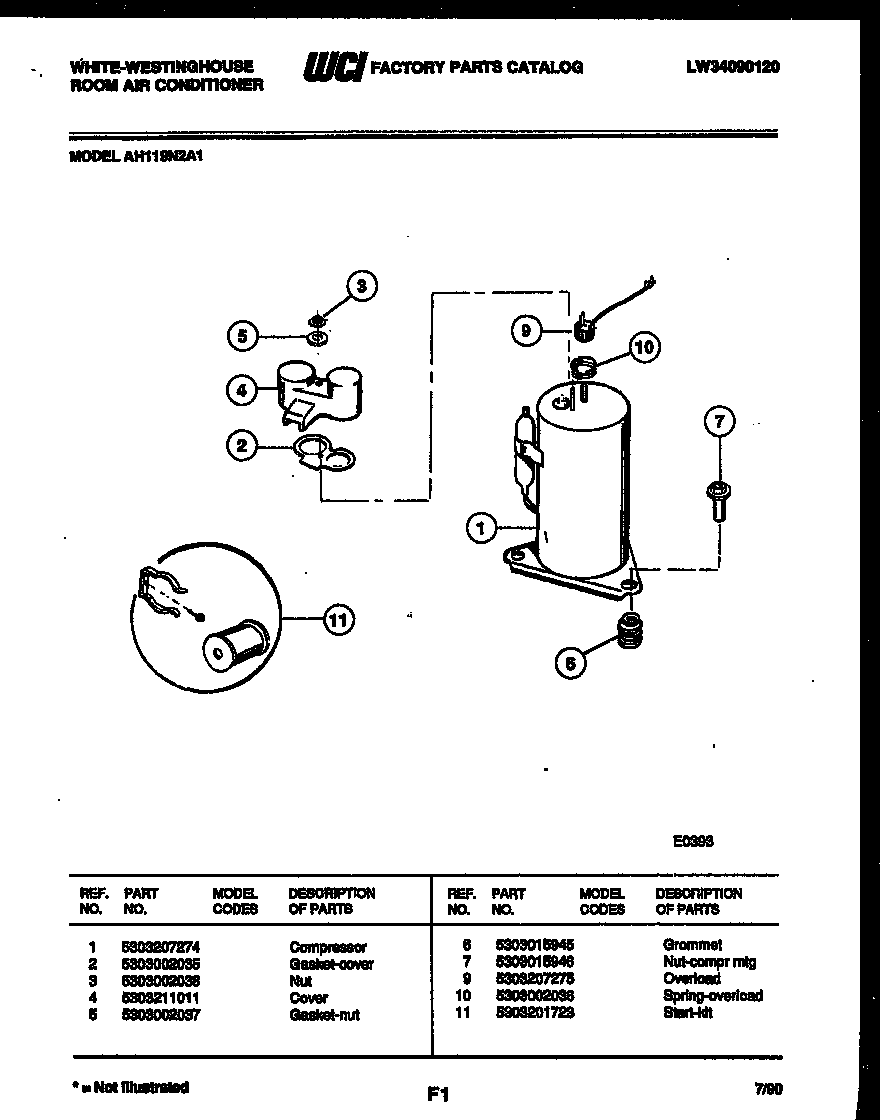

Compressor parts diagram

Startr kit

Part #5303201723

The manufacturer no longer makes this part, and there's no substitute part

Hinge 5303017980
#11

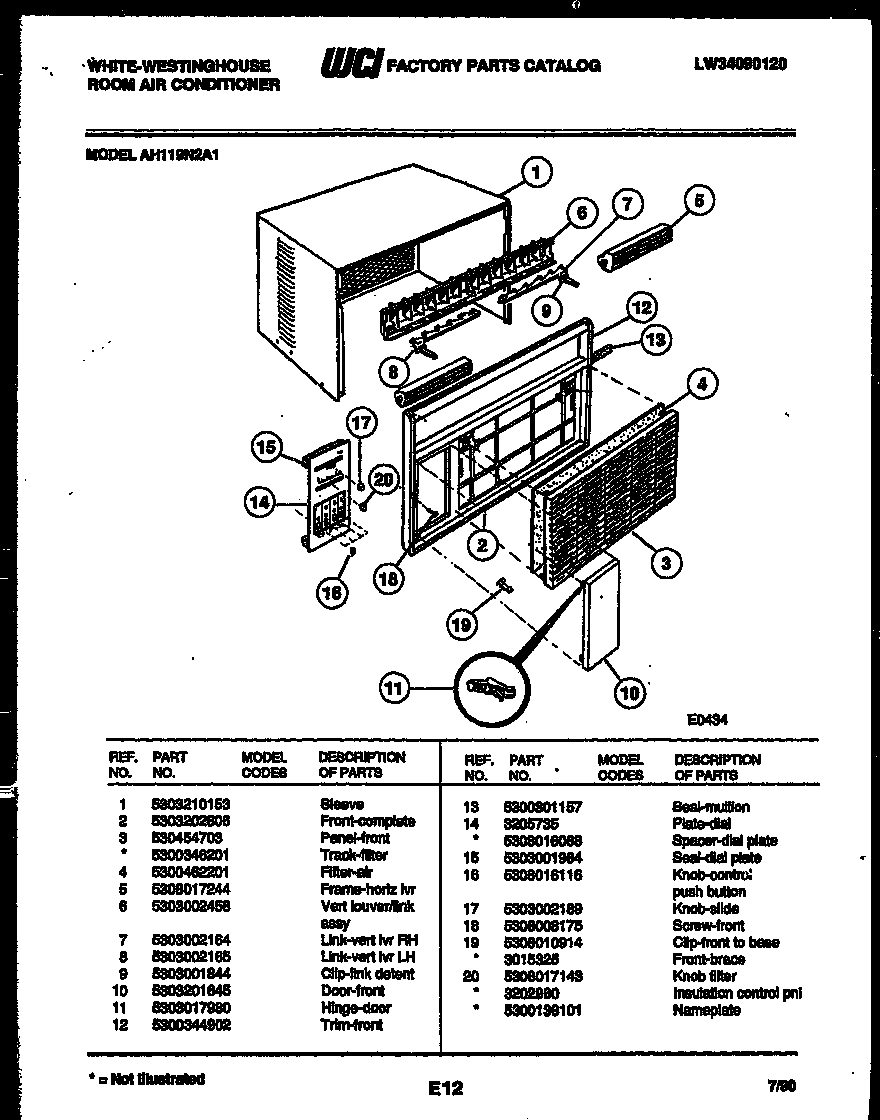

Cabinet parts diagram

Hinge

Part #5303017980

The manufacturer no longer makes this part, and there's no substitute part

Arm 3202941
#4A

Electrical parts diagram

Arm

Part #3202941

The manufacturer no longer makes this part, and there's no substitute part
