Model # DW431 Official Brinley 3 x 21" electronic belt sander

Here are the diagrams and repair parts for Official Brinley DW431 3 x 21" electronic belt sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 85 parts  |
Black & Decker Knob 248428-00
#15

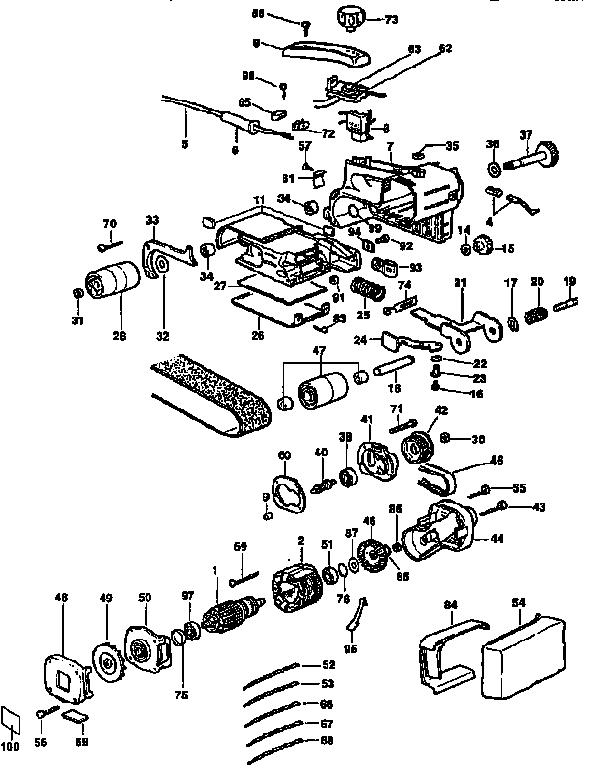

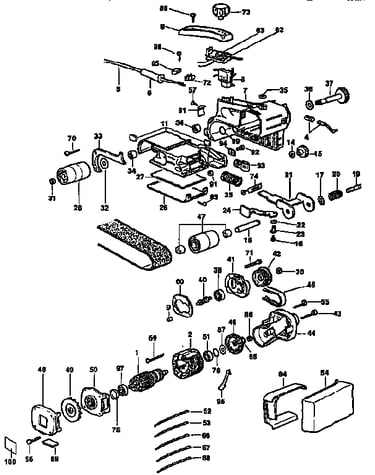

Electronic belt sander diagram

Black & decker knob

Part #248428-00

The manufacturer no longer makes this part, and there's no substitute part

Brinley Spacer 720952-00
#23

Electronic belt sander diagram

Brinley spacer

Part #720952-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Field 760969-00
#2

Electronic belt sander diagram

Black & decker field

Part #760969-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Spring 283513-00
#20

Electronic belt sander diagram

Black & decker spring

Part #283513-00

The manufacturer no longer makes this part, and there's no substitute part

Brinley Fork 720950-00
#21

Electronic belt sander diagram

Brinley fork

Part #720950-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Field Case 324595-02
#7

Electronic belt sander diagram

Black & decker field case

Part #324595-02

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Washer 760261-00
#22

Electronic belt sander diagram

Black & decker washer

Part #760261-00

The manufacturer no longer makes this part, and there's no substitute part

Brinley Lead 283943-00
#67

Electronic belt sander diagram

Brinley lead

Part #283943-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Pinion 325021-00
#40

Electronic belt sander diagram

Black & decker pinion

Part #325021-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Screw 247613-05
#57

Electronic belt sander diagram

Black & decker screw

Part #247613-05

The manufacturer no longer makes this part, and there's no substitute part
