Model # GNJ075M12C1 Official ICP gas furnace

Here are the diagrams and repair parts for Official ICP GNJ075M12C1 gas furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |
Trans 40 Va 1008782
#7

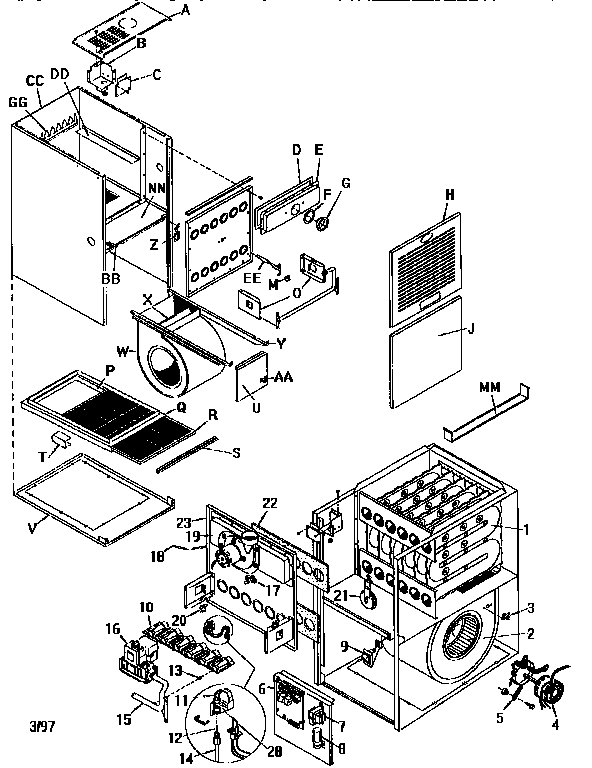

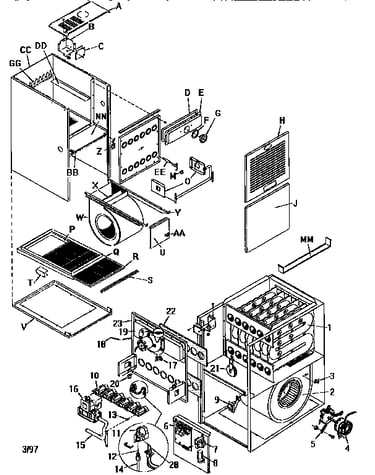

Unit parts diagram

Trans 40 va

Part #1008782

The manufacturer no longer makes this part, and there's no substitute part

Furnace Pilot Igniter And Sensor (replaces B14010-11s, Q3400a1040) 1009524
#28

Unit parts diagram

Furnace pilot igniter and sensor (replaces b14010-11s, q3400a1040)

Part #1009524

$166.19 |
7% OFF Phone Price : $178.19
In Stock
Cont Fan Tmr 1009838
#6

Unit parts diagram

Cont fan tmr

Part #1009838

Replaced by #1170063

?
Manufacturer substitution
This part replaces 1009838. Substitute parts can look different from the original.
$220.46 |
5% OFF Phone Price : $232.46
In Stock
Furnace Blower Fan Wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, H600587) 600587
#2

Unit parts diagram

Furnace blower fan wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, h600587)

Part #600587

$130.20 |
8% OFF Phone Price : $142.20
In Stock
Heat Exchange 231010103
#1

Unit parts diagram

Heat exchange

Part #231010103

Replaced by #1014490

?
Manufacturer substitution
This part replaces 231010103. Substitute parts can look different from the original.
$745.43
In Stock
Motor 1009054
#4

Unit parts diagram

Motor

Part #1009054

Replaced by #1012514

?
Manufacturer substitution
This part replaces 1009054. Substitute parts can look different from the original.
$345.23 |
$12.00 OFF Phone Price : $357.23
In Stock
Limit Switch 1000735
#3

Unit parts diagram

Limit switch

Part #1000735

Replaced by #1013105

?
Manufacturer substitution
This part replaces 1000735. Substitute parts can look different from the original.
This item is not returnable
$15.14
In Stock
Switch 1010897
#21

Unit parts diagram

Switch

Part #1010897

Replaced by #1174276

?
Manufacturer substitution
This part replaces 1010897. Substitute parts can look different from the original.
$62.55 |
9% OFF Phone Price : $68.55
In Stock
Furnace Blower Fan Motor Mounting Kit 609227
#5

Unit parts diagram

Furnace blower fan motor mounting kit

Part #609227

$113.60
In Stock
Rail Galv Bl 57059
#BB

Unit parts diagram

Rail galv bl

Part #57059

$952.55
In Stock
