Kenmore
Canister Vacuum

Model # 11626612690 Official Kenmore canister vacuum

Here are the diagrams and repair parts for Official Kenmore 11626612690 canister vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

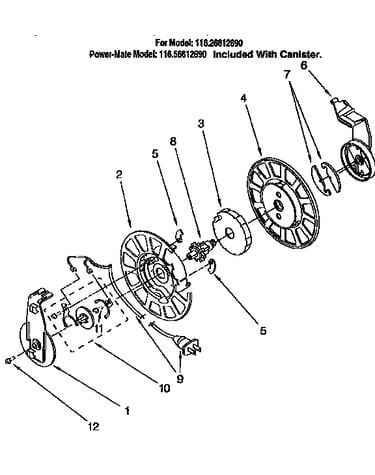

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |
Vacuum Bag, 2-pack 50557
#31A

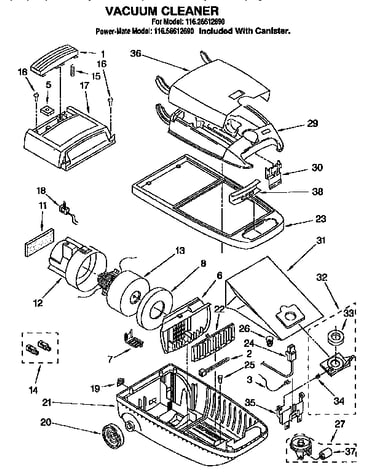

Base assembly diagram

Vacuum bag, 2-pack

Part #50557

Replaced by #50557

?
Manufacturer substitution
This part replaces 50557. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$28.07 |
18% OFF Phone Price : $34.07
In Stock
Vacuum Grip Handle 4155620
#38

Base assembly diagram

Vacuum grip handle

Part #4155620

The manufacturer no longer makes this part, and there's no substitute part

Dust Brush 4156276
#18

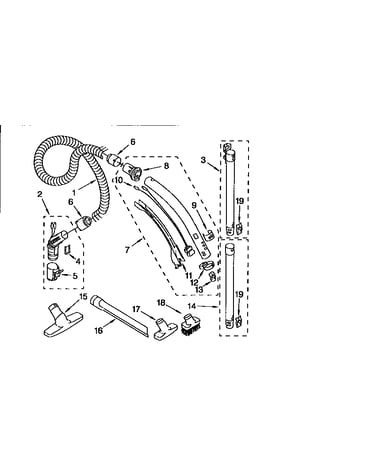

Hose and attachment diagram

Dust brush

Part #4156276

The manufacturer no longer makes this part, and there's no substitute part

Crevice Tool (gray) 4147116
#16

Hose and attachment diagram

Crevice tool (gray)

Part #4147116

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wand Cord Cover 4152948
#11

Hose and attachment diagram

Vacuum wand cord cover

Part #4152948

The manufacturer no longer makes this part, and there's no substitute part

Spring 725419
#19

Hose and attachment diagram

Spring

Part #725419

The manufacturer no longer makes this part, and there's no substitute part

Wand (silver) 4148753
#3

Hose and attachment diagram

Wand (silver)

Part #4148753

The manufacturer no longer makes this part, and there's no substitute part

Suction Control 4152564
#9

Hose and attachment diagram

Suction control

Part #4152564

The manufacturer no longer makes this part, and there's no substitute part

Hose Handle 4153046
#7

Hose and attachment diagram

Hose handle

Part #4153046

The manufacturer no longer makes this part, and there's no substitute part

Plug Cover 4153294
#7

Base assembly diagram

Plug cover

Part #4153294

The manufacturer no longer makes this part, and there's no substitute part
