Model # PFMC77754 Official Proform air walker

Here are the diagrams and repair parts for Official Proform PFMC77754 air walker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 66 parts  |
Treadmill Walking Belt Alignment Tool (replaces 161927) 128457

#NI

All parts diagram

Treadmill walking belt alignment tool (replaces 161927)

Part #128457

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Black & Decker Exercise Equipment Screw 013438
#24

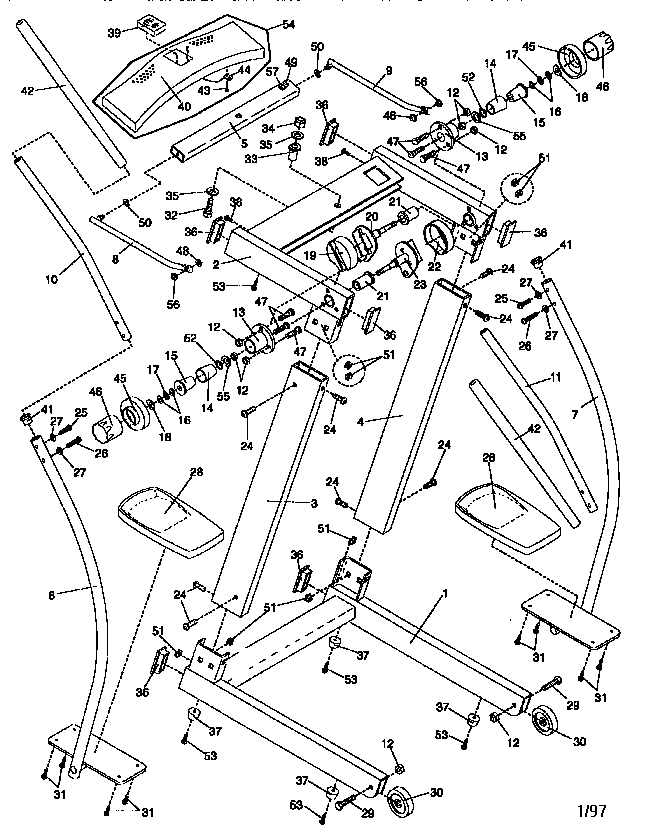

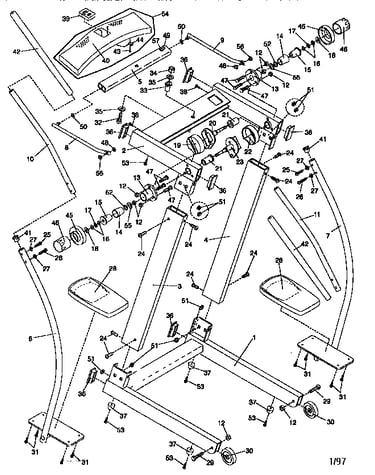

Unit parts diagram

Black & decker exercise equipment screw

Part #013438

This item is not returnable
$2.16
In Stock
Curved Washer 127890
#27

Unit parts diagram

Curved washer

Part #127890

This item is not returnable
$2.16
In Stock
Healthrider Nut,h Nyl Lo 012081
#34

Unit parts diagram

Healthrider nut,h nyl lo

Part #012081

This item is not returnable
$2.16
In Stock
Black & Decker Treadmill Nut 119425
#12

Unit parts diagram

Black & decker treadmill nut

Part #119425

This item is not returnable
$2.16
In Stock
Screw 129475
#31

Unit parts diagram

Screw

Part #129475

This item is not returnable
$2.16
In Stock
Exercise Equipment Rubber Pad 126650
#37

Unit parts diagram

Exercise equipment rubber pad

Part #126650

This item is not returnable
$2.16
In Stock
Healthrider Wshr,lock,zp 110468
#50

Unit parts diagram

Healthrider wshr,lock,zp

Part #110468

This item is not returnable
$2.16
In Stock
Black & Decker Exercise Equipment Bolt 124123
#26

Unit parts diagram

Black & decker exercise equipment bolt

Part #124123

This item is not returnable
$2.99
In Stock
Healthrider Exercise Equipment Thrust Washer, 1/2-in 129144
#16

Unit parts diagram

Healthrider exercise equipment thrust washer, 1/2-in

Part #129144

This item is not returnable
$2.16
In Stock
