Model # CFSP70-P4020006301 Official Amana microwave

Here are the diagrams and repair parts for Official Amana CFSP70-P4020006301 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 92 parts  |
Sealer M0275598
#24

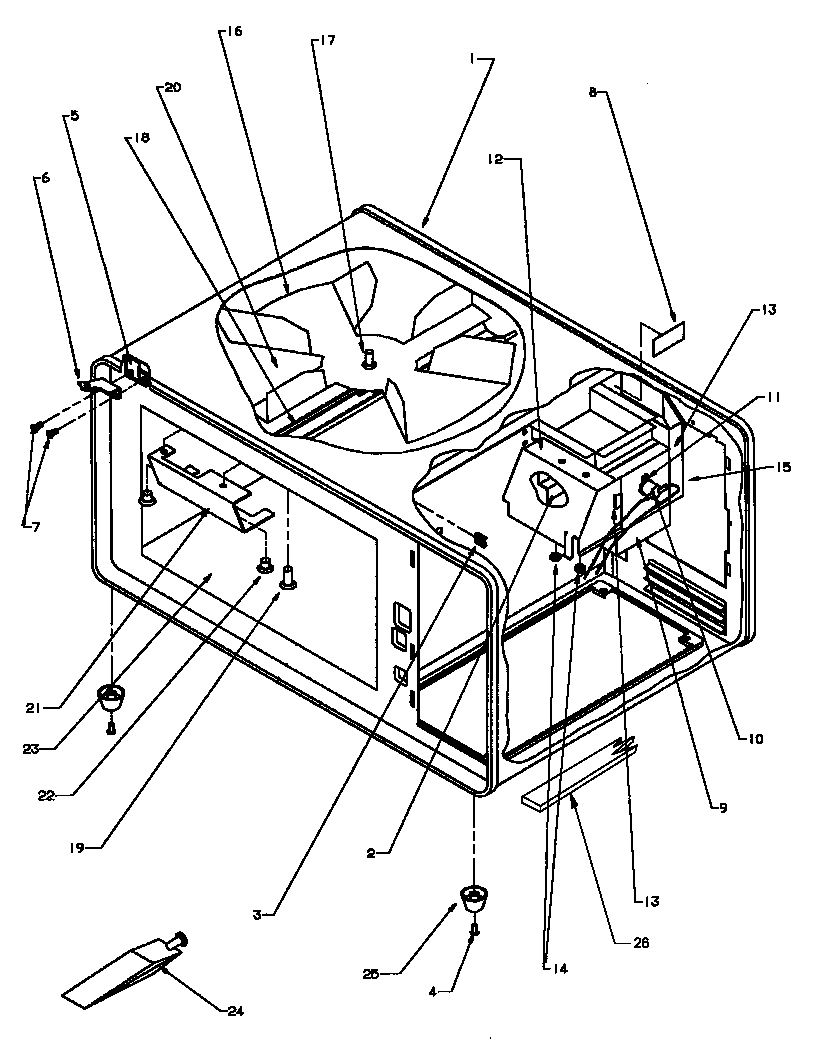

Cavity assembly diagram

Sealer

Part #M0275598

Replaced by #W10841140

?
Manufacturer substitution
This part replaces M0275598. Substitute parts can look different from the original.
BEST SELLER
$14.99 |
12% OFF Phone Price : $16.99
In Stock
Head Screw M0211217
Head screw

Part #M0211217

Replaced by #WP489464

?
Manufacturer substitution
This part replaces M0211217. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Timer 2020003502
#10

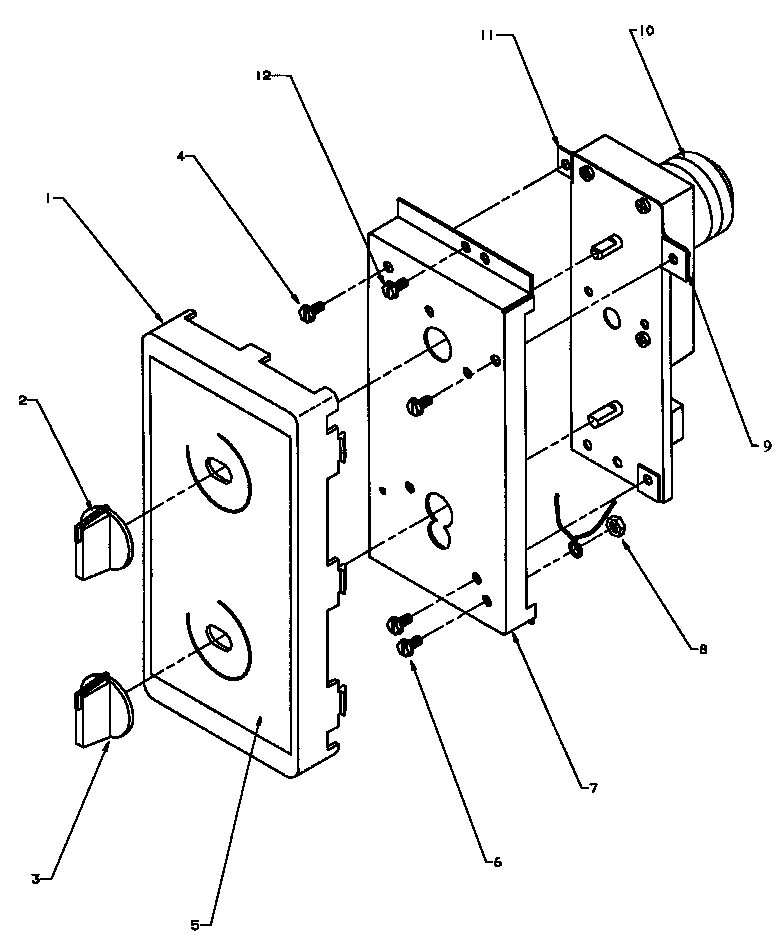

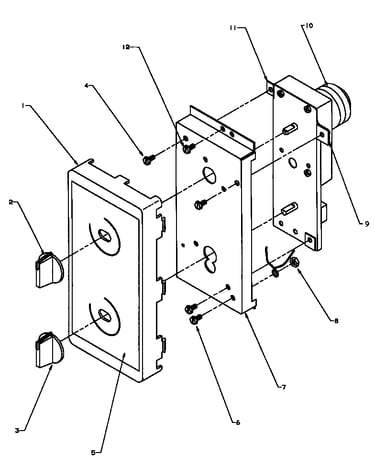

Control panel assembly diagram

Timer

Part #2020003502

The manufacturer no longer makes this part, and there's no substitute part

Capacitor-high Voltage 42214P01
#16

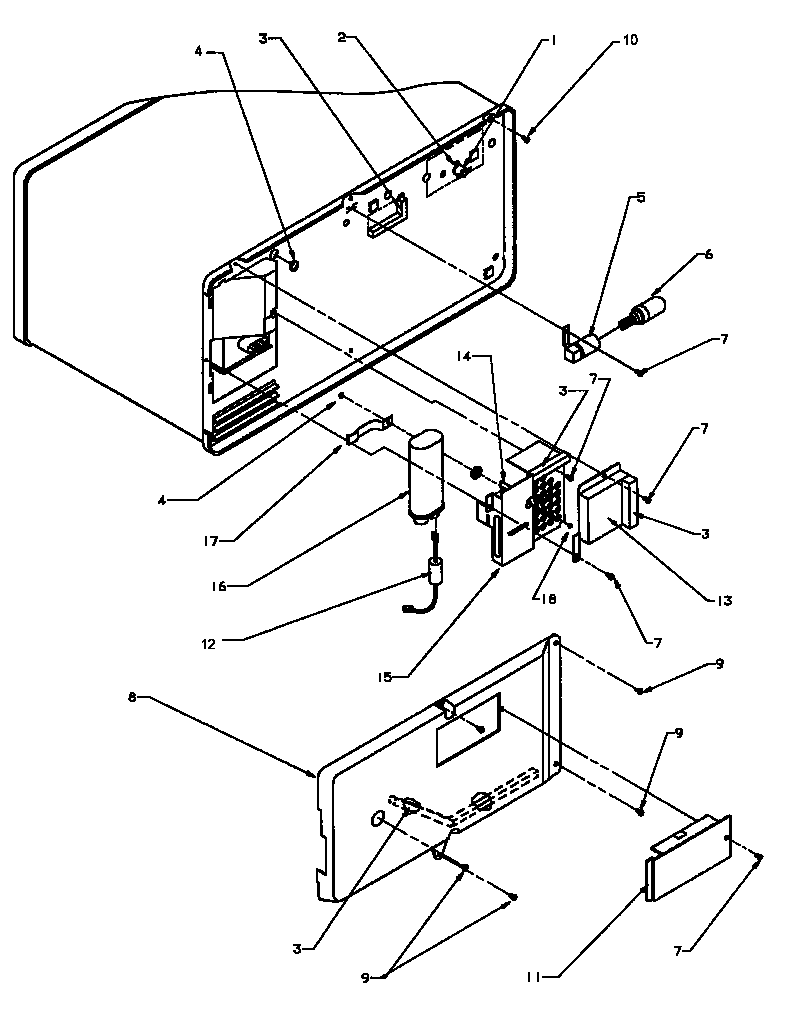

Back side electrical components diagram

Capacitor-high voltage

Part #42214P01

The manufacturer no longer makes this part, and there's no substitute part

Transformer-high Voltage 10426604
#10

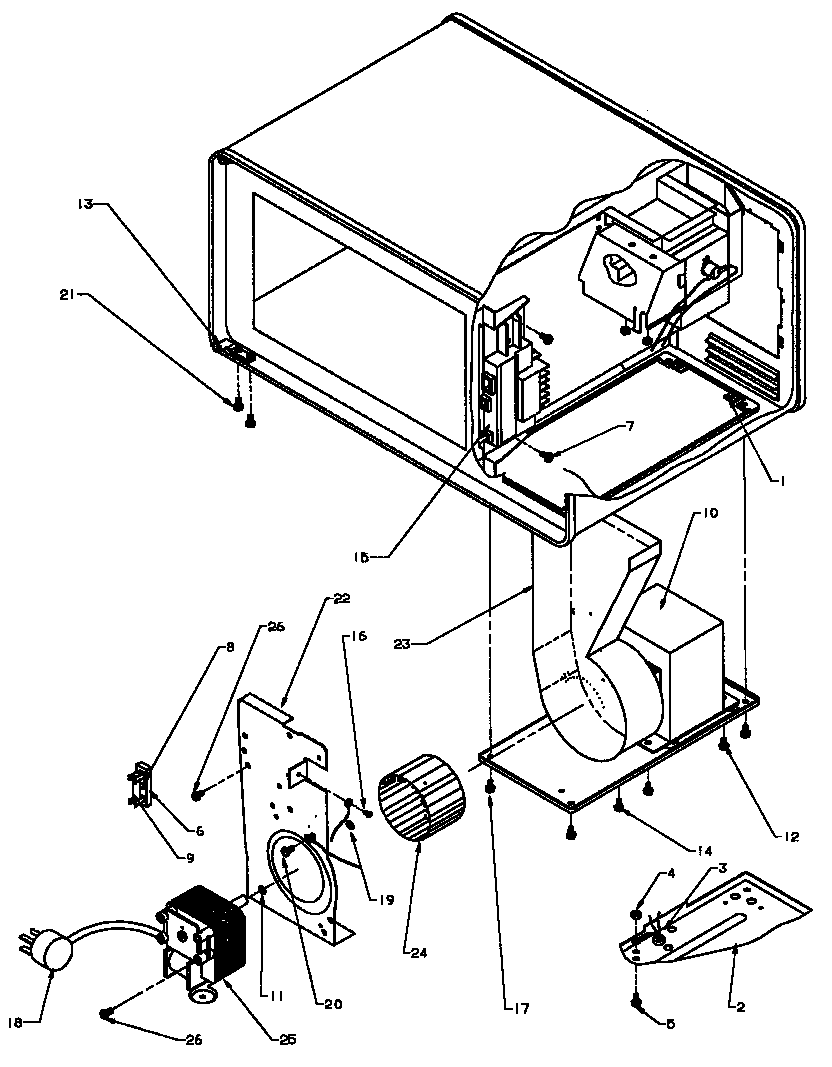

Int. elect comp. & related mounting parts diagram

Transformer-high voltage

Part #10426604

The manufacturer no longer makes this part, and there's no substitute part

Foam (12") 24642P01
#2

Cavity assembly diagram

Foam (12")

Part #24642P01

The manufacturer no longer makes this part, and there's no substitute part

Filler-door (includes Window-inner Door [it 6] R0163247
#10

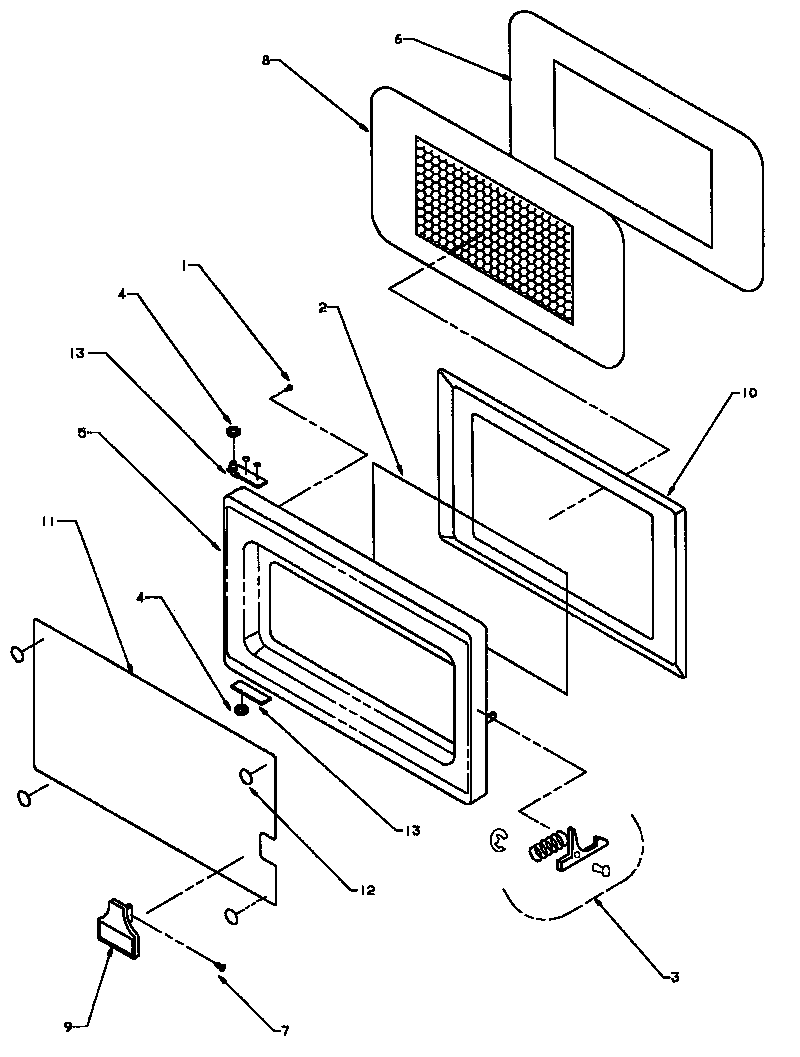

Door assembly diagram

Filler-door (includes window-inner door [it 6]

Part #R0163247

The manufacturer no longer makes this part, and there's no substitute part

Blower Motor (includes Ref. No. 39) M35D51
#24

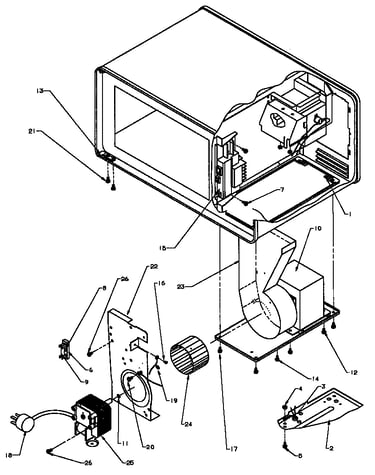

Int. elect comp. & related mounting parts diagram

Blower motor (includes ref. no. 39)

Part #M35D51

The manufacturer no longer makes this part, and there's no substitute part

Door Plate-inner (includes Window-inner Door [it 6] R0163246
#8

Door assembly diagram

Door plate-inner (includes window-inner door [it 6]

Part #R0163246

The manufacturer no longer makes this part, and there's no substitute part

Screw-machine 5146-FF
Screw-machine

Part #5146-FF

The manufacturer no longer makes this part, and there's no substitute part
