Kenmore
Water & Ice System

Model # 106627492 Official Kenmore ice maker

Here are the diagrams and repair parts for Official Kenmore 106627492 ice maker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 37 parts  |
Refrigerator Ejector 627169
#41

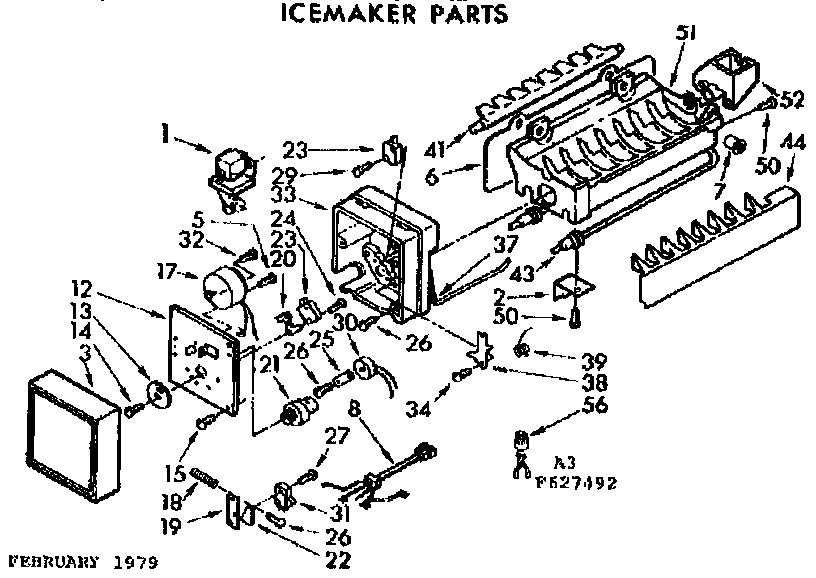

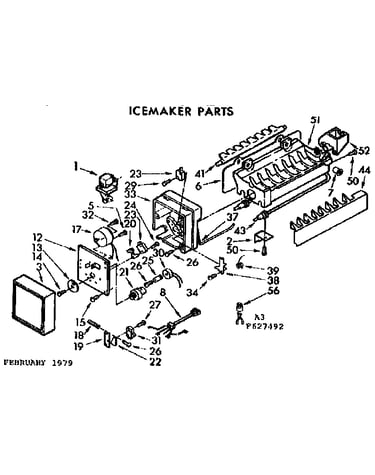

Icemaker parts diagram

Refrigerator ejector

Part #627169

Replaced by #WP627843

?
Manufacturer substitution
This part replaces 627169. Substitute parts can look different from the original.
$32.89 |
15% OFF Phone Price : $38.89
In Stock
Connector 227991
#56

Icemaker parts diagram

Connector

Part #227991

Replaced by #STD375005

?
Manufacturer substitution
This part replaces 227991. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Bracket 625910
#2

Icemaker parts diagram

Bracket

Part #625910

Replaced by #WP2256087

?
Manufacturer substitution
This part replaces 625910. Substitute parts can look different from the original.
$32.87
In Stock
Screw 488362
#27

Icemaker parts diagram

Screw

Part #488362

The manufacturer no longer makes this part, and there's no substitute part

Gear 625914
#13

Icemaker parts diagram

Gear

Part #625914

The manufacturer no longer makes this part, and there's no substitute part

Screw 488360
#29

Icemaker parts diagram

Screw

Part #488360

The manufacturer no longer makes this part, and there's no substitute part

Switch 625947
#31

Icemaker parts diagram

Switch

Part #625947

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Motor 626073
#17

Icemaker parts diagram

Refrigerator motor

Part #626073

The manufacturer no longer makes this part, and there's no substitute part

Arm 627003
#37

Icemaker parts diagram

Arm

Part #627003

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Screw 488896
#50

Icemaker parts diagram

Refrigerator screw

Part #488896

The manufacturer no longer makes this part, and there's no substitute part
