Model # 1963 Official Black & Decker cordless drill

Here are the diagrams and repair parts for Official Black & Decker 1963 cordless drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 28 parts  |
Spring 144501-00
#18

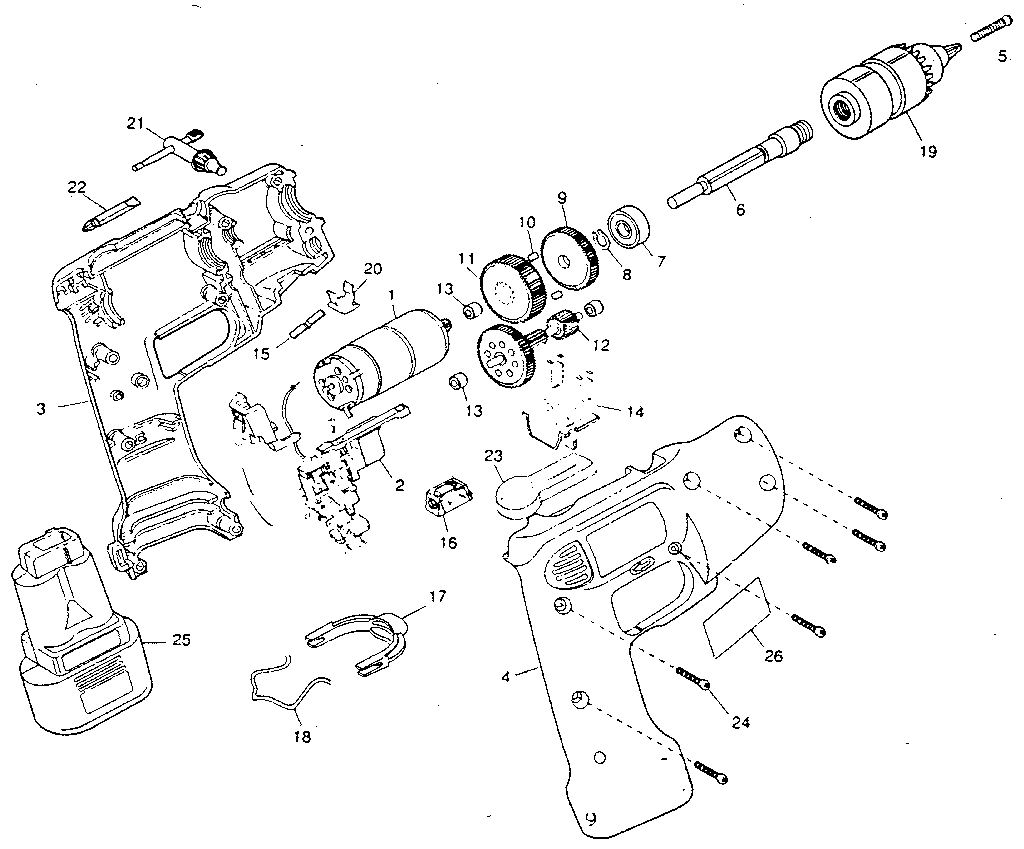

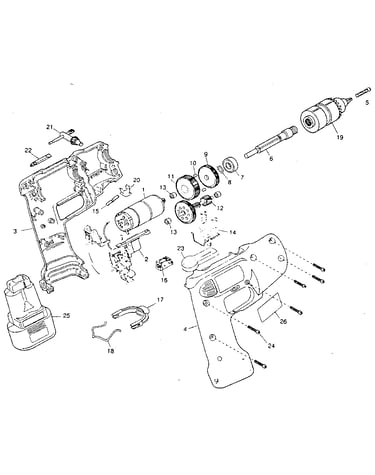

Unit parts diagram

Spring

Part #144501-00

The manufacturer no longer makes this part, and there's no substitute part

Retaining Ring 700533-00
#8

Unit parts diagram

Retaining ring

Part #700533-00

The manufacturer no longer makes this part, and there's no substitute part

Shifter Spring 144658-00
#15

Unit parts diagram

Shifter spring

Part #144658-00

The manufacturer no longer makes this part, and there's no substitute part

Bearing 450311-00
#13

Unit parts diagram

Bearing

Part #450311-00

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Bearing 330003-08
#7

Unit parts diagram

Power tool bearing

Part #330003-08

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Motor 144503-01
#1

Unit parts diagram

Black & decker motor

Part #144503-01

The manufacturer no longer makes this part, and there's no substitute part

Drill Level 143845-00
#16

Unit parts diagram

Drill level

Part #143845-00

The manufacturer no longer makes this part, and there's no substitute part

Bit 143912-00
#22

Unit parts diagram

Bit

Part #143912-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 330013-04
#24

Unit parts diagram

Screw

Part #330013-04

The manufacturer no longer makes this part, and there's no substitute part

Spindle 450839-00
#6

Unit parts diagram

Spindle

Part #450839-00

The manufacturer no longer makes this part, and there's no substitute part
