Part #WH11X29539
Part #WH22X32059
Replaced by #WH22X35837
Part #WH01X29528
Part #WH03X29524
Part #WH03X29522
Part #WH03X29516
Part #WH03X33657
Part #WH05X29521
Part #WH22X32060
Replaced by #WH22X34917
Part #WH01X30057

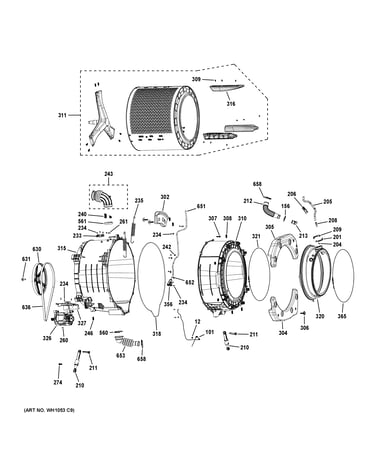

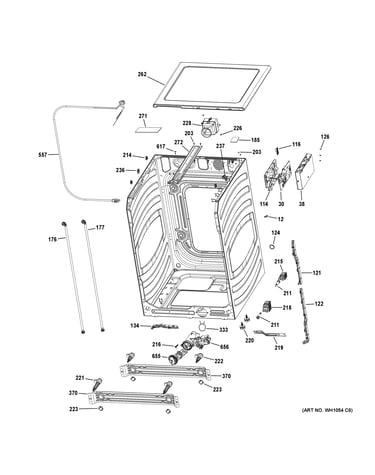

Here are the diagrams and repair parts for Official GE GFW510SCN1WW washer, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.
Part #WH11X29539
Part #WH22X32059
Replaced by #WH22X35837
Part #WH01X29528
Part #WH03X29524
Part #WH03X29522
Part #WH03X29516
Part #WH03X33657
Part #WH05X29521
Part #WH22X32060
Replaced by #WH22X34917
Part #WH01X30057
Choose a symptom to see related washer repairs.
Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control b…
Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspensio…
Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve a…
Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system…
Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in…
Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lo…
Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interf…
Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board…
Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water tem…
