Model # KD55F Official Kelvinator garbage disposal - lk33388020

Here are the diagrams and repair parts for Official Kelvinator KD55F garbage disposal - lk33388020, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 34 parts  |
Spring-brush (2) 3014106
#27

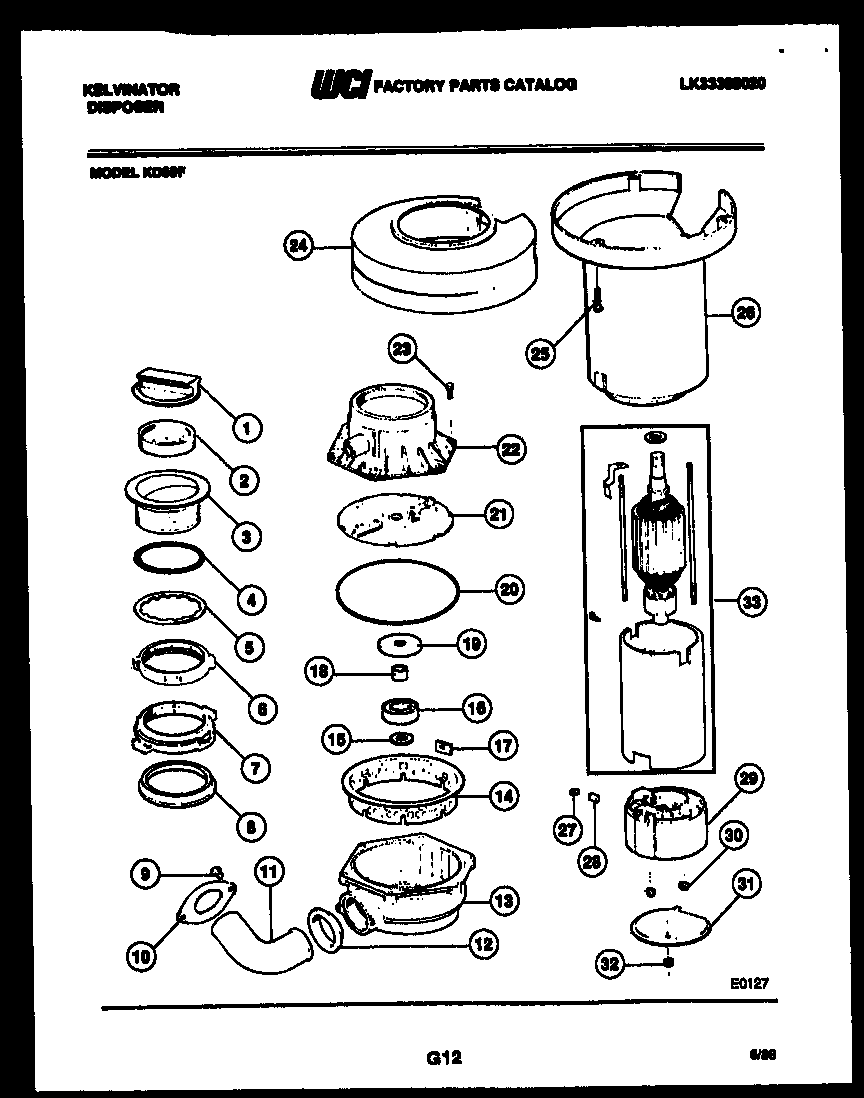

Body parts diagram

Spring-brush (2)

Part #3014106

The manufacturer no longer makes this part, and there's no substitute part

Spacer-seal # 3011604
#18

Body parts diagram

Spacer-seal #

Part #3011604

The manufacturer no longer makes this part, and there's no substitute part

Support Ring 3013801
#6

Body parts diagram

Support ring

Part #3013801

The manufacturer no longer makes this part, and there's no substitute part

Shell-upper Black 3014669
#24

Body parts diagram

Shell-upper black

Part #3014669

The manufacturer no longer makes this part, and there's no substitute part

Cushing Ring 3013260
#8

Body parts diagram

Cushing ring

Part #3013260

The manufacturer no longer makes this part, and there's no substitute part

Shell-lower Gray 3015629
#26

Body parts diagram

Shell-lower gray

Part #3015629

The manufacturer no longer makes this part, and there's no substitute part

Hopper 3012863
#22

Body parts diagram

Hopper

Part #3012863

The manufacturer no longer makes this part, and there's no substitute part

Grid Ring 3013803
#14

Body parts diagram

Grid ring

Part #3013803

The manufacturer no longer makes this part, and there's no substitute part

Slinger 3014603
#19

Body parts diagram

Slinger

Part #3014603

The manufacturer no longer makes this part, and there's no substitute part

Gasket Flange Wax 3012631
#5

Body parts diagram

Gasket flange wax

Part #3012631

The manufacturer no longer makes this part, and there's no substitute part
