Model # 6073DW Official Makita cordless drill/driver

Here are the diagrams and repair parts for Official Makita 6073DW cordless drill/driver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |
Needle Gauge 216401-4
#35

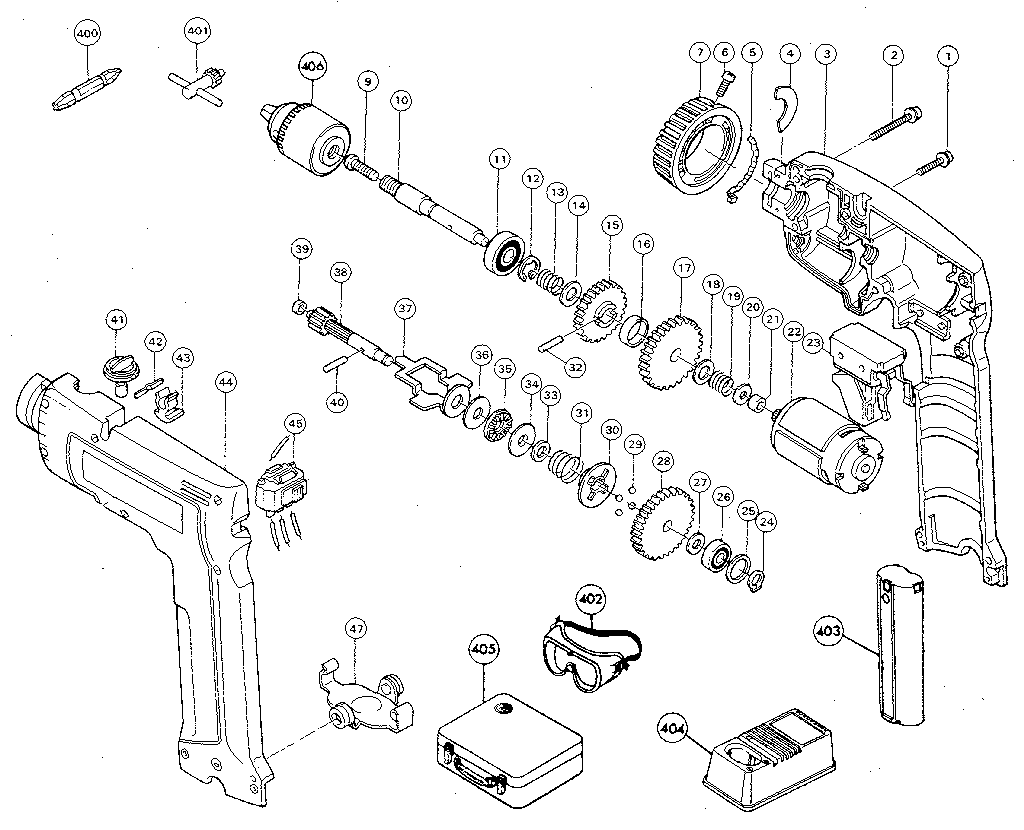

Unit parts diagram

Needle gauge

Part #216401-4

The manufacturer no longer makes this part, and there's no substitute part

Gear Complet 226062-2
#38

Unit parts diagram

Gear complet

Part #226062-2

The manufacturer no longer makes this part, and there's no substitute part

Guide Plate 343421-6
#4

Unit parts diagram

Guide plate

Part #343421-6

The manufacturer no longer makes this part, and there's no substitute part

Bearing 214019-5
#39

Unit parts diagram

Bearing

Part #214019-5

The manufacturer no longer makes this part, and there's no substitute part

Washer 253330-0
Washer

Part #253330-0

The manufacturer no longer makes this part, and there's no substitute part

Leaf Spring 232053-3
#42

Unit parts diagram

Leaf spring

Part #232053-3

The manufacturer no longer makes this part, and there's no substitute part

Swtch Varabl 651343-9
#23

Unit parts diagram

Swtch varabl

Part #651343-9

The manufacturer no longer makes this part, and there's no substitute part

Clutch Cam 223059-2
#30

Unit parts diagram

Clutch cam

Part #223059-2

The manufacturer no longer makes this part, and there's no substitute part

Compr Spring 231927-5
#31

Unit parts diagram

Compr spring

Part #231927-5

The manufacturer no longer makes this part, and there's no substitute part

Screw 251448-1
#9

Unit parts diagram

Screw

Part #251448-1

The manufacturer no longer makes this part, and there's no substitute part
