Model # DCR-TRV8 Official Sony digital camcorder

Here are the diagrams and repair parts for Official Sony DCR-TRV8 digital camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

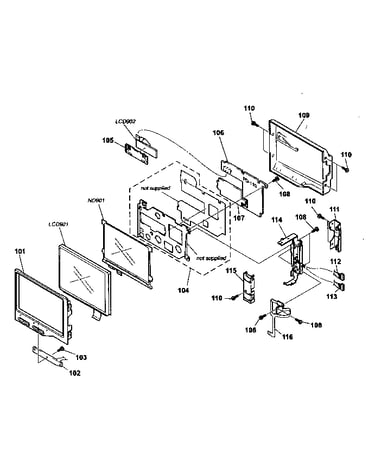

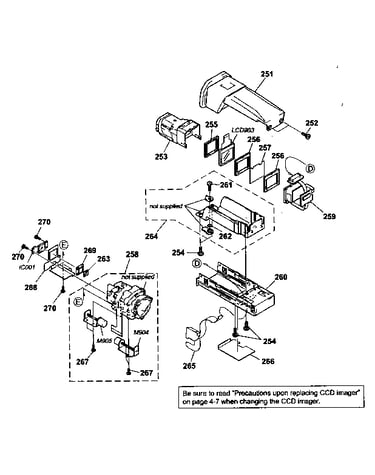

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 165 parts  |
Integrated Circuit 875958027
#NI

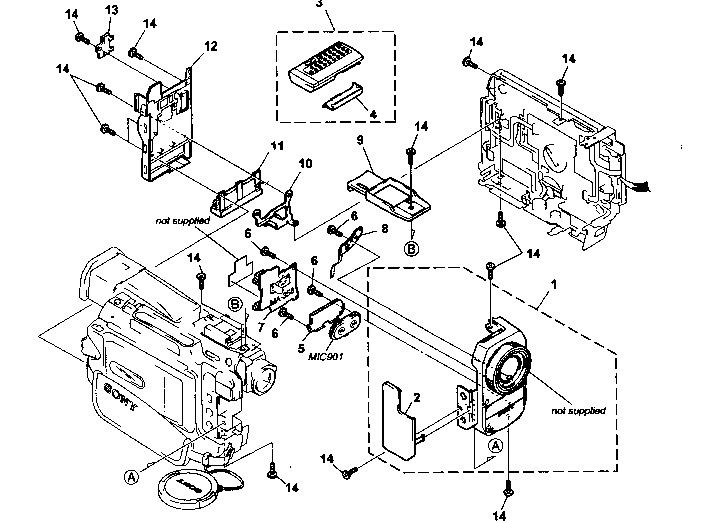

Front panel assy diagram

Integrated circuit

Part #875958027

The manufacturer no longer makes this part, and there's no substitute part

Connector 178524721
#206

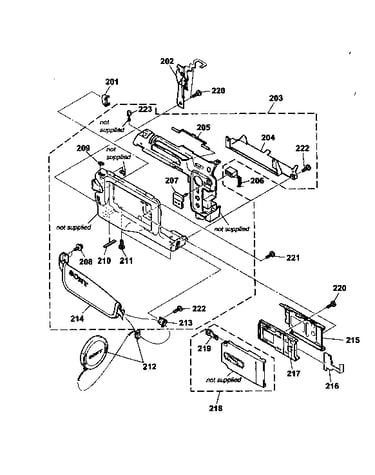

Cabinet parts l diagram

Connector

Part #178524721

The manufacturer no longer makes this part, and there's no substitute part

Pcb A7073967A
#165

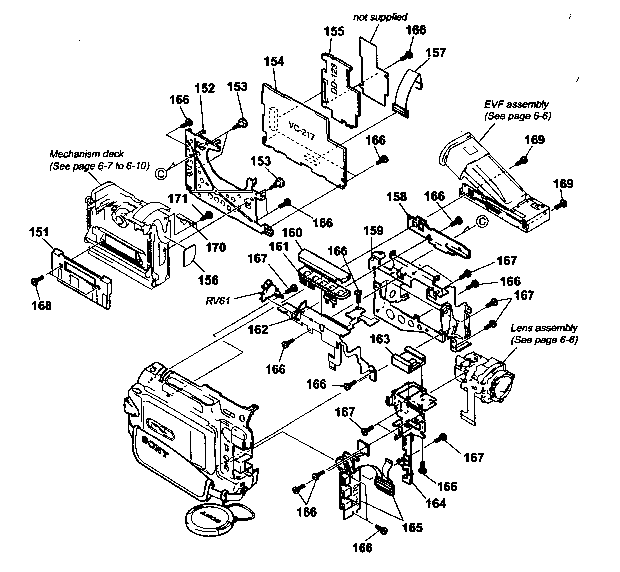

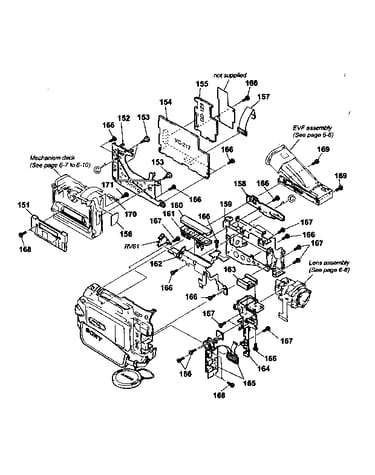

Chassis assy diagram

Pcb

Part #A7073967A

The manufacturer no longer makes this part, and there's no substitute part

Battery 152872421
#NI

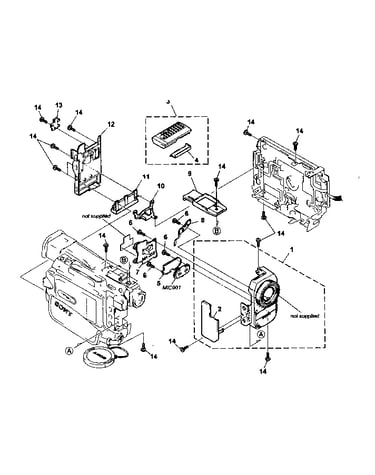

Front panel assy diagram

Battery

Part #152872421

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit 875953543
#NI

Front panel assy diagram

Integrated circuit

Part #875953543

The manufacturer no longer makes this part, and there's no substitute part

Gooseneck X39471501
#NI

Front panel assy diagram

Gooseneck

Part #X39471501

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit 875953382
#NI

Front panel assy diagram

Integrated circuit

Part #875953382

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit 875958435
#NI

Front panel assy diagram

Integrated circuit

Part #875958435

The manufacturer no longer makes this part, and there's no substitute part

Cabinet R X39496761
#58

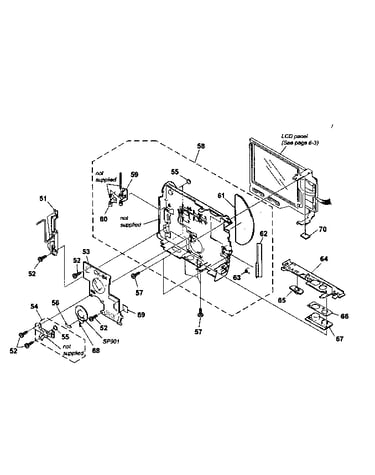

Cabinet parts r diagram

Cabinet r

Part #X39496761

The manufacturer no longer makes this part, and there's no substitute part

Gl Block A7026002A
#NI

Front panel assy diagram

Gl block

Part #A7026002A

The manufacturer no longer makes this part, and there's no substitute part
