Model # P3URD20N11201A Official York upflow gas furnace

Here are the diagrams and repair parts for Official York P3URD20N11201A upflow gas furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

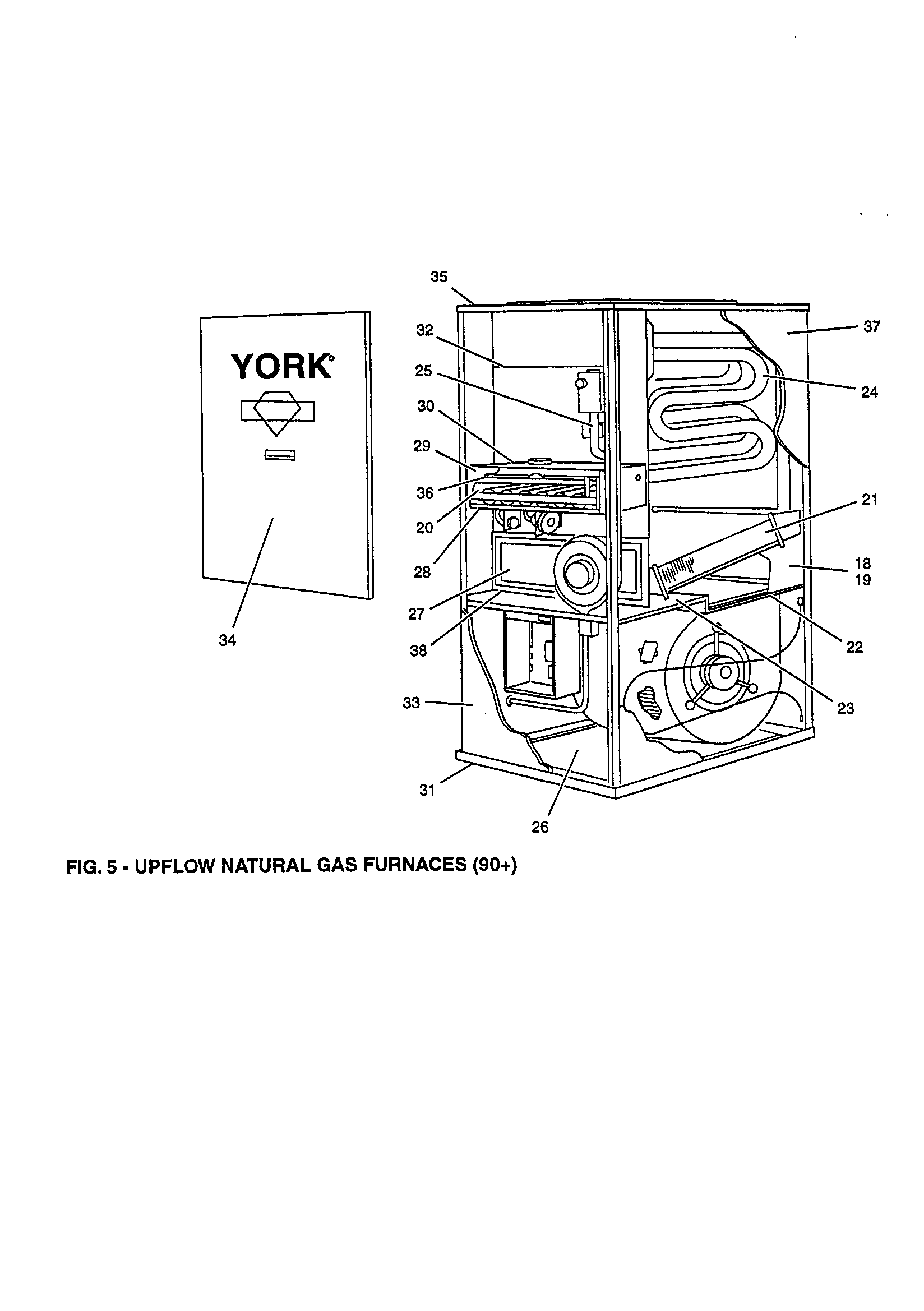

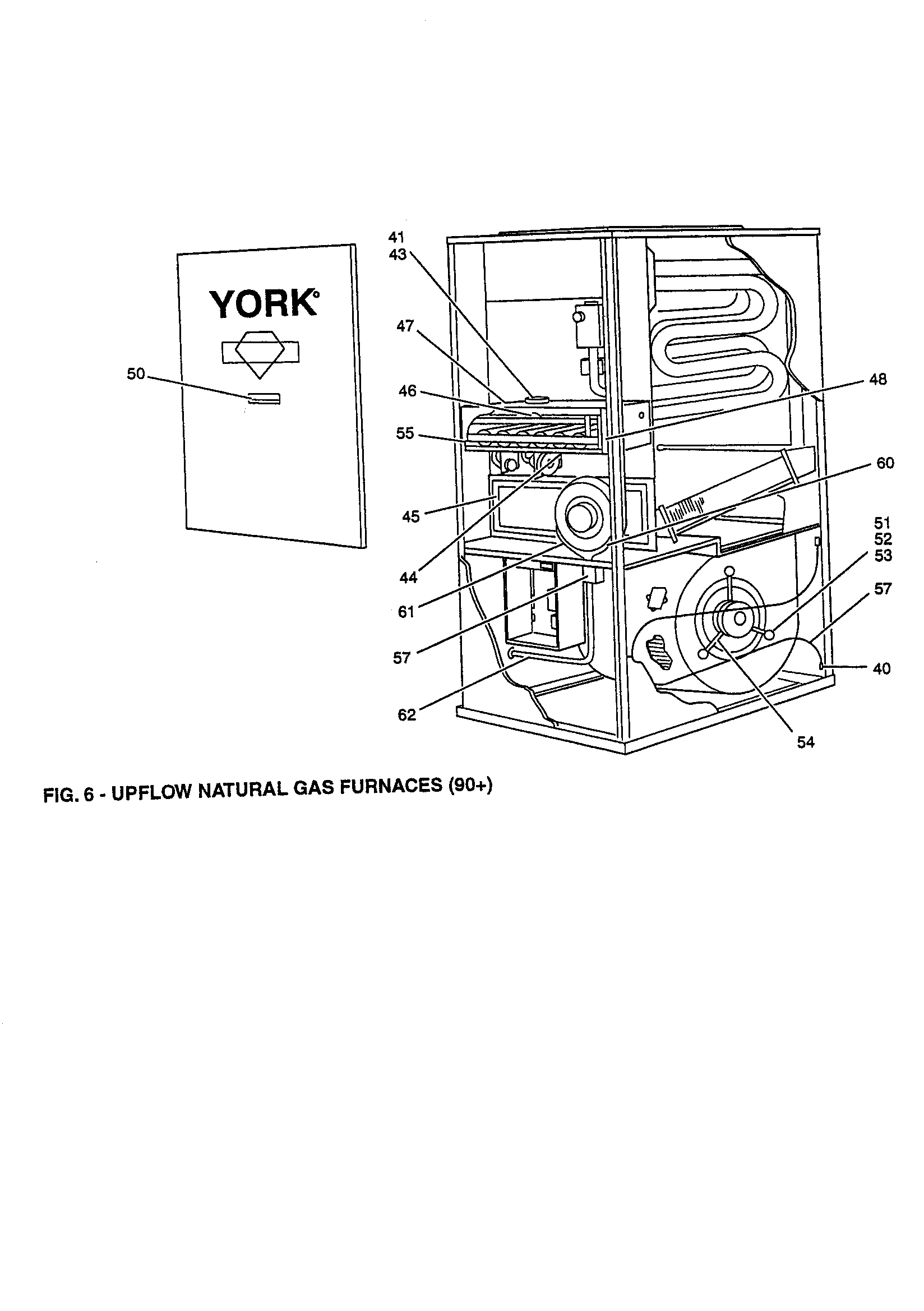

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 80 parts  |
Furnace Burner Flame Sensor 025-30788-700

#9

All parts diagram

Furnace burner flame sensor

Part #025-30788-700

The manufacturer no longer makes this part, and there's no substitute part

Kero-sun Furnace Burner 029-20482-000

#20

All parts diagram

Kero-sun furnace burner

Part #029-20482-000

The manufacturer no longer makes this part, and there's no substitute part

Furnace Temperature Limit Switch 025-29041-002

#5

All parts diagram

Furnace temperature limit switch

Part #025-29041-002

The manufacturer no longer makes this part, and there's no substitute part

Gasket 028-11647-000

#46

All parts diagram

Gasket

Part #028-11647-000

$18.00
In Stock
Gasket, Burner Box To Vest Panel 028-12458-004

#45

All parts diagram

Gasket, burner box to vest panel

Part #028-12458-004

The manufacturer no longer makes this part, and there's no substitute part

Panel, Burner Box (bottom) 073-20824-000

#28A

All parts diagram

Panel, burner box (bottom)

Part #073-20824-000

The manufacturer no longer makes this part, and there's no substitute part

Furnace Blower Housing 373-06239-700

#16

All parts diagram

Furnace blower housing

Part #373-06239-700

The manufacturer no longer makes this part, and there's no substitute part

Hose, Inducer Drain 028-12463-002

#60

All parts diagram

Hose, inducer drain

Part #028-12463-002

The manufacturer no longer makes this part, and there's no substitute part

Gas Valve 025-31969-000

#14

All parts diagram

Gas valve

Part #025-31969-000

The manufacturer no longer makes this part, and there's no substitute part

Coil, Secondary Heat Exchanger 373-18279-005

#21A

All parts diagram

Coil, secondary heat exchanger

Part #373-18279-005

The manufacturer no longer makes this part, and there's no substitute part
