Model # 62718 Official Tractor Accessories hose reel

Here are the diagrams and repair parts for Official Tractor Accessories 62718 hose reel, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 10 parts  |
Tractor Accessories Lawn & Garden Equipment Washer 1543-69
#5

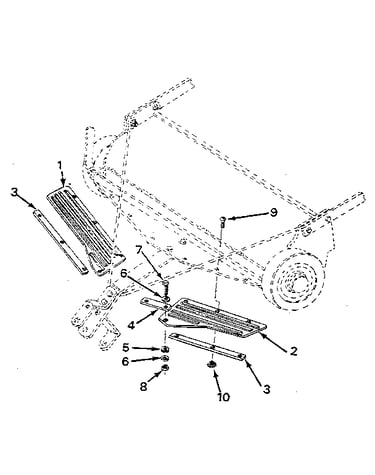

Hitch shield kit diagram

Tractor accessories lawn & garden equipment washer

Part #1543-69

This item is not returnable
$2.16
Back Order
Tractor Accessories Lawn & Garden Equipment Nut 43662
#10

Hitch shield kit diagram

Tractor accessories lawn & garden equipment nut

Part #43662

This item is not returnable
$2.16
In Stock
Tractor Accessories Lawn Tractor Attachment Flat Washer, 1/4-in 43088
#6

Hitch shield kit diagram

Tractor accessories lawn tractor attachment flat washer, 1/4-in

Part #43088

This item is not returnable
$2.16
Back Order
Shield Retainer 23597
#3

Hitch shield kit diagram

Shield retainer

Part #23597

The manufacturer no longer makes this part, and there's no substitute part

Hex Bolt 1/4-20 X 3/4" Lg. 43012
#7

Hitch shield kit diagram

Hex bolt 1/4-20 x 3/4" lg.

Part #43012

The manufacturer no longer makes this part, and there's no substitute part

Hex Lock Nut 1/4-20 Thd. 43013
#8

Hitch shield kit diagram

Hex lock nut 1/4-20 thd.

Part #43013

The manufacturer no longer makes this part, and there's no substitute part

Slot Truss Hd. Scr. #10-32 X 5/8" Lg. 43346
#9

Hitch shield kit diagram

Slot truss hd. scr. #10-32 x 5/8" lg.

Part #43346

The manufacturer no longer makes this part, and there's no substitute part

Connect Flap 43941
#4

Hitch shield kit diagram

Connect flap

Part #43941

The manufacturer no longer makes this part, and there's no substitute part

Hitch Shield-l.h. 43939
#2

Hitch shield kit diagram

Hitch shield-l.h.

Part #43939

The manufacturer no longer makes this part, and there's no substitute part

Hitch Shield-r.h. 43940
#1

Hitch shield kit diagram

Hitch shield-r.h.

Part #43940

The manufacturer no longer makes this part, and there's no substitute part
