Model # OBR900SS Official Edgestar wine cooler

Here are the diagrams and repair parts for Official Edgestar OBR900SS wine cooler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 32 parts  |
Edgestar Display 1864805803
#3

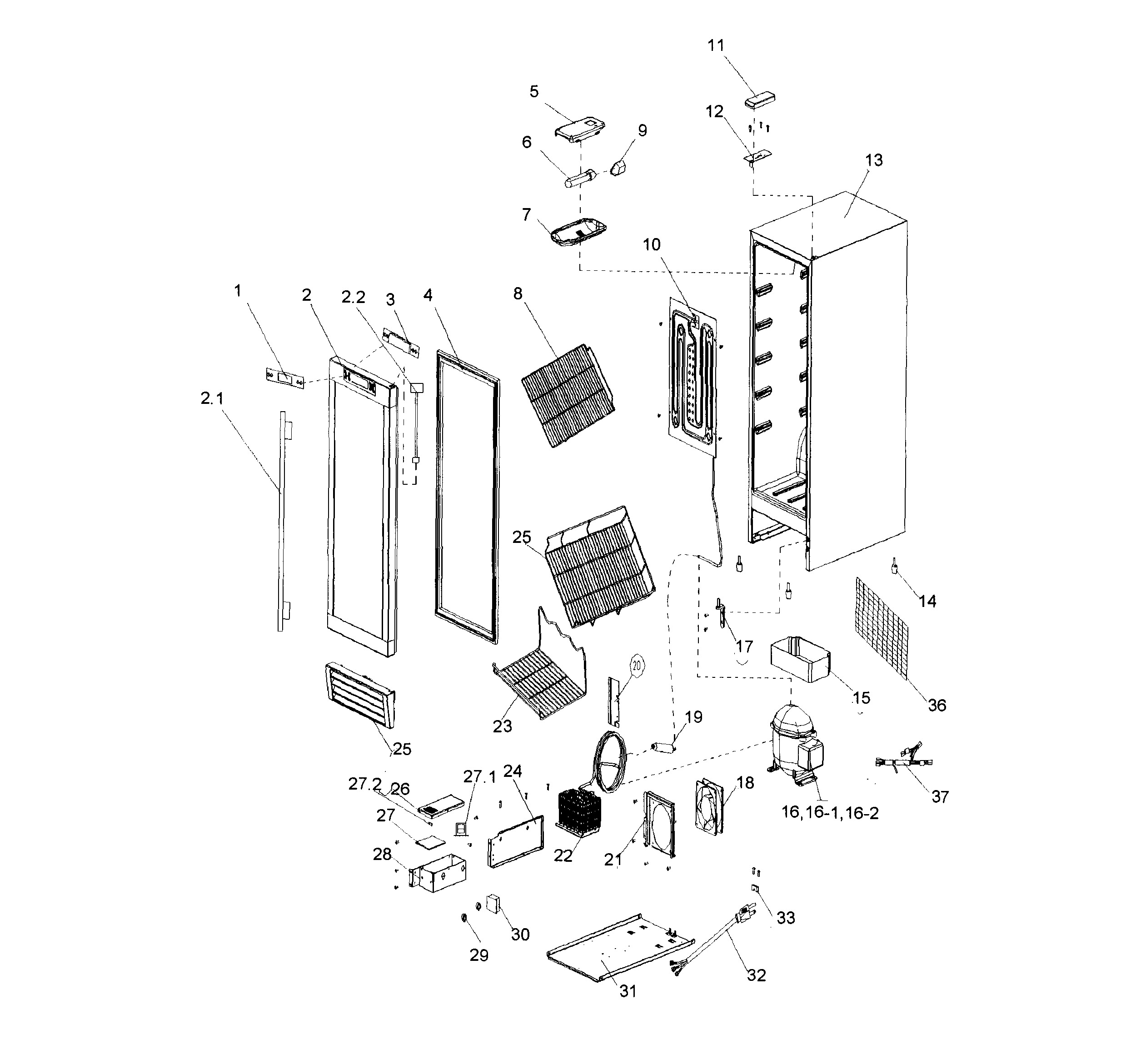

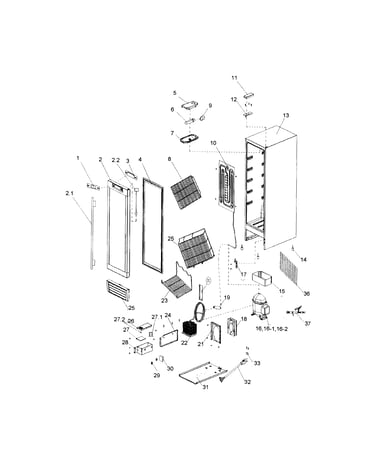

Cooler assy diagram

Edgestar display

Part #1864805803

The manufacturer no longer makes this part, and there's no substitute part

Edgestar Owner's Manual OM-OBR900SS
#NI

Cooler assy diagram

Edgestar owner's manual

Part #OM-OBR900SS

The manufacturer no longer makes this part, and there's no substitute part

Overload 1858450900
#16-2

Cooler assy diagram

Overload

Part #1858450900

The manufacturer no longer makes this part, and there's no substitute part

Evaporator 1880026201
#10

Cooler assy diagram

Evaporator

Part #1880026201

The manufacturer no longer makes this part, and there's no substitute part

Door 1842001004
#2

Cooler assy diagram

Door

Part #1842001004

The manufacturer no longer makes this part, and there's no substitute part

Condenser 1880013702
#22

Cooler assy diagram

Condenser

Part #1880013702

The manufacturer no longer makes this part, and there's no substitute part

Foot 1864620000
#14

Cooler assy diagram

Foot

Part #1864620000

The manufacturer no longer makes this part, and there's no substitute part

Wiring Harness-temp Display 1853106000
#2-2

Cooler assy diagram

Wiring harness-temp display

Part #1853106000

The manufacturer no longer makes this part, and there's no substitute part

Lampshade 1849735400
#7

Cooler assy diagram

Lampshade

Part #1849735400

The manufacturer no longer makes this part, and there's no substitute part

Back Grid 1861751100
#36

Cooler assy diagram

Back grid

Part #1861751100

The manufacturer no longer makes this part, and there's no substitute part
