Weatherking
Central Air Conditioner

Model # SFHR-10-423A Official Weatherking remote heat pump

Here are the diagrams and repair parts for Official Weatherking SFHR-10-423A remote heat pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

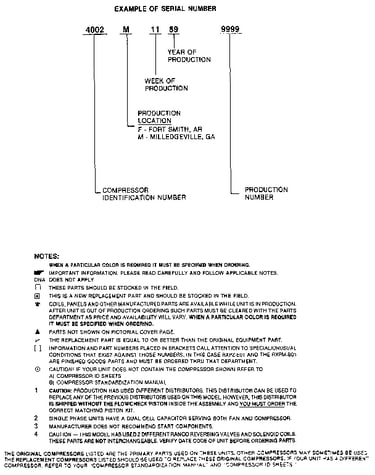

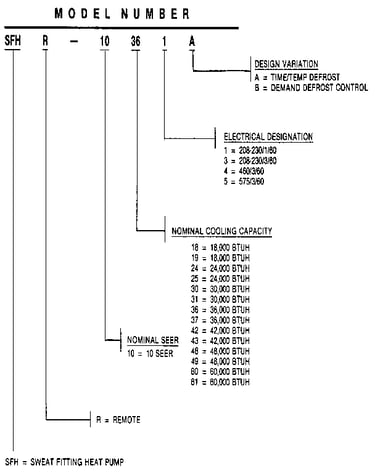

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |
Adptr Fittg 83-21457-03

#NI

All parts diagram

Adptr fittg

Part #83-21457-03

$41.89
In Stock
Service Valve 61-21368-07
#19

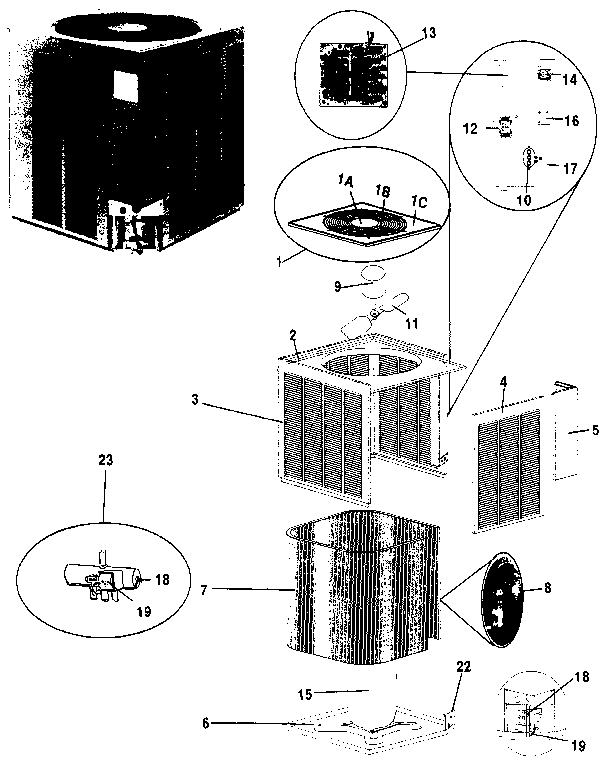

Replacement parts diagram

Service valve

Part #61-21368-07

$110.97
In Stock
Central Air Conditioner Condenser Fan Motor 51-23053-11
#9A

Replacement parts diagram

Central air conditioner condenser fan motor

Part #51-23053-11

$308.30
In Stock
Revers Valve 61-18573-01
#20B

Replacement parts diagram

Revers valve

Part #61-18573-01

Replaced by #61-101684-92

?
Manufacturer substitution
This part replaces 61-18573-01. Substitute parts can look different from the original.
$293.29
In Stock
Adptr Fittg 83-21457-02

#NI

All parts diagram

Adptr fittg

Part #83-21457-02

Replaced by #83-CD9640-1PK

?
Manufacturer substitution
This part replaces 83-21457-02. Substitute parts can look different from the original.
$31.20
In Stock
Switch 47-21604-01
#12A

Replacement parts diagram

Switch

Part #47-21604-01

Replaced by #47-21604-03

?
Manufacturer substitution
This part replaces 47-21604-01. Substitute parts can look different from the original.
$51.76
In Stock
Relay 42-19423-04

#NI

All parts diagram

Relay

Part #42-19423-04

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 43-20847-04
#10

Replacement parts diagram

Capacitor

Part #43-20847-04

Replaced by #12005

?
Manufacturer substitution
This part replaces 43-20847-04. Substitute parts can look different from the original.
$16.49 |
11% OFF Phone Price : $18.49
In Stock
Rvrsng Valve 61-22880-82
#23

Replacement parts diagram

Rvrsng valve

Part #61-22880-82

Replaced by #61-101684-92

?
Manufacturer substitution
This part replaces 61-22880-82. Substitute parts can look different from the original.
$293.29
In Stock
Dfrst Cntrl 47-21776-06
#13

Replacement parts diagram

Dfrst cntrl

Part #47-21776-06

Replaced by #47-21776-86

?
Manufacturer substitution
This part replaces 47-21776-06. Substitute parts can look different from the original.
$158.76
In Stock
