York
Central Air Conditioner

Model # B1HH060A58 Official York heat pump

Here are the diagrams and repair parts for Official York B1HH060A58 heat pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

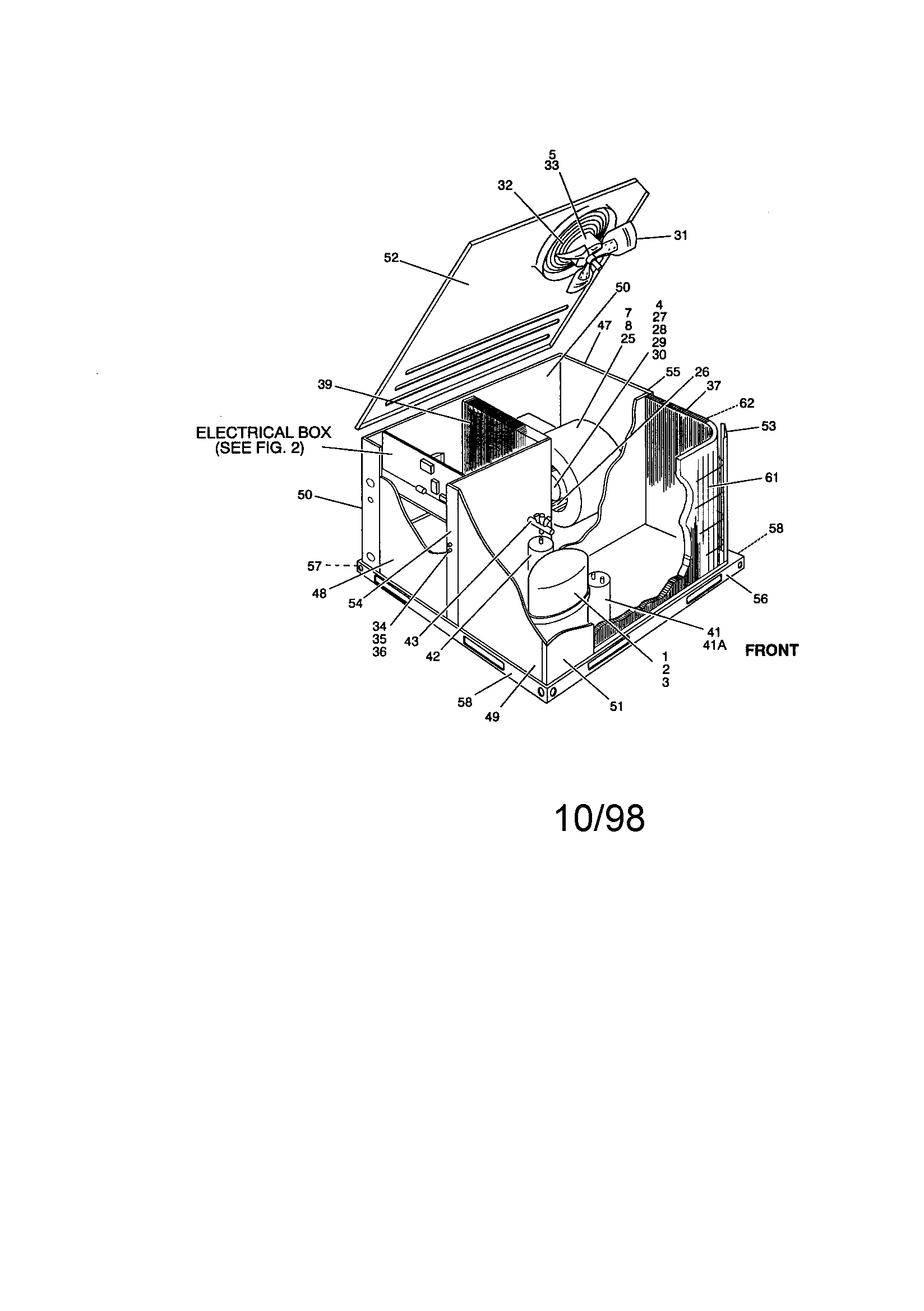

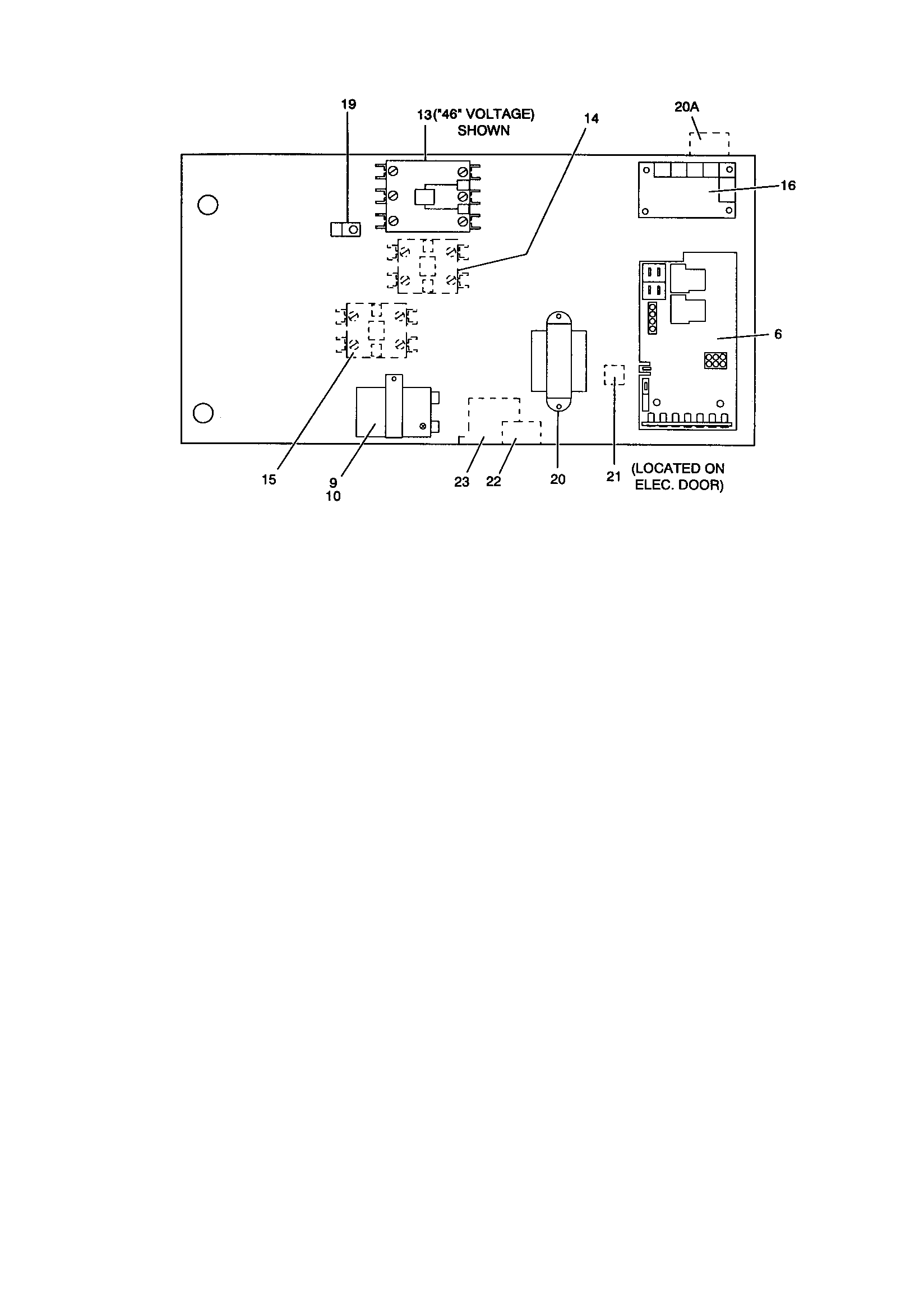

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 85 parts  |
Central Air Conditioner Electronic Control Board 031-01264-002

#6

All parts diagram

Central air conditioner electronic control board

Part #031-01264-002

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 024-20043-000
Capacitor

Part #024-20043-000

Replaced by #12005

?
Manufacturer substitution
This part replaces 024-20043-000. Substitute parts can look different from the original.
$16.49 |
11% OFF Phone Price : $18.49
In Stock
Panel, Access (compressor) 073-16330-002

#49

All parts diagram

Panel, access (compressor)

Part #073-16330-002

The manufacturer no longer makes this part, and there's no substitute part

Accessories- Non-electrical: Round Adapter Kit 14" Round 1AK0107

#NI

All parts diagram

Accessories- non-electrical: round adapter kit 14" round

Part #1AK0107

The manufacturer no longer makes this part, and there's no substitute part

Accessories--electrical: Electric Heater (10kw) 575-3-60 (see Note 3) 2NH04501058

#NI

All parts diagram

Accessories--electrical: electric heater (10kw) 575-3-60 (see note 3)

Part #2NH04501058

The manufacturer no longer makes this part, and there's no substitute part

Anti-short Cycle Timer (electrical) (replacement Parts Lists Available.) 2TD08700324

#NI

All parts diagram

Anti-short cycle timer (electrical) (replacement parts lists available.)

Part #2TD08700324

The manufacturer no longer makes this part, and there's no substitute part

Washer 028-09412-002

#29

All parts diagram

Washer

Part #028-09412-002

The manufacturer no longer makes this part, and there's no substitute part

Compressor, Hermatic (scroll) 015-02692-004

#1

All parts diagram

Compressor, hermatic (scroll)

Part #015-02692-004

The manufacturer no longer makes this part, and there's no substitute part

Cover, Plastic Header (top) 032-00179-000

#44A

All parts diagram

Cover, plastic header (top)

Part #032-00179-000

The manufacturer no longer makes this part, and there's no substitute part

Plug, Plastic (drain Pan) 028-08567-000

#65

All parts diagram

Plug, plastic (drain pan)

Part #028-08567-000

The manufacturer no longer makes this part, and there's no substitute part
