Model # S2105-180 Official Hoover upright vacuum

Here are the diagrams and repair parts for Official Hoover S2105-180 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 63 parts  |

Shaft 93001447
#28

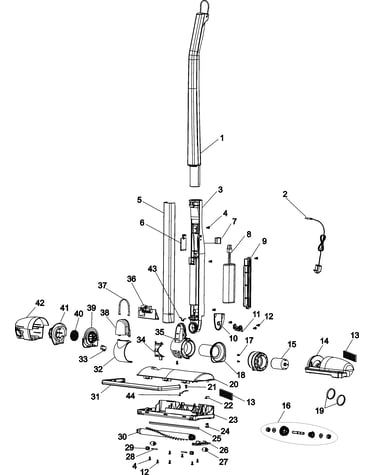

Complete assembly of s2105--- diagram

Shaft

Part #93001447

The manufacturer no longer makes this part, and there's no substitute part

Stopper Belt 93001464
#37

Complete assembly of s2105--- diagram

Stopper belt

Part #93001464

The manufacturer no longer makes this part, and there's no substitute part

Handle Assembly 93001477
#1

Complete assembly of s2105--- diagram

Handle assembly

Part #93001477

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar Belt 93001454
#19

Complete assembly of s2105--- diagram

Vacuum beater bar belt

Part #93001454

The manufacturer no longer makes this part, and there's no substitute part

Jack,dc 93001497
#9

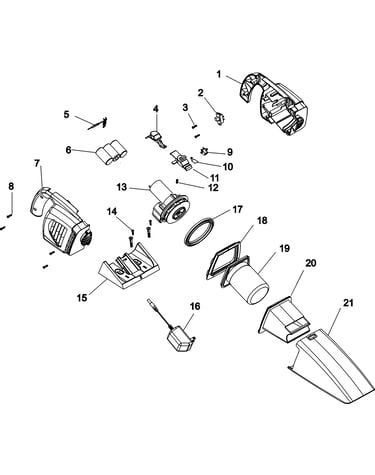

Complete assembly of s1120--- diagram

Jack,dc

Part #93001497

The manufacturer no longer makes this part, and there's no substitute part

Rocker Piece 93001449
#24

Complete assembly of s2105--- diagram

Rocker piece

Part #93001449

The manufacturer no longer makes this part, and there's no substitute part

Rear Shaft 93001448
#27A

Complete assembly of s2105--- diagram

Rear shaft

Part #93001448

The manufacturer no longer makes this part, and there's no substitute part

Screw 93001486
#17

Complete assembly of s2105--- diagram

Screw

Part #93001486

The manufacturer no longer makes this part, and there's no substitute part

Fan Casing 93001466
#18

Complete assembly of s2105--- diagram

Fan casing

Part #93001466

The manufacturer no longer makes this part, and there's no substitute part

Inlet Filter 93001481
#40

Complete assembly of s2105--- diagram

Inlet filter

Part #93001481

The manufacturer no longer makes this part, and there's no substitute part
