Model # NDN6050FBA1 Official ICP gas furnace

Here are the diagrams and repair parts for Official ICP NDN6050FBA1 gas furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |
Furnace Pilot Igniter And Sensor (replaces B14010-11s, Q3400a1040) 1009524
#28

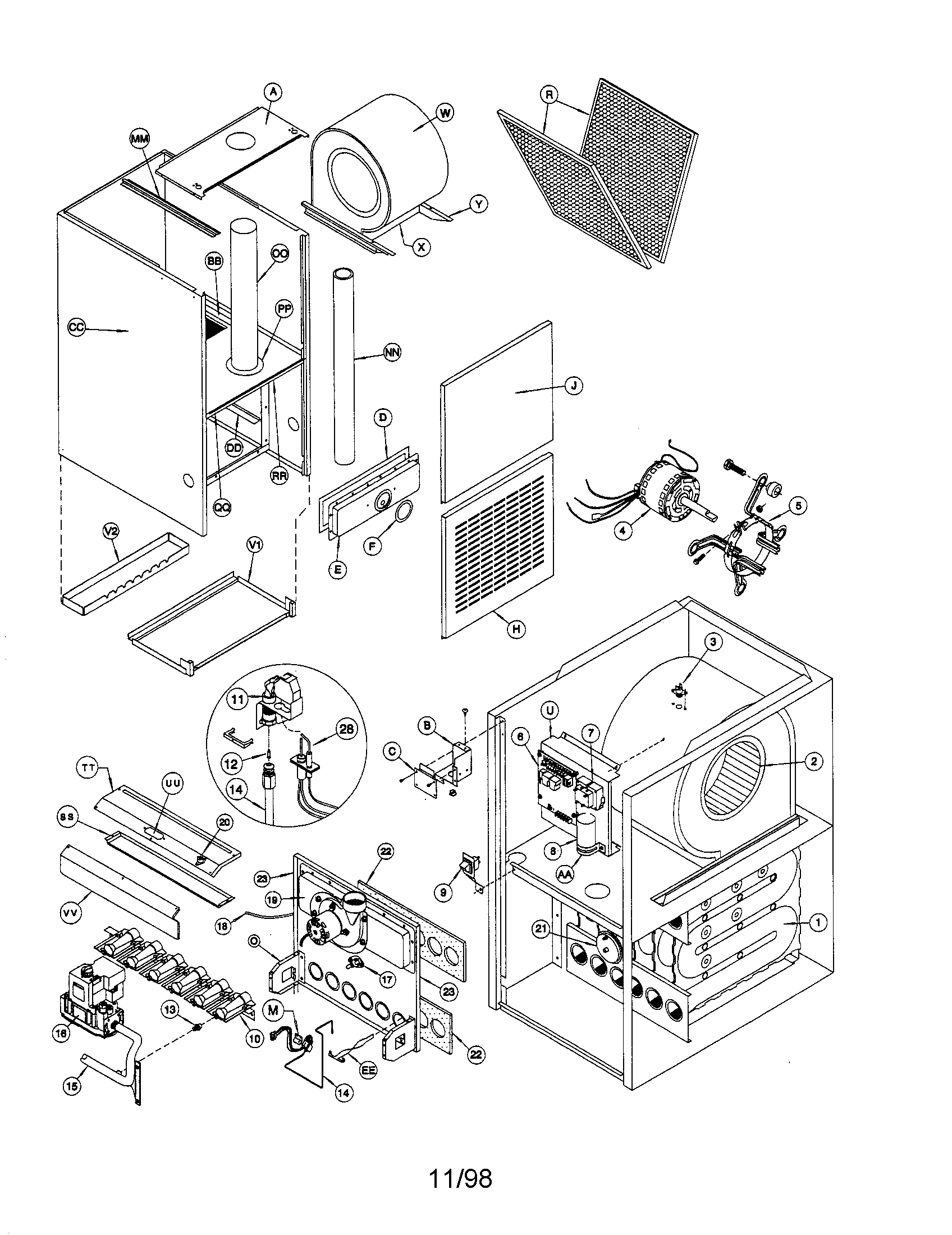

Replacement parts diagram

Furnace pilot igniter and sensor (replaces b14010-11s, q3400a1040)

Part #1009524

$166.19 |
7% OFF Phone Price : $178.19
In Stock
Cont Fan Tmr 1009838
#6

Replacement parts diagram

Cont fan tmr

Part #1009838

Replaced by #1170063

?
Manufacturer substitution
This part replaces 1009838. Substitute parts can look different from the original.
$220.46 |
5% OFF Phone Price : $232.46
In Stock
Furnace Blower Fan Wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, H600587) 600587
#2

Replacement parts diagram

Furnace blower fan wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, h600587)

Part #600587

$130.20 |
8% OFF Phone Price : $142.20
In Stock
Switch 1010897
#21

Replacement parts diagram

Switch

Part #1010897

Replaced by #1174276

?
Manufacturer substitution
This part replaces 1010897. Substitute parts can look different from the original.
$62.55 |
9% OFF Phone Price : $68.55
In Stock
Motor 1009054
#4

Replacement parts diagram

Motor

Part #1009054

Replaced by #1012514

?
Manufacturer substitution
This part replaces 1009054. Substitute parts can look different from the original.
$345.23 |
$12.00 OFF Phone Price : $357.23
In Stock
Sw Lmt T Ror 1320368
#3

Replacement parts diagram

Sw lmt t ror

Part #1320368

$92.47
In Stock
Clamp Capctr 1095020
#AA

Replacement parts diagram

Clamp capctr

Part #1095020

$100.98
In Stock
Furnace Burner 1009178
#10

Replacement parts diagram

Furnace burner

Part #1009178

$109.11
In Stock
Cover 1011469
#VV

Replacement parts diagram

Cover

Part #1011469

$158.56
In Stock
Furnace Blower Fan Motor Mounting Kit 609227
#5

Replacement parts diagram

Furnace blower fan motor mounting kit

Part #609227

$113.60
In Stock
