Model # CDE06RP2NDS1 Official GE refrigerator drawer

Here are the diagrams and repair parts for Official GE CDE06RP2NDS1 refrigerator drawer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

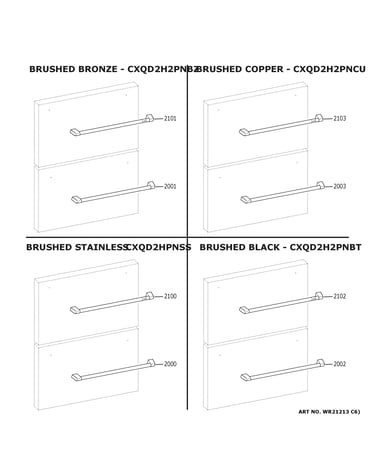

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 71 parts  |
Drier Filter WR87X33866
#8

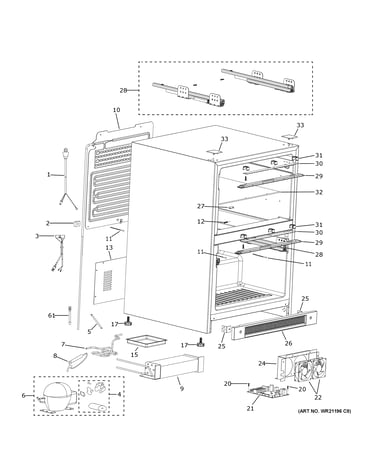

Cabinet diagram

Drier filter

Part #WR87X33866

Replaced by #WR87X30875

?
Manufacturer substitution
This part replaces WR87X33866. Substitute parts can look different from the original.
BEST SELLER
$56.29
In Stock
R600 Process WR87X30876
#61

Cabinet diagram

R600 process

Part #WR87X30876

BEST SELLER
$11.41 |
15% OFF Phone Price : $13.41
In Stock
Clpg5/16-1/4 WR97X10036
#7002

Lokring connectors diagram

Clpg5/16-1/4

Part #WR97X10036

$28.31
In Stock
Refrigerator R600a Refrigerant WR98X50
#7006

Lokring connectors diagram

Refrigerator r600a refrigerant

Part #WR98X50

$68.60
In Stock
Main Control Board WR55X32026
#21

Cabinet diagram

Main control board

Part #WR55X32026

$119.92
In Stock
Control Board WR55X32027
#55

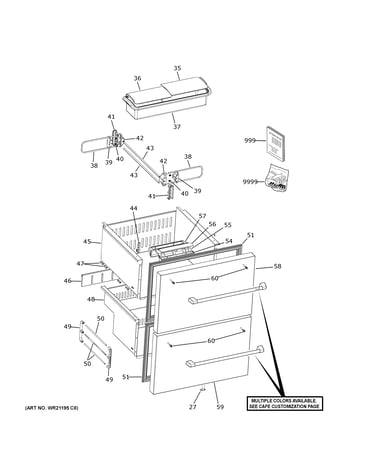

Doors & drawers diagram

Control board

Part #WR55X32027

$99.87
In Stock
Toe Kick Bra WR01X28277
#25

Cabinet diagram

Toe kick bra

Part #WR01X28277

This item is not returnable
$5.00
In Stock
Condenser Fan Bracket WR14X30059
#24

Cabinet diagram

Condenser fan bracket

Part #WR14X30059

$17.69 |
10% OFF Phone Price : $19.69
In Stock
Lower Crispe WR71X28271
#36

Doors & drawers diagram

Lower crispe

Part #WR71X28271

$23.40
In Stock
Partition St WR01X28278
#50

Doors & drawers diagram

Partition st

Part #WR01X28278

$24.25
In Stock
